Why Engineers Standardize on the BMXDDI1603
When a Modicon M340 or M580 rack needs to capture 24 V DC field signals reliably, the BMXDDI1603 from Schneider Electric is the module most integrators reach for first. As part of the Modicon X80 series, it delivers 16 discrete input channels in a single-width package, so you expand I/O capacity without sacrificing cabinet space. This module suits both new builds and drop-in replacements on an active platform that serves M340 and M580 controllers.
Key Parameters That Drive Real Decisions
Sixteen Channels in a Single-Width Slot

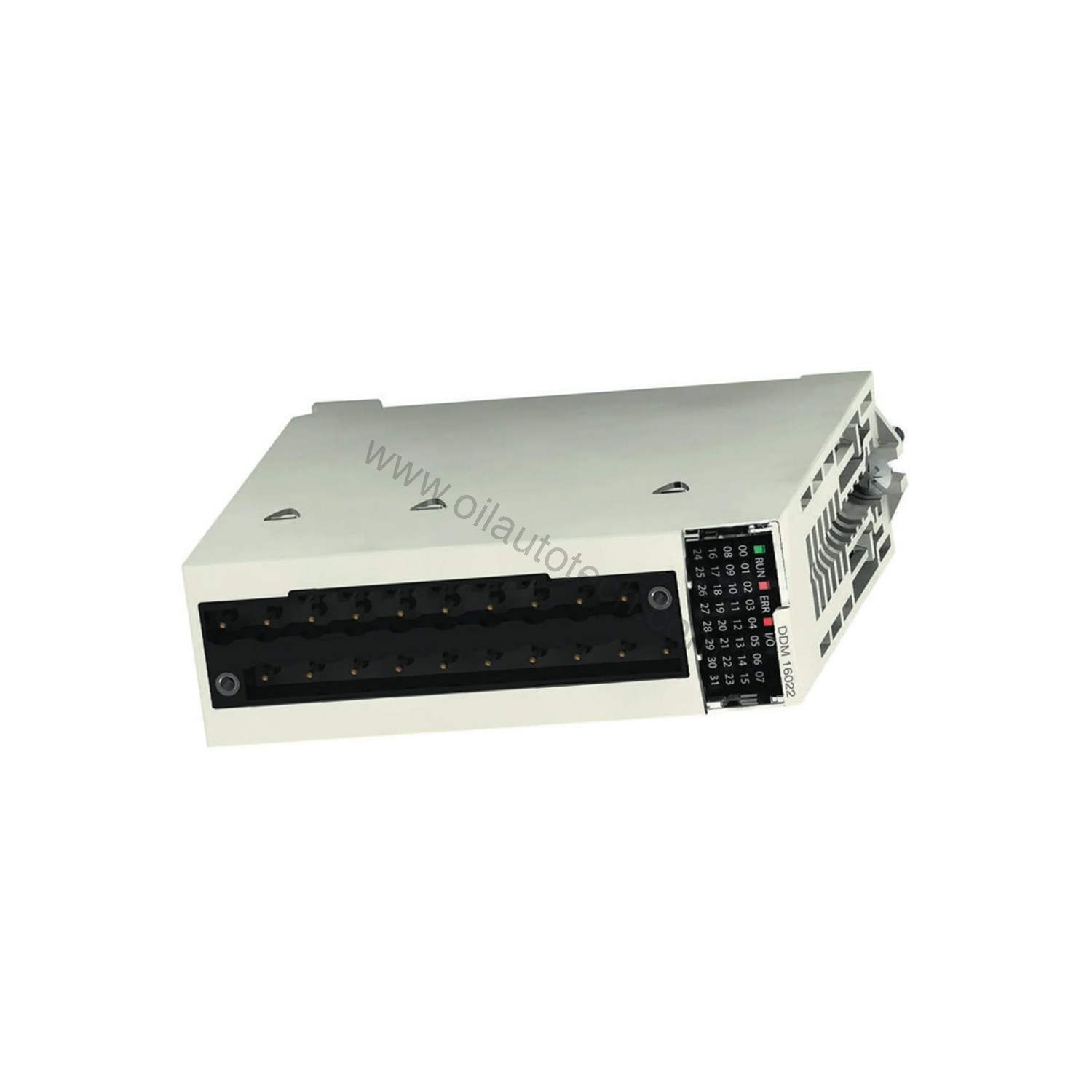

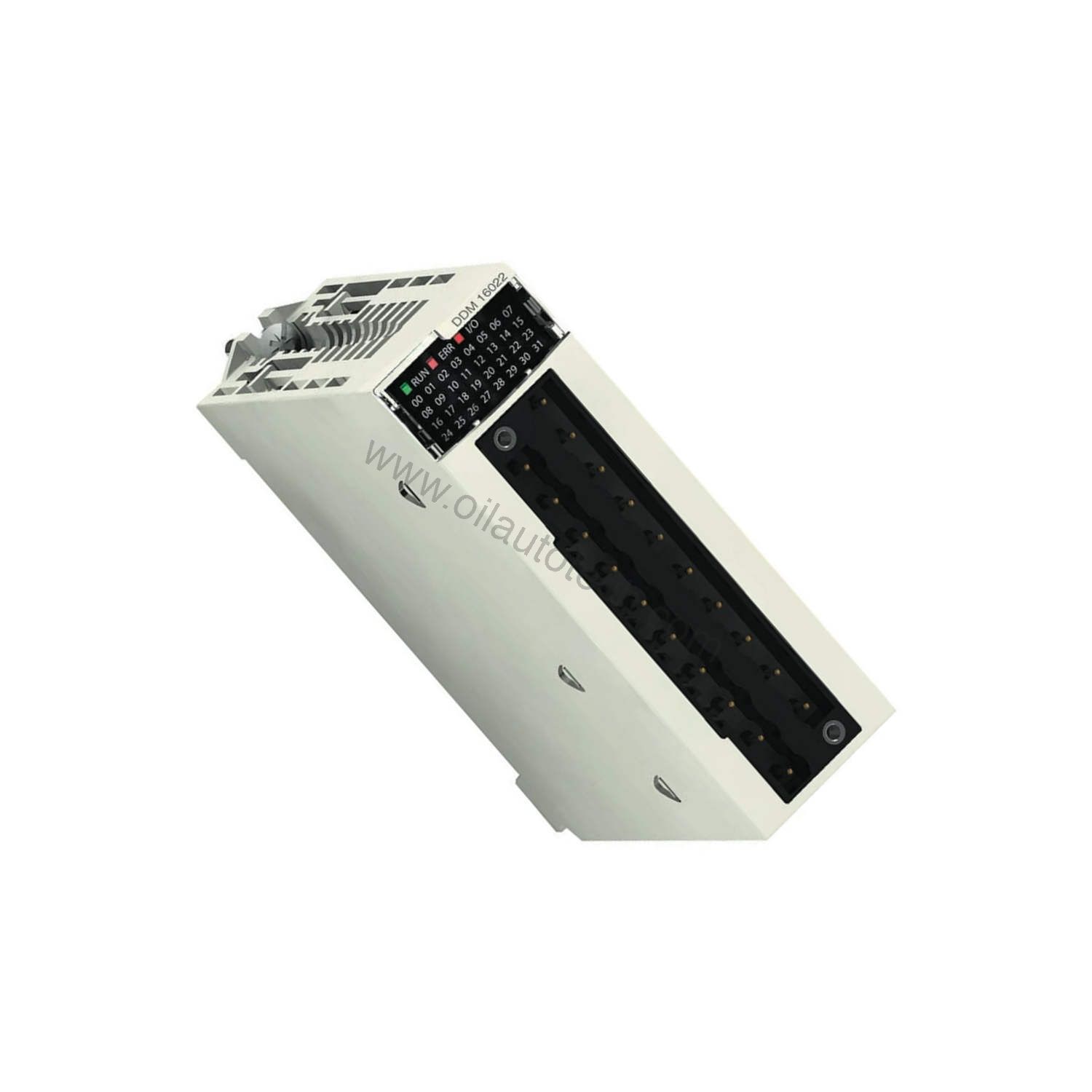

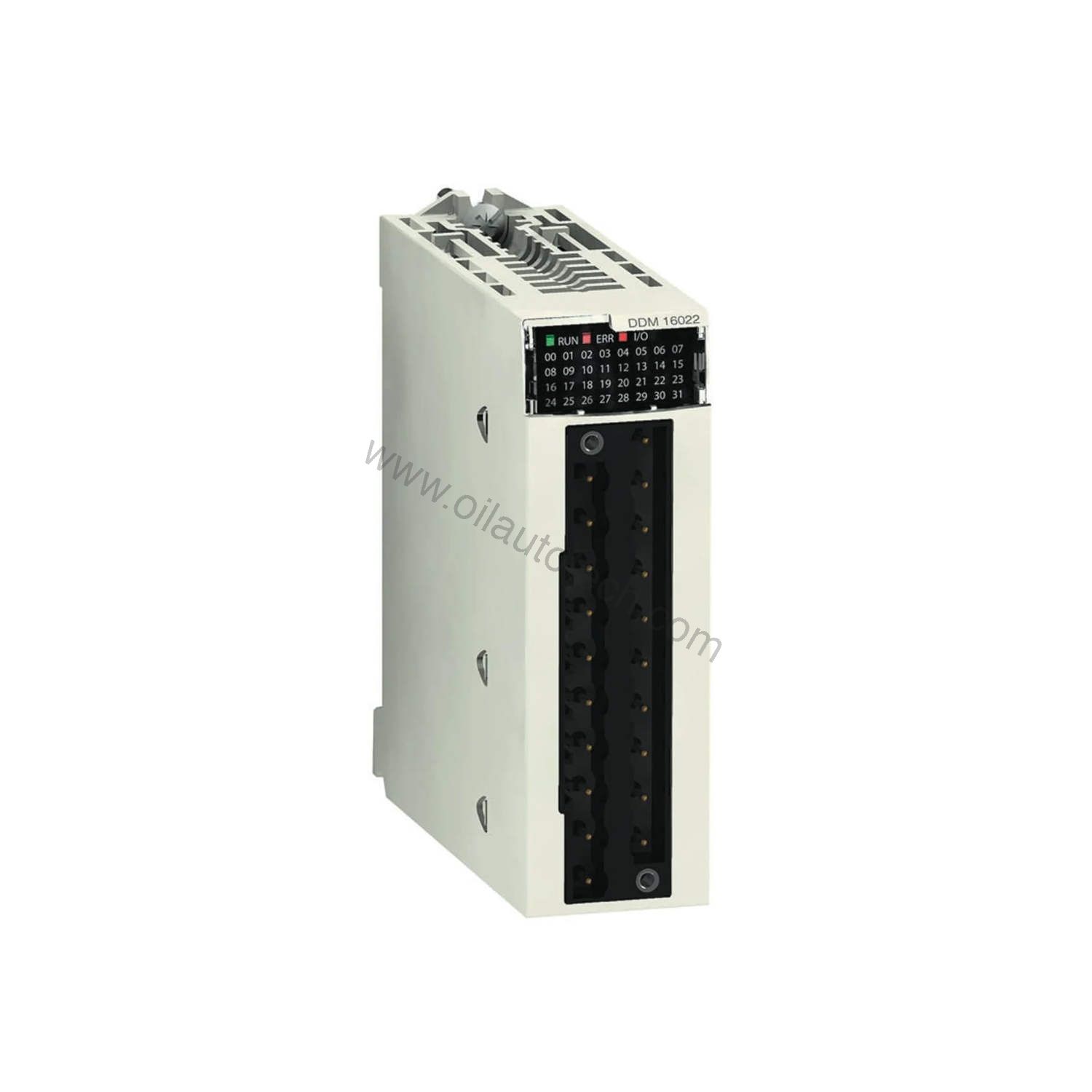

The BMXDDI1603 packs 16 discrete input channels into a housing measuring 100 × 28 × 93 mm and weighing just 0.15 kg. That density matters when panel space is fixed and you need more points per rack. The 20-pin terminal block keeps field wiring organized and serviceable.
24 V DC Sink/Source with Positive Logic
The module accepts 24 V DC discrete inputs with sink/source, positive logic configuration. This flexibility means the same part number works across mixed field-device conventions, reducing spare-part variety on your shelf.
Channel-to-Channel Isolation
Isolation between channels limits fault propagation. A single field fault stays contained instead of disturbing neighboring signals, which protects process continuity and simplifies troubleshooting.
Diagnostics You Can Act On
A module status LED plus per-channel status LEDs give technicians immediate visual confirmation of signal state and module health. Fault finding moves faster because you see the problem at the rack, not only in the program.
Electrical Profile
The module draws 2.6 W and 110 mA at 24 V DC via backplane or field supply. Plan your power budget accordingly when filling a rack.
Where This Module Earns Its Place
Discrete Signal Concentration in Process Plants
Aging remote I/O racks often run out of discrete points before the controller does. Adding a BMXDDI1603 concentrates 16 field signals into one slot, extending the life of existing cabinets.
Replacement and Upgrade Projects
Because the Modicon X80 platform is shared across M340 and M580, a single spare covers multiple controller families. Engineers managing mixed installed bases cut inventory cost and downtime risk with one part number.
High-Density Machine Control
Packaging, material handling, and assembly cells generate many on/off signals from sensors and switches. Sixteen channels per module keep the rack compact while per-channel LEDs speed commissioning.
Installation and Commissioning Notes
Mount the module in a Modicon X80 rack and connect field wiring through the 20-pin terminal block. Confirm the input configuration matches your field devices before power-up. Verify supply voltage and bus current against your rack budget. Use the module and channel LEDs to validate each point during commissioning. Follow Schneider Electric’s installation documentation for torque, grounding, and rack assembly details.
Reliability and Maintenance Planning
At 0°C to +60°C operating range and 5% to 95% non-condensing humidity, the module tolerates typical control-room and sheltered cabinet environments. The IP20 rating means it belongs inside an enclosure, away from dust and moisture ingress. Inspect terminal connections periodically, confirm LED behavior during routine rounds, and keep spares on hand. Because the platform is active and shared across M340 and M580, stocking this module protects both new projects and long-term service contracts.
Compatibility and Integration
The BMXDDI1603 integrates directly into Modicon X80 racks used by M340 and M580 controllers. Channel-to-channel isolation and sink/source positive logic simplify integration with common 24 V DC field devices. The 20-pin terminal block supports clean wiring practices during retrofit work.
What to Verify Before You Buy
Confirm your rack series, required channel count, and field signal convention. Check that your power budget covers 2.6 W and 110 mA at 24 V DC per module. For current lifecycle status and availability, contact SpareTechPLC before ordering. As a supplier focused on industrial automation parts, SpareTechPLC helps engineers match the right module to each application.
Frequently Asked Questions
Does the BMXDDI1603 work with both M340 and M580 controllers?
Yes. Schneider Electric lists the Modicon X80 platform as shared I/O for M340 and M580, so this module fits both families.
How many field signals can one module handle?
It provides 16 discrete input channels at 24 V DC with sink/source, positive logic configuration.
What diagnostics does it offer?
A module status LED and per-channel status LEDs let you verify module health and individual signal states directly at the rack.
What is the power draw per module?
Power consumption is 2.6 W, with a bus current of 110 mA at 24 V DC.
Is channel-to-channel isolation included?
Yes. The module provides isolation between channels, which helps contain field faults and simplifies troubleshooting.
