Is Your Control Cabinet Wiring Costing You More Than It Should?

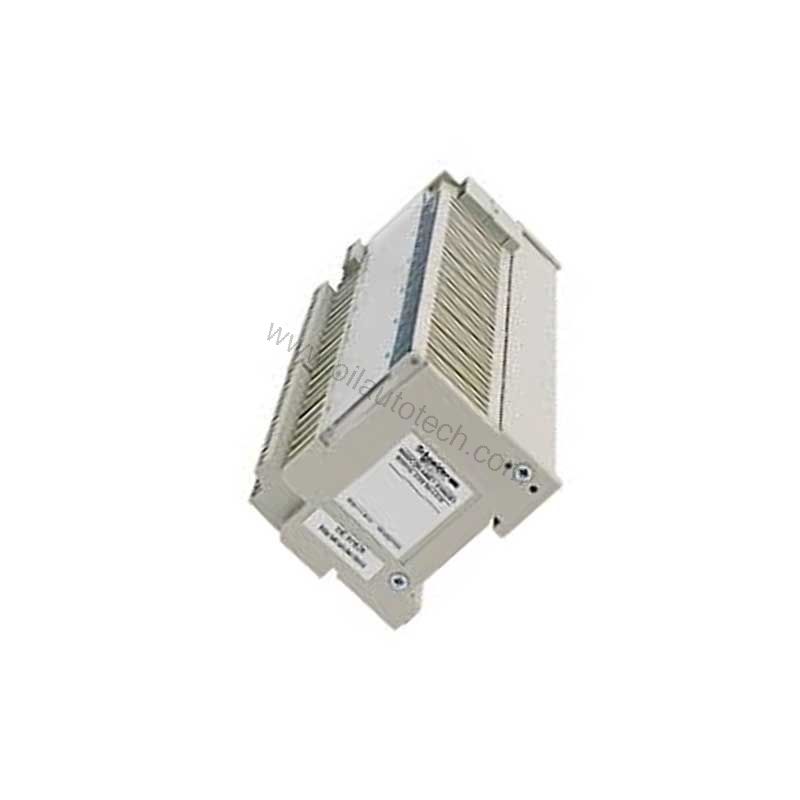

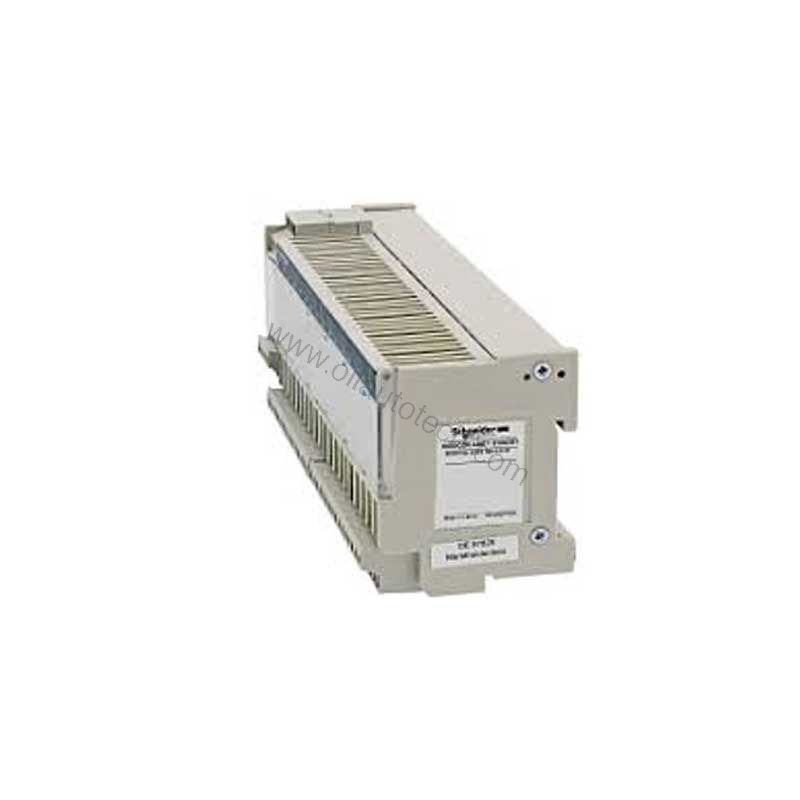

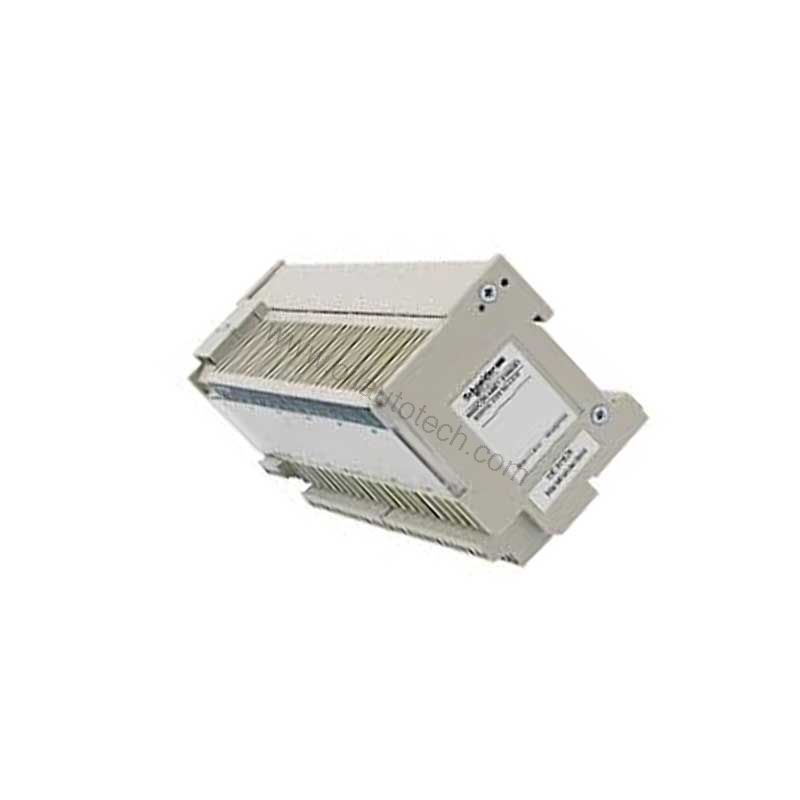

Every panel builder knows the pain: dozens of discrete field wires, each one terminating directly onto a PLC card. It is slow, error-prone, and expensive to maintain. The Schneider ABE7H16R11 solves this problem at the connection layer. This passive discrete I/O connection sub-base belongs to the Telefast ABE7 range and gives you a clean, serviceable interface between field devices and your control system.
What the ABE7H16R11 Actually Does
This sub-base provides 16 discrete input/output channels with one terminal per channel. It carries no active logic and no polarity distribution. Instead, it acts as a passive marshalling layer. Field wiring lands on screw terminals, and a single HE-10 20-pin connector carries all 16 signals to the PLC side. That architecture turns a tangled bundle of individual wires into one pluggable interface.
Key Specifications That Matter on the Floor
| Specification | Value |
|---|---|
| Number of channels | 16 |
| Terminals per channel | 1 |
| Signal type | Discrete input/output, no polarity distribution |
| Rated supply voltage | 19-30V DC (IEC 61131-2) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Connector | HE-10 20-pin |
| Protection | 2 A internal fuse, LED per channel |
| Operating temperature | -5 to 60 °C |
| Protection rating | IP2X |
| Mounting | 35 mm DIN rail clips / screw |
| Dimensions (H×W×D) | 77 × 206 × 58 mm |
| Weight | 0.64 kg |
| Wire cross-section | 0.14-2.5 mm² solid, 0.09-1.5 mm² flexible |
Three parameters deserve attention. First, the 19-30V DC supply range per IEC 61131-2 fits standard industrial control voltages. Second, the 0.5 A per-channel rating covers typical sensor and actuator loads. Third, the 2 A internal fuse and per-channel LED give you both protection and fast visual diagnostics.
Where This Sub-Base Earns Its Place
Machine builders use the ABE7H16R11 wherever discrete I/O density is high and downtime is costly. In packaging lines, it consolidates photo-eye and solenoid wiring into one pluggable block. In material handling systems, it speeds conveyor zone commissioning because technicians wire terminals once and swap the HE-10 connection during maintenance. For retrofit projects, it replaces point-to-point field wiring with a repeatable, documented interface that shortens every future service call.
Installation and Wiring Notes
The module snaps onto 35 mm DIN rail clips or mounts with screws. Acceptable wire cross-sections run from 0.14-2.5 mm² for solid conductors and 0.09-1.5 mm² for flexible conductors. Keep the cabinet within the -5 to 60 °C operating range and respect the IP2X rating, which protects against finger contact but not against dust or water ingress. Route field wiring away from high-power switching devices to reduce induced noise on discrete signals.
Reliability and Maintenance
Because this is a passive device, wear points are minimal. Inspect terminal screws periodically for loosening caused by vibration. Check the per-channel LEDs during scheduled maintenance; a dark LED with a live field signal points to a blown 2 A fuse or a wiring fault. Keep spare HE-10 connector assemblies on hand to reduce mean time to repair. The ABE7H16R11 remains active in production within the Telefast ABE7 range, so long-term spares planning is straightforward.
Compatibility and Integration
The HE-10 20-pin connector is the integration point. It mates with compatible PLC I/O cards and pre-wired cables designed for the Telefast ABE7 system. Confirm your controller’s connector interface before ordering. The passive design means the sub-base does not negotiate protocols or address devices; it simply passes discrete signals through.
What to Verify Before You Buy
Check three things: your field device voltage falls within 19-30V DC, total current draw stays under 1.8 A, and no single channel exceeds 0.5 A. Confirm your PLC-side cable matches the HE-10 20-pin interface. SpareTechPLC stocks this sub-base and can help you verify compatibility with your existing panel layout.
Frequently Asked Questions
Is the ABE7H16R11 an active I/O module?
No. It is a passive connection sub-base. It routes discrete signals and provides fusing and LED indication, but it contains no processing logic.
Can I use it for both inputs and outputs?
Yes. The 16 channels handle discrete input/output signals with no polarity distribution.
What happens if a channel is overloaded?
The 2 A internal fuse protects the module. The per-channel LED helps you identify the affected circuit quickly.
Does it need a separate power supply?
The sub-base operates on a 19-30V DC supply per IEC 61131-2, with a maximum supply current of 1.8 A.
