ABE7R16T230 Buyer’s Guide: Is This 16-Channel Relay Sub-Base Right for Your Panel?
Upgrading a control panel often means replacing dozens of individual relay sockets. The ABE7R16T230 from Schneider Electric solves that problem by packaging sixteen plug-in electromechanical relays onto one compact Telefast ABE7 sub-base. This buyer’s guide walks through the specifications, applications, and selection criteria you need to evaluate before purchase.
What the ABE7R16T230 Actually Provides

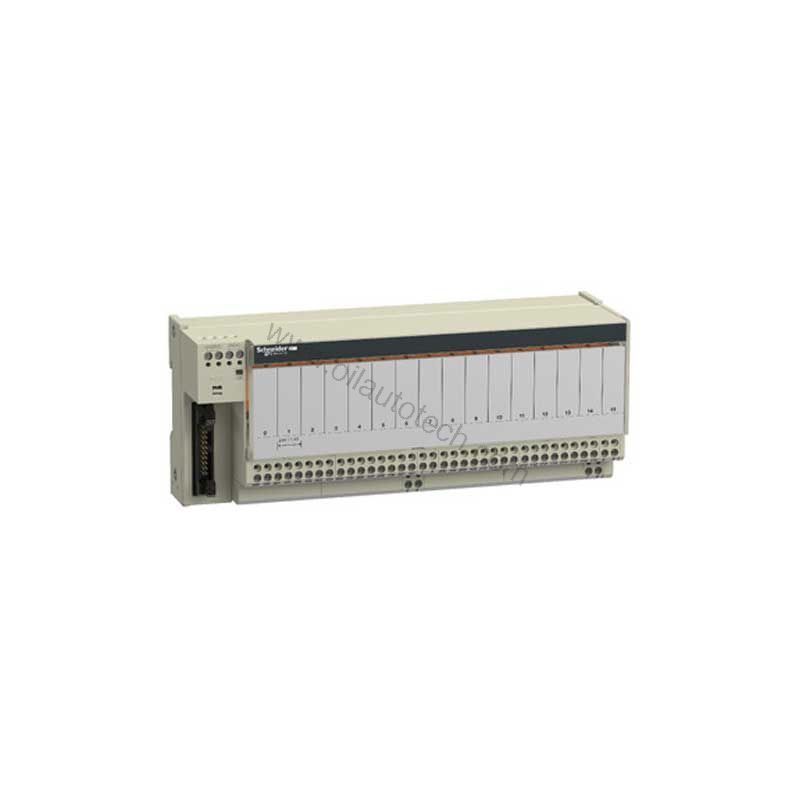

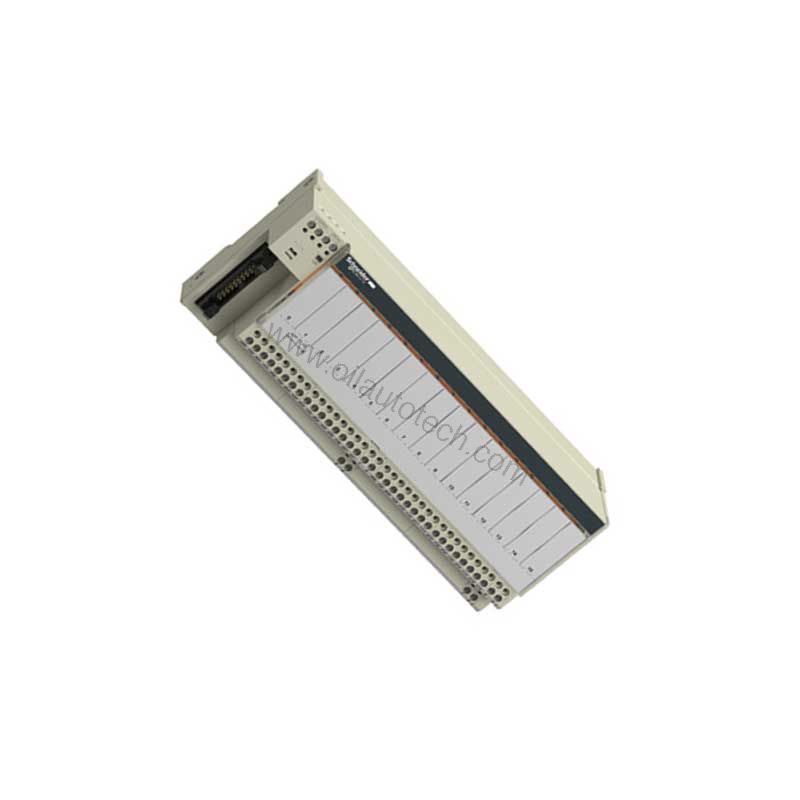

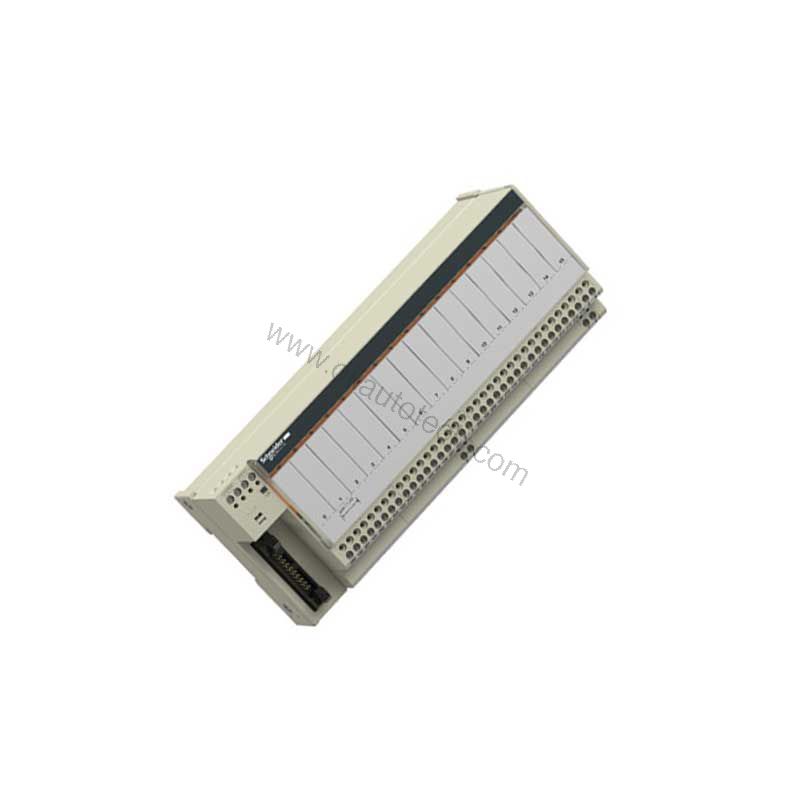

This unit is a sub-base with plug-in electromechanical relays, designed for 230V AC coil operation. Each of the sixteen channels uses a 1 CO (SPDT) contact configuration. That means every channel gives you one changeover contact, so you can switch between normally open and normally closed circuits without adding extra hardware.
Schneider Electric builds this model within the Telefast ABE7 range, a family known for pre-wired connection systems. The ABE7R16T230 carries an active lifecycle status, so you can still source it for new builds and ongoing maintenance.
Key Specifications That Affect Your Decision
Contact Rating and Load Capacity
Each channel handles 5 A at 250V AC. For panel builders, this rating covers a wide range of pilot devices, small contactors, and indicator loads. If your application draws more than 5 A per channel, you need an interposing contactor rather than direct switching.
Coil Voltage and Control Circuit
The 230V AC coil voltage means this sub-base works directly with standard control voltages found in many industrial cabinets. You do not need a separate step-down transformer for the coil circuit, which simplifies panel design and reduces component count.
Built-In Protection and Diagnostics
Every channel includes a 1 A internal fuse. This protects the relay coil circuit from overcurrent damage. LED status indication on each channel lets technicians confirm operation at a glance, cutting troubleshooting time during maintenance windows.
Mechanical and Electrical Life
The plug-in relay delivers 10,000,000 mechanical cycles and 100,000 electrical cycles at AC-15 duty. These figures matter for high-cycle applications. If your process actuates relays frequently, plan for periodic relay replacement while keeping the sub-base in service.
Where This Sub-Base Fits in Real Applications
Machine Control Panels
A 16-channel sub-base concentrates relay logic in one location. Panel builders reduce wiring time because the ABE7R16T230 accepts wire cross-sections from 0.14 to 2.5 mm² solid and 0.09 to 1.5 mm² flexible. That range covers most control wiring found in industrial cabinets.
Process Skids and Packaging Lines
When replacing aging relay banks, this sub-base offers a direct upgrade path. The 35 mm DIN rail or screw mounting options fit standard enclosure layouts. At 88 × 200 × 71 mm and 0.735 kg, it occupies modest panel space for sixteen channels.
Building Automation and Pump Control
Systems that switch lighting, pumps, or ventilation fans at 230V AC benefit from the integrated coil voltage. The IP2X protection rating suits installation inside protected enclosures, which is standard practice for this equipment class.
Installation and Setup Notes
Mount the sub-base on a 35 mm DIN rail or secure it with screws. Confirm your wire cross-section falls within the accepted range before terminating. The operating temperature range of -5 to 60 °C covers most climate-controlled industrial environments. Follow Schneider Electric’s installation documentation for wiring and commissioning.
Maintenance and Reliability Planning
Inspect relay contacts periodically as part of your preventive maintenance schedule. The plug-in design allows relay replacement without removing field wiring. Keep spare plug-in relays on hand if your application cycles frequently. The 100,000-cycle electrical life at AC-15 gives you a baseline for planning replacement intervals.
Compatibility and Integration
The ABE7R16T230 belongs to the Telefast ABE7 series, so it integrates with other components from that range. The 1 CO contact configuration works with standard control circuits. Verify your controller output compatibility and coil drive capability before ordering.
Selection Checklist Before You Buy
Confirm these points before purchasing: channel count matches your I/O requirements, contact rating covers your load, coil voltage matches your control circuit, and mounting style fits your enclosure. Check wire cross-section compatibility with your existing wiring. SpareTechPLC stocks this model and can confirm current availability.
Frequently Asked Questions
How many channels does the ABE7R16T230 provide?
It provides 16 channels, each with a 1 CO (SPDT) contact.
What is the contact rating per channel?
Each channel is rated 5 A at 250V AC.
Does this sub-base include fuses?
Yes, each channel has a 1 A internal fuse and LED status indication.
What mounting options are available?
You can mount it on a 35 mm DIN rail or use screw mounting.
Is the ABE7R16T230 still in production?
Yes, it holds active lifecycle status within the Telefast ABE7 range.
