Is Your Remote I/O Architecture Holding Back Your Plant’s Potential?

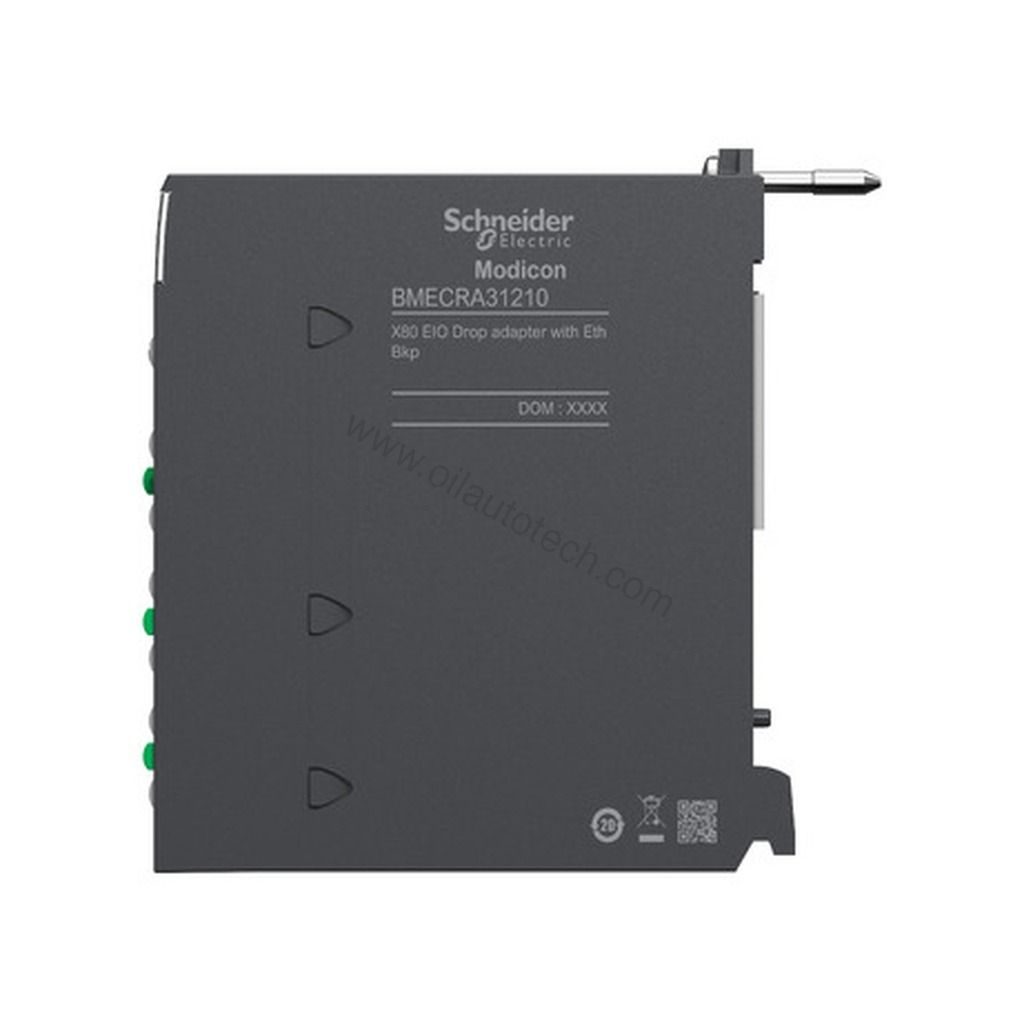

Legacy remote I/O drops often force engineers to choose between costly rewiring and limited network flexibility. The BMECRA31210 from Schneider Electric solves that problem directly. It is a Modicon M580 Ethernet Remote I/O Drop Adapter, identified by the CRA code for Remote IO Adapter. This module installs on a remote rack Ethernet backplane and supports X80 I/O modules through dual Ethernet and X-bus connectivity. It is not a CANopen master, so buyers should confirm their network design before ordering.
What This Adapter Actually Does

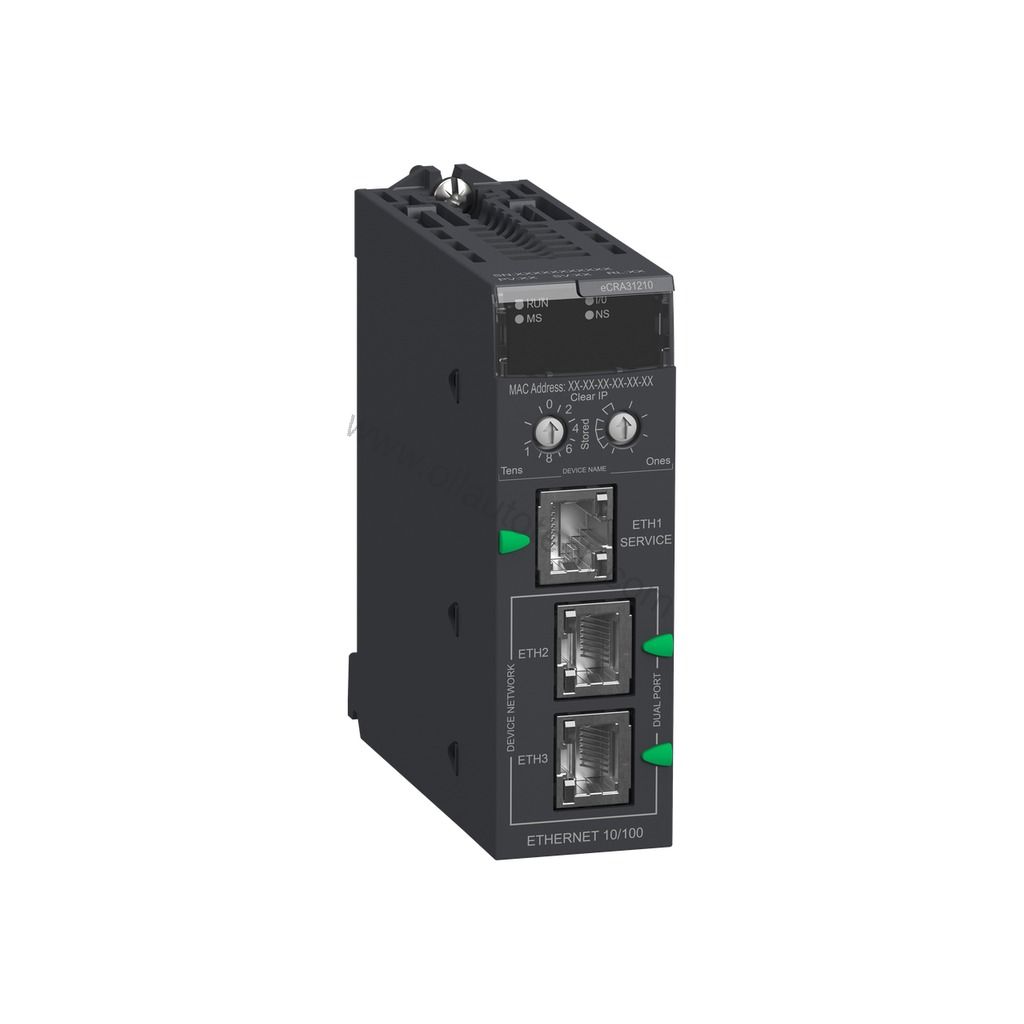

The BMECRA31210 connects a remote X80 I/O rack to the plant network over Ethernet. Two built-in RJ45 ports run at 10/100 Mbps and include an integrated switch. That design lets you daisy-chain drops without adding external switches. The module speaks EtherNet/IP and Modbus TCP/IP, covering the two most common industrial Ethernet protocols in modern process and factory automation.
Power comes from the backplane at 24 V DC. Consumption sits at 5.5 W, and bus current draw is 500 mA at 24 V DC. Those figures matter when you size the rack power budget. A single slot occupation keeps the rack compact.
Key Parameters at a Glance
| Specification | Value |
|---|---|
| Model | BMECRA31210 |
| Brand | Schneider Electric |
| Series | Modicon M580 |
| Type | Ethernet Remote I/O Drop Adapter |
| Ports | 2x Ethernet RJ45, 10/100 Mbps, integrated switch |
| Protocols | EtherNet/IP, Modbus TCP/IP |
| Supply voltage | 24 V DC (via backplane) |
| Power consumption | 5.5 W |
| Bus current | 500 mA @ 24 V DC |
| Operating temperature | 0°C to +60°C |
| Storage temperature | -25°C to +70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Protection rating | IP20 |
| Backplane compatibility | BMEXBP Ethernet backplane |
| Dimensions (H×W×D) | 100 × 28 × 93 mm |
| Weight | 0.15 kg |
| Slot occupation | 1 slot |
Where This Module Fits Best
Water treatment plants frequently run distributed pump stations across large sites. The BMECRA31210 lets each station host its own X80 rack while reporting back over EtherNet/IP. Engineers avoid long analog cable runs and gain cleaner diagnostics.
Food and beverage lines benefit from the Modbus TCP/IP support. Many legacy SCADA systems already speak Modbus, so the adapter bridges new X80 I/O to existing supervisory software. Packaging operations with frequent line reconfiguration also gain from the dual RJ45 switch, since drops can chain without extra hardware.
Replacing Older Remote I/O Drops
Plants migrating from Quantum or Premium platforms often face a rack-by-rack upgrade path. The Modicon M580 platform replaced those older families, and this adapter is part of that current flagship ePAC line introduced in 2014. When you swap an aging drop adapter, check three things first: backplane type, protocol needs, and slot count. This module requires a BMEXBP Ethernet backplane and occupies one slot.
The 100 × 28 × 93 mm housing and 0.15 kg weight make physical replacement straightforward in most enclosures. Because the unit draws power from the backplane, no separate 24 V DC feed wiring is needed at the module itself. That simplifies cabinet work during changeover.
Installation and Environmental Notes
Mount the adapter on the BMEXBP Ethernet backplane and confirm the rack sits within 0°C to +60°C during operation. Storage conditions range from -25°C to +70°C. Keep relative humidity between 5% and 95% with no condensation. The IP20 rating means the module belongs inside a protected enclosure, away from dust and water ingress.
Follow the manufacturer’s installation manual for wiring and configuration. Do not improvise network settings without documented guidance.
Maintenance and Long-Term Reliability
Inspect the module periodically for loose connections, dust buildup on the enclosure, and abnormal LED behavior. Because the design has no moving parts, wear points are minimal. Keep cabinet filters clean to hold humidity and temperature within the stated ranges. Stable thermal conditions protect the integrated switch and extend service life.
Compatibility and Integration Checklist
Before ordering, verify your rack uses a BMEXBP Ethernet backplane. Confirm your controller or SCADA supports EtherNet/IP or Modbus TCP/IP. Check that the remote drop fits your slot plan, since this adapter takes one slot. If you run a mixed network, confirm the integrated switch behavior matches your topology.
SpareTechPLC supplies industrial automation parts and news for maintenance and engineering teams. Verify current lifecycle status and availability with SpareTechPLC before ordering. The lifecycle data lists this model as active, last verified in September 2026.
Frequently Asked Questions
Is the BMECRA31210 a CANopen master?
No. It is an Ethernet Remote I/O Drop Adapter, not a CANopen master. It communicates over EtherNet/IP and Modbus TCP/IP.
How many Ethernet ports does it have?
It has two RJ45 ports rated at 10/100 Mbps with an integrated switch.
What backplane does it need?
It installs on a BMEXBP Ethernet backplane and occupies one slot.
What is the power consumption?
The module consumes 5.5 W and draws 500 mA at 24 V DC from the backplane.
Can it replace an older Quantum or Premium drop adapter?
The Modicon M580 platform replaced Quantum and Premium families. Confirm backplane and protocol compatibility before swapping.
