Is Your Legacy Control System Losing Output Channels Faster Than You Can Replace Them?
When a proven Modicon Quantum line keeps tripping on a failed discrete output card, every hour of unplanned downtime erodes production targets and maintenance budgets. The Schneider 140DAO84220 answers that exact challenge. This 16-point AC Triac output module belongs to the trusted Modicon Quantum series and delivers reliable low-voltage AC switching for demanding industrial loads.

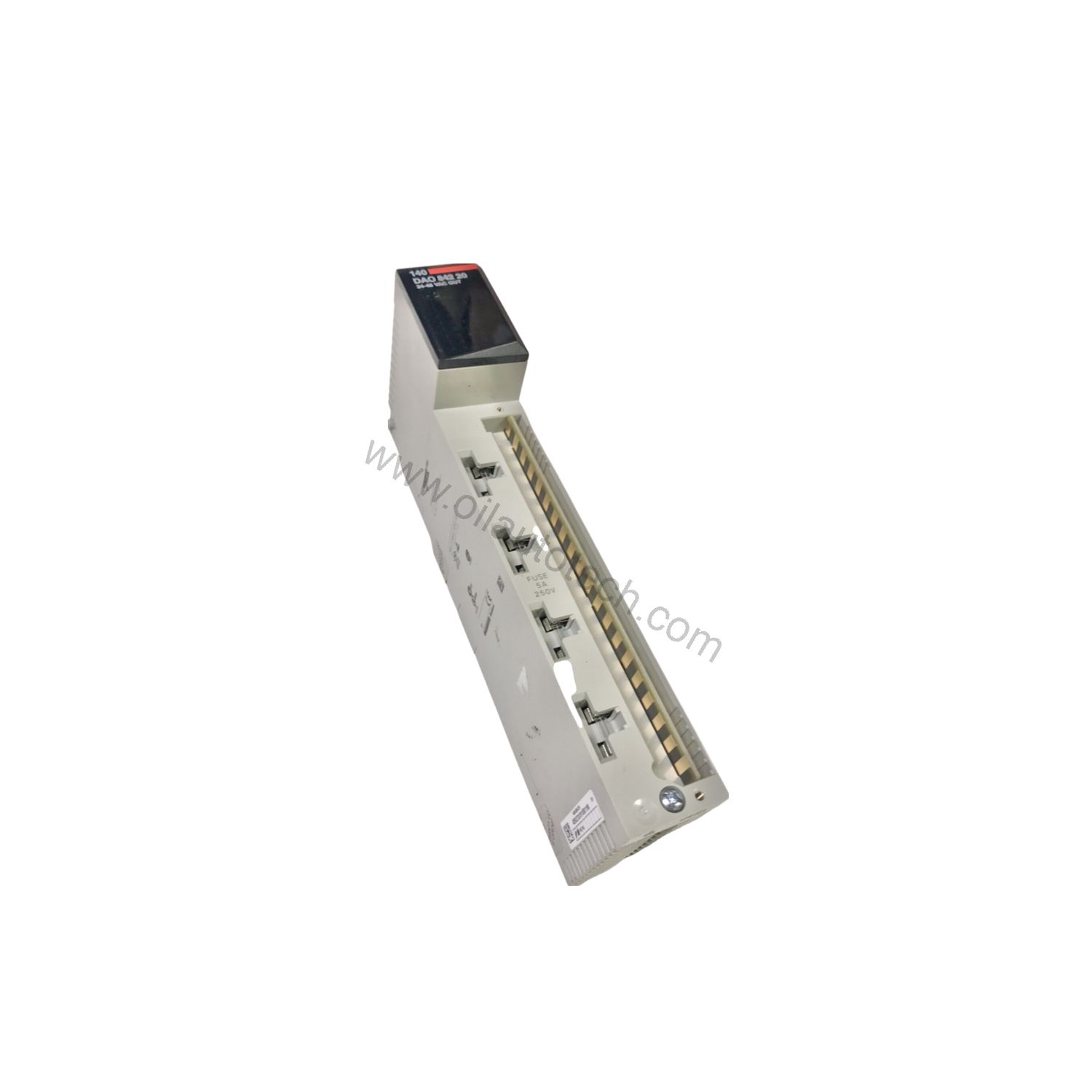

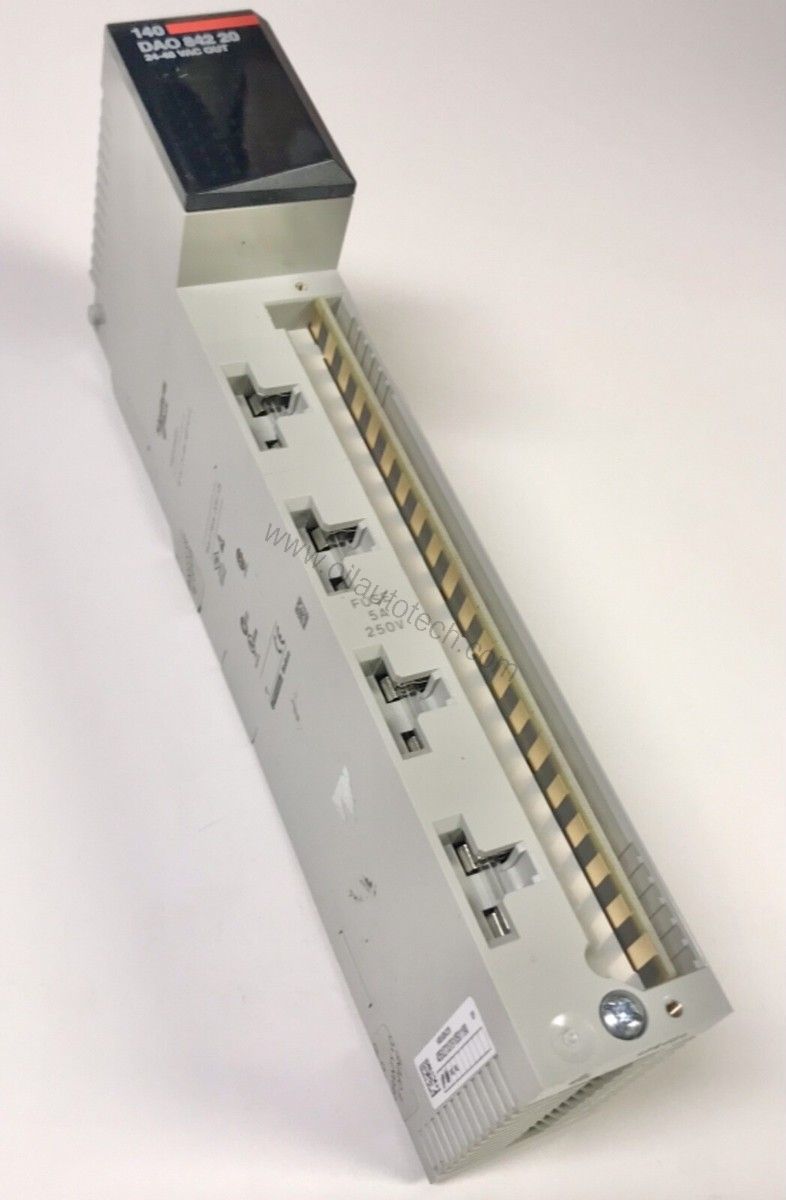

What Makes This Output Module Different

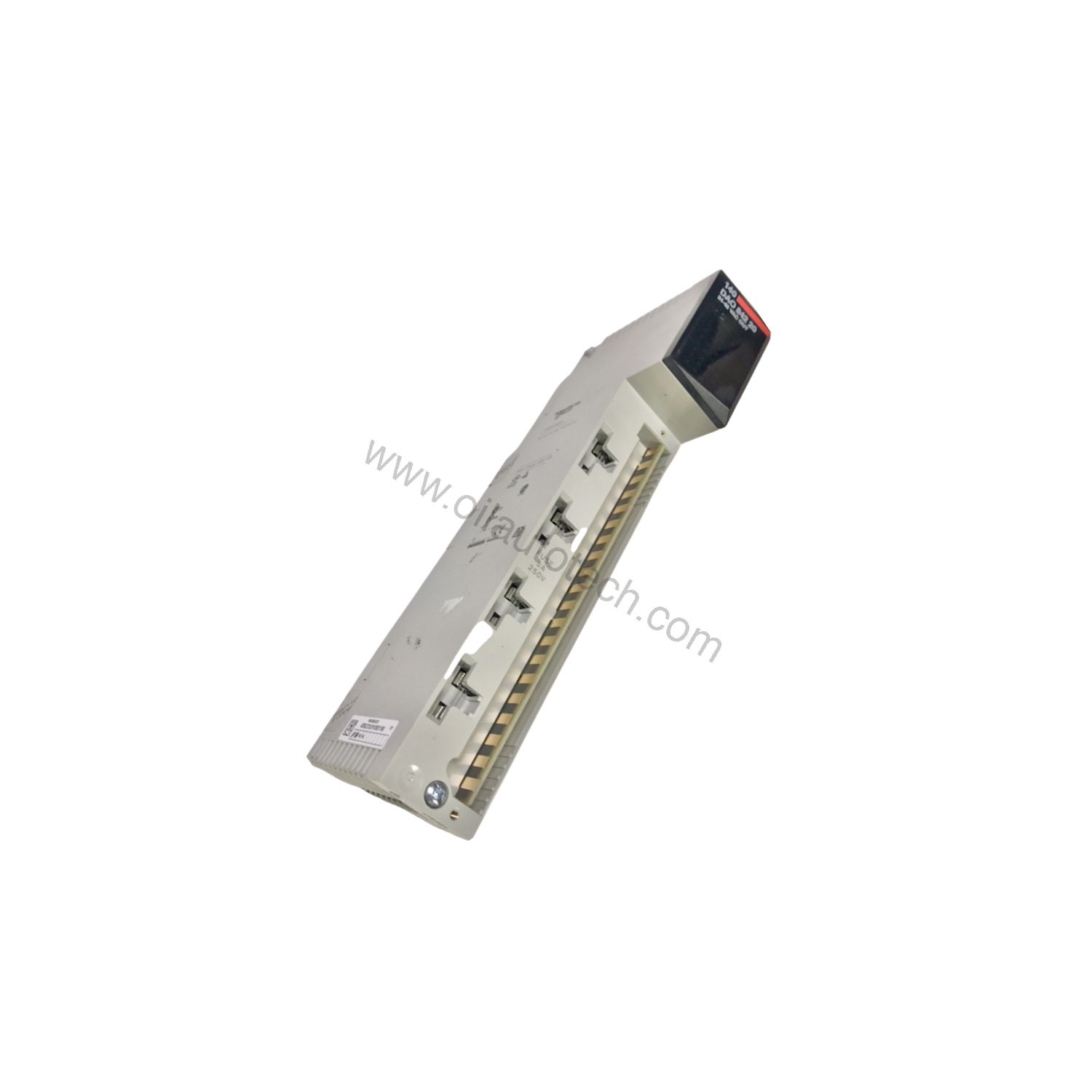

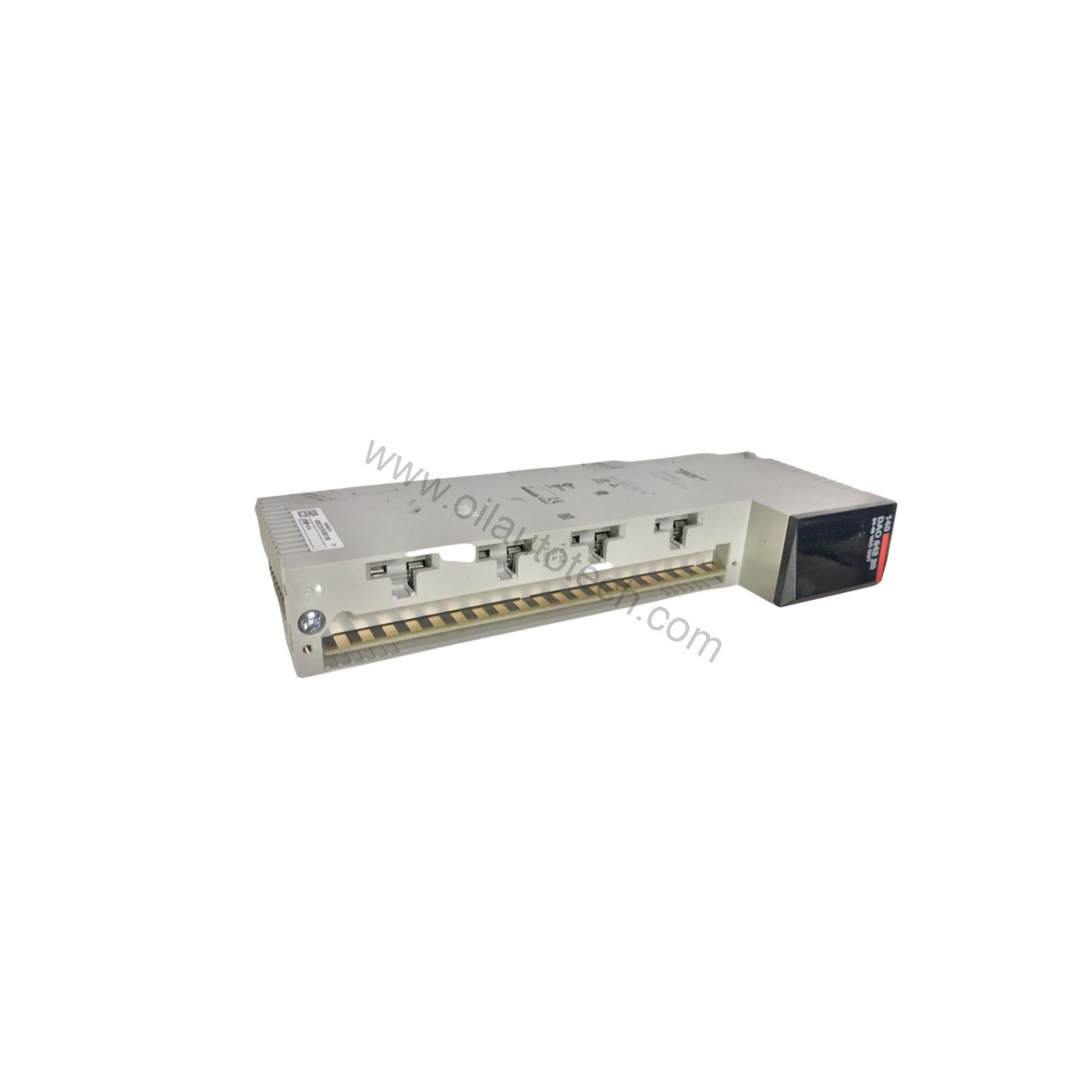

The 140DAO84220 is not a generic replacement card. It is a purpose-built discrete output module with 16 points arranged in four isolated groups of four. Each output uses a bidirectional thyristor, or Triac, rated for 20 to 56 V AC. That design handles AC loads directly without external relays, which reduces panel wiring and component count.
Group-to-group isolation prevents a fault on one output group from disturbing the others. Built-in diagnostics for blown fuse and loss of field power report through LED indication, so technicians can identify problems without pulling the module. A typical response time of 0.5 ms with zero-crossing switching supports fast, clean transitions for inductive and resistive AC loads.
Technical Specifications at a Glance
| Parameter | Value |
|---|---|
| Channels | 16 points (4 groups × 4) |
| Signal type | AC output, Triac (bidirectional thyristor) |
| Voltage range | 20 to 56 V AC |
| Output current | 4 A rms per output; 16 A rms per module; 4 A rms per group |
| Isolation | Group-to-group isolation |
| Diagnostics | Blown fuse, loss of field power (LED indication) |
| Response time | 0.5 ms (typical, zero-crossing triac) |
| Backplane supply | 5 V DC |
| Bus current | 350 mA @ 5 V DC |
| Power consumption | 1.85 W + (1.1 V × total load current) |
| Slots required | 1 |
| Protection rating | IP20 |
| Dimensions (H×W×D) | 250 × 40.34 × 103.85 mm |
| Weight | 0.3 kg |
Where the 140DAO84220 Fits in Your Plant
Packaging and Material Handling
High-cycle AC solenoid and valve banks benefit from the Triac output design. The 0.5 ms response and zero-crossing switching reduce electrical noise and contact wear compared with mechanical relays.
Building Automation and Pump Control
Low-voltage AC contactors and small pump starters often operate between 20 and 56 V AC. The 4 A rms per output rating covers many of these loads directly, while group isolation keeps separate circuits independent.
Replacement and Upgrade Paths
Because the 140DAO84220 is discontinued, plants running Quantum systems should treat every working unit as critical spares. When an existing output card fails, replacing it with the same model preserves wiring, configuration, and panel layout. That avoids a full I/O migration and keeps validation records intact.
Installation and Commissioning Notes
Mount the module in a single Quantum slot and confirm the backplane supply provides 5 V DC. Check that the total load current stays within the 16 A rms module limit and the 4 A rms group limit. Verify field wiring polarity and voltage before energizing outputs. Use the LED diagnostics to confirm fuse health and field power presence during startup. Maintain the IP20 enclosure environment free of conductive dust and moisture.
Maintenance and Lifecycle Planning
Inspect terminal connections and output LEDs during scheduled shutdowns. Watch for repeated blown-fuse indications, which may point to load faults rather than module failure. Keep spare units on hand because the 140DAO84220 is discontinued (End of Sale). Please verify current lifecycle status and availability with SpareTechPLC before ordering. For safety-related circuits, follow the manufacturer’s safety manual and inspect periodically.
Compatibility and Integration
The 140DAO84220 integrates with Modicon Quantum backplanes and works alongside other Quantum I/O modules in the same rack. It requires one slot and draws 350 mA from the 5 V DC backplane. Confirm your existing Quantum CPU and rack configuration support this module before purchase. SpareTechPLC can help verify compatibility for your specific system.
What to Check Before You Buy
Confirm your application voltage falls within 20 to 56 V AC. Calculate total and per-group load currents to stay within the 4 A rms and 16 A rms limits. Verify that your panel has an open Quantum slot and adequate backplane capacity. Since the product is discontinued, request current stock and condition details from SpareTechPLC. Ask about testing documentation and return options to protect your investment.
Frequently Asked Questions
Is the 140DAO84220 still in production?
No. This module is discontinued (End of Sale). Contact SpareTechPLC to confirm remaining availability and replacement options.
Can I use this module for DC loads?
No. The 140DAO84220 is an AC output module using Triac switching, rated for 20 to 56 V AC only.
What do the LED diagnostics indicate?
The LEDs report blown fuse and loss of field power, helping you identify output circuit problems quickly.
How many slots does it require?
It needs one slot in a Modicon Quantum rack and draws 350 mA at 5 V DC from the backplane.
What is the maximum current per output?
Each output handles 4 A rms, with a 4 A rms group limit and 16 A rms total per module.
