Why High-Density Inputs Cut Your Panel Costs

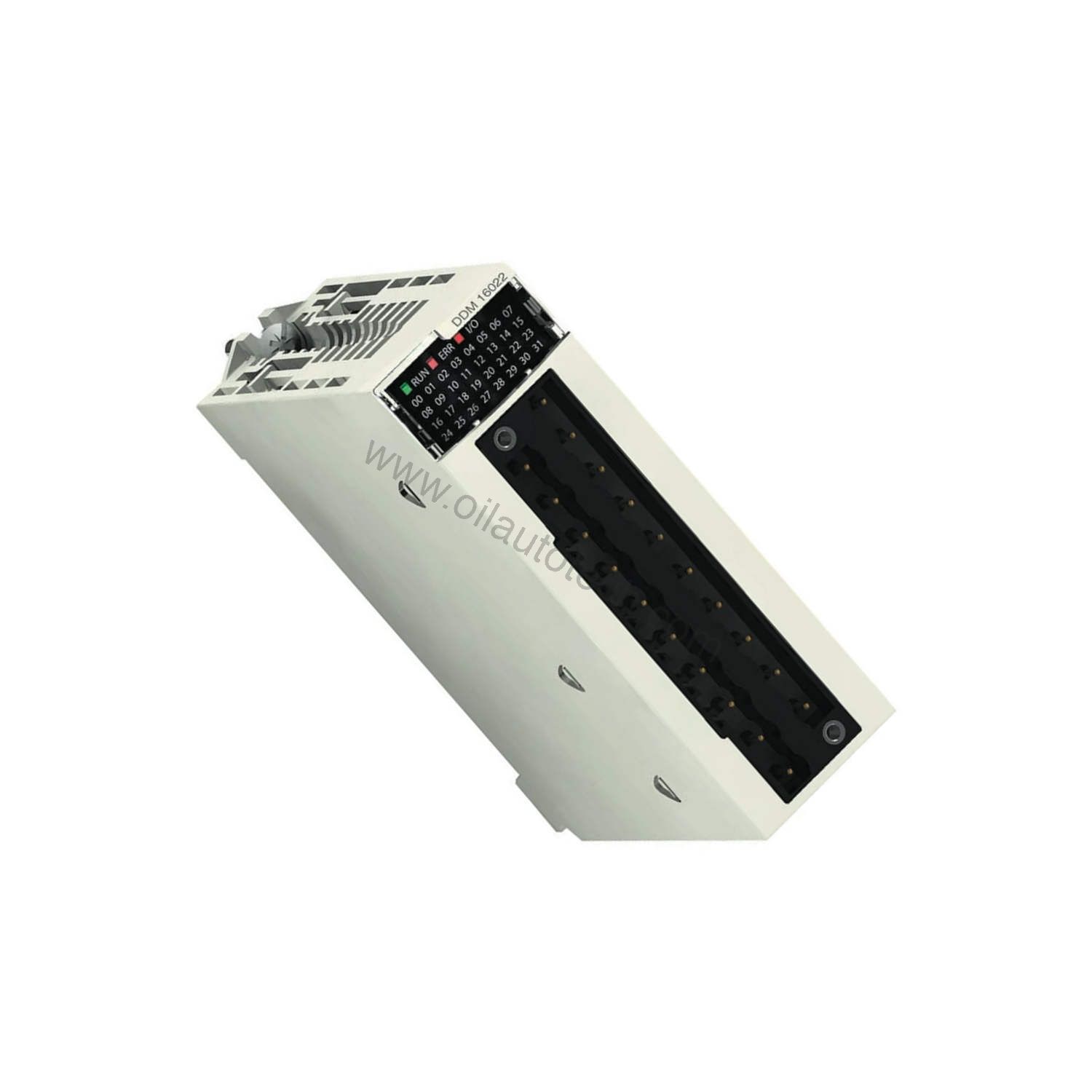

Panel space is expensive. Every additional rack, terminal strip, and wiring hour adds cost to your control cabinet. The BMXDDI6402K from Schneider Electric solves this by packing 64 discrete input channels into a single Modicon X80 module. That density directly reduces the number of modules, terminal blocks, and enclosure space you need to buy and maintain.
This module is a discrete input unit with positive logic, designed for 24 V DC field signals. It belongs to the Modicon X80 series, a shared I/O platform for M340 and M580 controllers. Because both controller families use the same platform, you can standardize spare parts across different machine generations and lower your long-term inventory costs.
Key Parameters That Drive Cost and Efficiency
64 Channels in a Single Slot
Sixty-four input channels replace what would otherwise require multiple lower-density modules. Fewer modules mean fewer rack slots, less backplane current draw per channel, and simpler spare-part planning. For a machine builder, this translates into a smaller cabinet and a lower bill of materials.
24 V DC Positive Logic
The module reads standard 24 V DC discrete signals with positive logic. This matches the most common industrial sensor and switch output in factory automation, so you avoid signal converters and extra power supplies. Fewer components mean fewer failure points and lower maintenance cost.
Group-to-Group Isolation
Group-to-group isolation separates input groups electrically. This limits fault propagation between groups, which protects the module and reduces unplanned downtime. In cost terms, one isolated fault stays contained instead of taking down the whole input card.
40-Pin High-Density Terminal Block
The 40-pin terminal block supports the high channel count in a compact body. Dense termination saves wiring time during commissioning and reduces the physical footprint inside the cabinet. Less wiring labor and less copper add up to real project savings.
Power and Current Draw
The module runs on 24 V DC supply voltage and consumes 6.7 W. Bus current draw is 280 mA at 24 V DC. Knowing these values lets you size the power supply and backplane budget accurately, avoiding an oversized supply that costs more than necessary.
Technical Specifications
| Specification | Value |
|---|---|
| Model | BMXDDI6402K |
| Brand | Schneider Electric |
| Series | Modicon X80 |
| Channels | 64 channels |
| Signal type | Discrete input (positive logic) |
| Range | 24 V DC |
| Isolation | Group-to-group isolation |
| Diagnostics | Module status LED |
| Connection | 40-pin terminal block (high density) |
| Supply voltage | 24 V DC |
| Power consumption | 6.7 W |
| Bus current | 280 mA @ 24 V DC |
| Operating temperature | 0°C to +60°C |
| Storage temperature | -25°C to +70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Protection rating | IP20 |
| Dimensions (H×W×D) | 100 × 28 × 93 mm |
| Weight | 0.18 kg |
Where This Module Earns Its Keep
Automotive Body Assembly
A body shop line runs hundreds of proximity switches and limit switches. The BMXDDI6402K collects 64 of those signals in one slot. High density keeps the panel small and the wiring short, which lowers installation cost per point.
Packaging and Material Handling
Conveyor zones use photoeyes and mechanical switches on 24 V DC. Group-to-group isolation keeps a shorted sensor in one zone from affecting inputs in another zone. That containment reduces troubleshooting time and production loss.
Water and Wastewater Pump Stations
Pump stations monitor float switches, valve limits, and pressure switches. The wide operating temperature range of 0°C to +60°C suits many outdoor cabinets. Fewer modules also mean fewer spares to stock across remote sites.
Replacement and Upgrade Path
If you are replacing older discrete input cards, check three things before ordering. First, confirm your controller family supports the Modicon X80 platform, since it is shared between M340 and M580. Second, confirm your field devices supply 24 V DC positive logic signals. Third, confirm your wiring plan fits a 40-pin high-density terminal block, because the termination style differs from lower-density cards.
Because the platform is shared, you can standardize on one input module across multiple controller generations. That reduces the number of unique spare part numbers you keep on the shelf, which directly lowers inventory carrying cost.
Installation Notes
Mount the module in the rack according to the controller documentation. Keep the cabinet within the 0°C to +60°C operating range and within 5% to 95% relative humidity, non-condensing. The IP20 rating means the module needs a protected enclosure, so keep it away from dust, water spray, and conductive debris. Route field wiring away from high-power cables to reduce electrical noise on the 24 V DC inputs. Use the module status LED to confirm the module is recognized during commissioning.
Maintenance and Long-Term Cost
Discrete input modules have no moving parts, so wear is low. The main cost risks are environmental: heat, humidity, and contamination. Inspect the cabinet periodically for dust buildup and check that cooling fans and filters work. Verify terminal block connections remain tight, since loose terminations cause intermittent signals and wasted troubleshooting hours. Keep spare modules on hand, because a failed input card stops the line. Standardizing on the BMXDDI6402K across machines means one spare covers several assets, which lowers the total cost of ownership.
Selection Checklist
Before you buy, verify the controller platform, the field signal type, and the terminal block style. Confirm the 24 V DC supply can cover the 6.7 W module consumption and the 280 mA bus current. Check that the cabinet meets the IP20 enclosure requirement and the temperature range. For current pricing, lead time, and availability, contact SpareTechPLC.
Please verify current lifecycle status and availability with SpareTechPLC before ordering. The manufacturer lists this model as active on a shared I/O platform for M340 and M580, last verified 2026-09.
