Case Study: Eliminating Unplanned Downtime in a Continuous Process Line
A chemical plant faced repeated production halts when its aging safety controller failed to switch over during a power anomaly. The legacy system lacked true redundancy, forcing a full line restart that cost thousands per hour. The engineering team needed a safety CPU that could maintain SIL3 integrity while running hot standby architecture. The Schneider BMEH582040S solved this challenge by combining redundant Hot Standby processing with SIL3 certification, ensuring seamless failover without process interruption.
What Is the BMEH582040S?

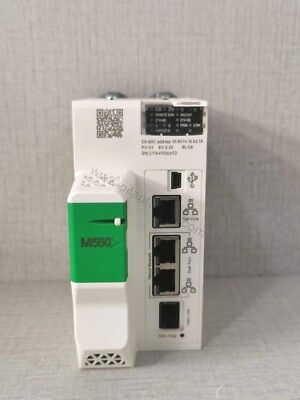

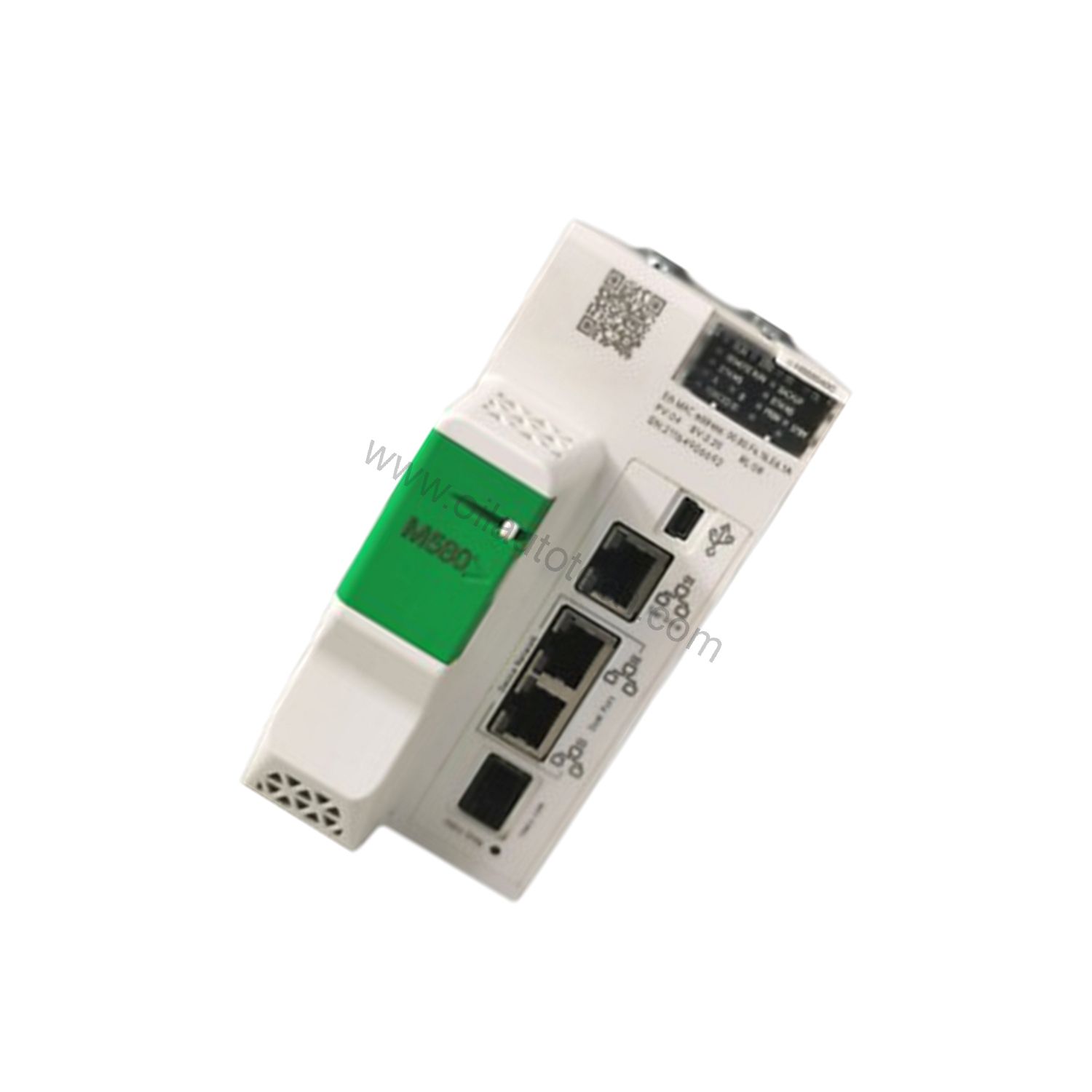

The BMEH582040S is a Modicon M580 redundant Hot Standby safety CPU from Schneider Electric. It belongs to the Level 2 performance class and carries SIL3 certification under IEC 61508. This module occupies two slots on an X80 Ethernet backplane and runs on an ARM dual-core processor at 600 MHz. It integrates 8 MB of program RAM and 512 KB of data memory. Engineers program it using EcoStruxure Machine Expert, formerly Unity Pro XL.
Technical Specifications That Drive Performance
Processing Power and Memory
The 600 MHz ARM dual-core processor handles complex safety logic without scan time bottlenecks. The 8 MB program memory supports large safety routines, while 512 KB of data memory manages real-time variables. This capacity suits mid-to-large process applications.
Redundant Hot Standby Architecture
The HSBY design maintains two synchronized CPUs. If the primary unit faults, the standby takes over instantly. This architecture eliminates single points of failure in safety loops.
Communication and Integration

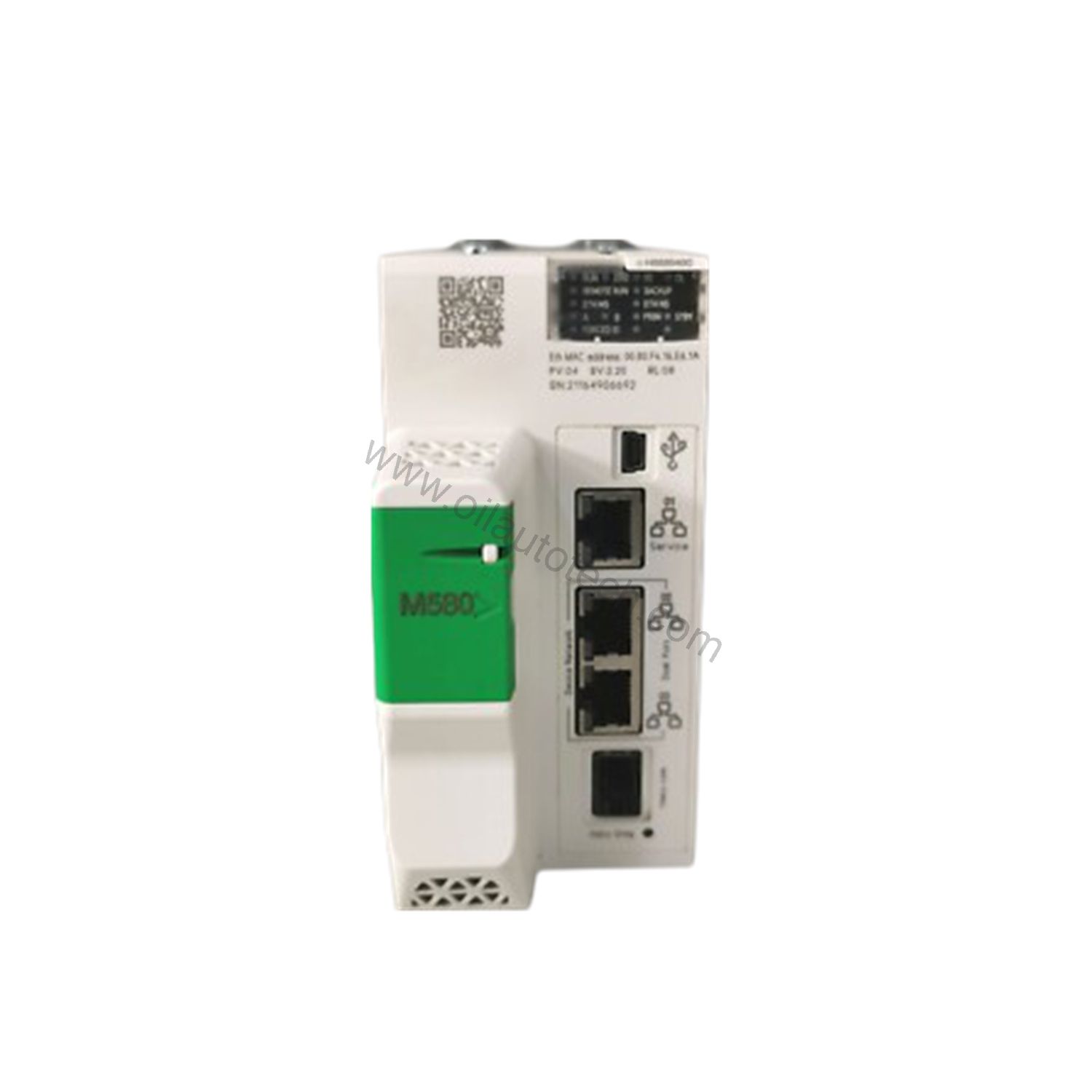

Built-in ports include one Ethernet service port, two Ethernet RIO/DIO ports, and one USB Mini-B. The CPU supports Modbus TCP/IP, EtherNet/IP, and PROFIsafe over PROFINET. These protocols allow direct integration with existing plant networks and safety devices.
I/O Capacity and Scalability
The BMEH582040S manages up to 8 X80 remote I/O racks and 61 distributed devices. It fits 4, 6, 8, and 12-slot racks. This scalability supports both compact and expansive safety systems.
Electrical and Environmental Parameters
The module runs on 24 V DC with an operating range of 19.2 to 31.2 V DC via the backplane. Power consumption is 7.2 W, and bus current draw is 300 mA at 24 V DC. It operates from 0°C to +60°C and stores from -25°C to +70°C. Humidity tolerance spans 5% to 95% non-condensing. The IP20 rating and conformal coating protect against dust and humidity in control cabinets.
Physical Dimensions and Mounting
The CPU measures 100 × 56 × 93 mm and weighs 0.849 kg. It occupies two slots on the X80 backplane. A 4 GB SD card (BMXRMS004GPF) is optional for data logging.
Why Choose the BMEH582040S for Your Safety System?
This CPU replaces older Quantum and Premium platforms with a modern ePAC architecture. It delivers SIL3 safety and hot standby redundancy in one module. The conformal coating extends service life in harsh environments. The active lifecycle status ensures long-term availability and support.
Integration with Existing Control Systems
The BMEH582040S works with X80 backplane communication modules, including BMENOC03xx for Ethernet/IP, BMENOS0300 for serial, BMENOR2200 for RIO, and BMENUA0100 for universal automation. This compatibility simplifies upgrades from legacy systems.
Selection and Purchase Advice
Before ordering, verify your rack type, power supply, and network protocol requirements. The BMEH582040S requires a 24 V DC supply and an X80 backplane. For programming, ensure you have EcoStruxure Machine Expert installed. SpareTechPLC stocks this module and can confirm current lifecycle status and availability. Contact them for replacement options and technical support.
Maintenance and Reliability
Inspect the module periodically for secure seating and clean airflow. Follow Schneider Electric’s safety manual for all maintenance activities. The conformal coating reduces contamination risks, but avoid solvents or disassembly. The redundant design minimizes downtime, protecting your ROI.
Frequently Asked Questions
What makes the BMEH582040S different from standard M580 CPUs?
It adds SIL3 safety certification and redundant Hot Standby architecture, which standard CPUs lack.
Can I use the BMEH582040S in an existing Quantum rack?
No, it requires an X80 Ethernet backplane. You must upgrade the rack for compatibility.
What programming software supports this CPU?
EcoStruxure Machine Expert, formerly Unity Pro XL, is the required software.
How many remote I/O racks can this CPU manage?
It supports up to 8 X80 remote I/O racks and 61 distributed devices.
Is the BMEH582040S still in active production?
Yes, the lifecycle status is active. Verify availability with SpareTechPLC before ordering.
