Introduction

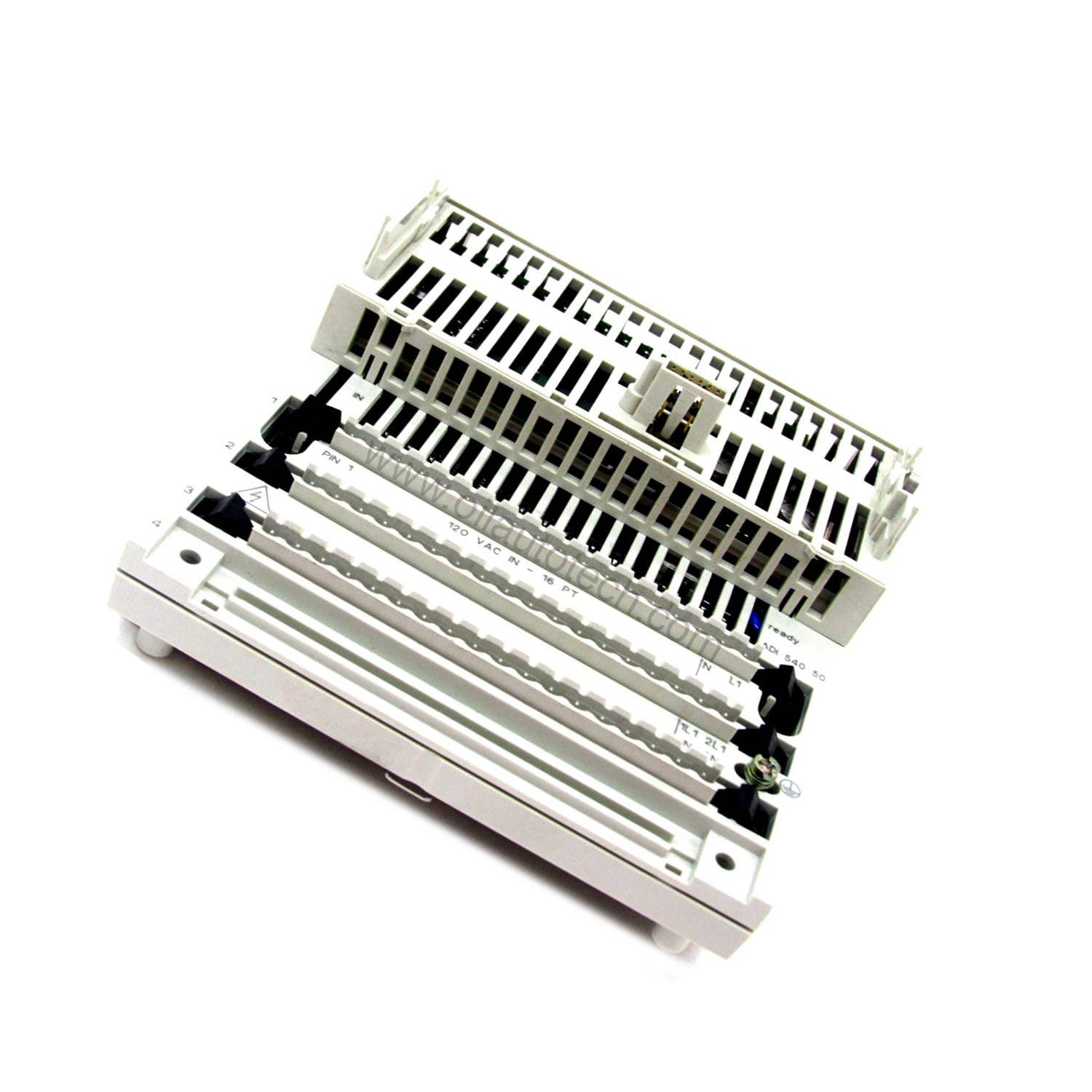

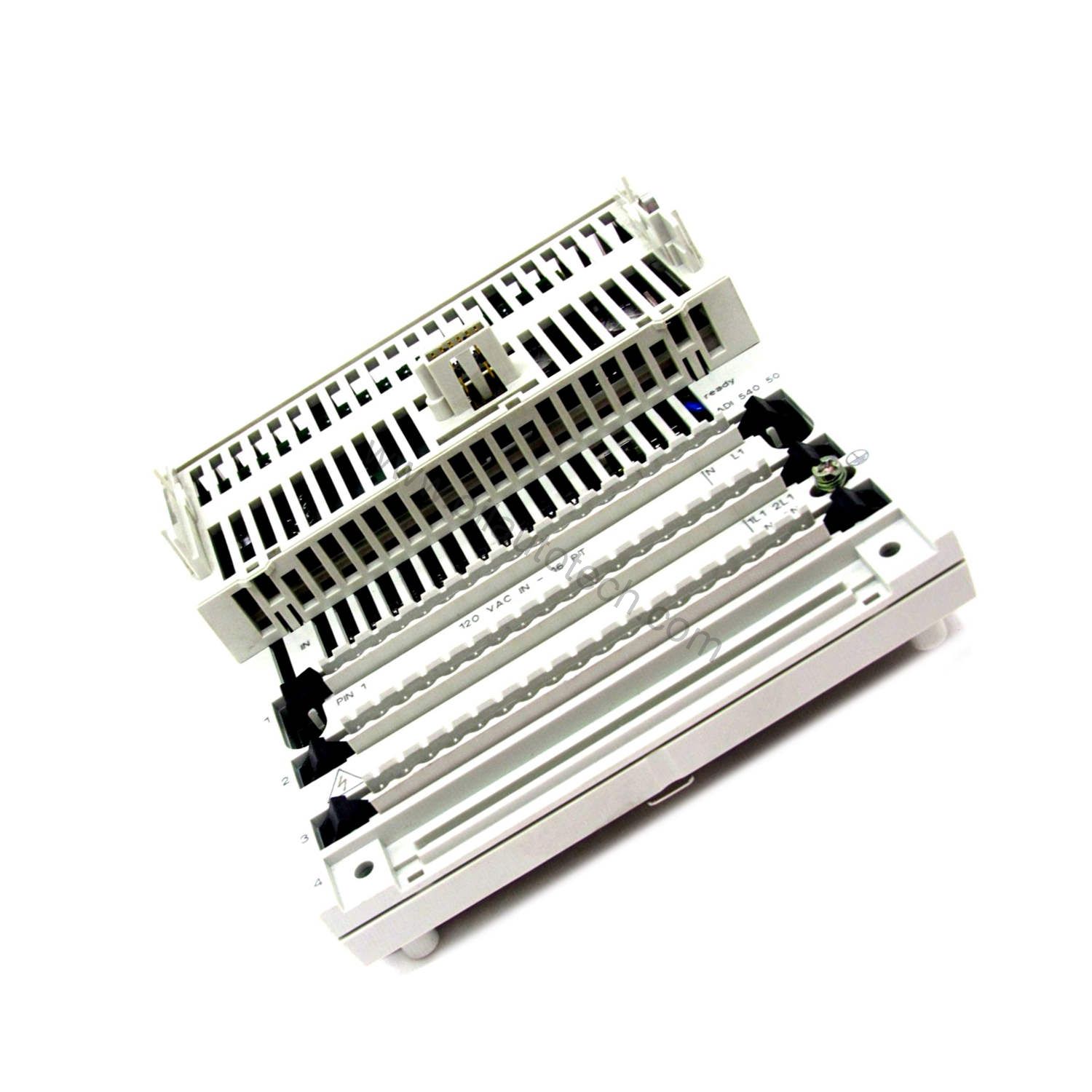

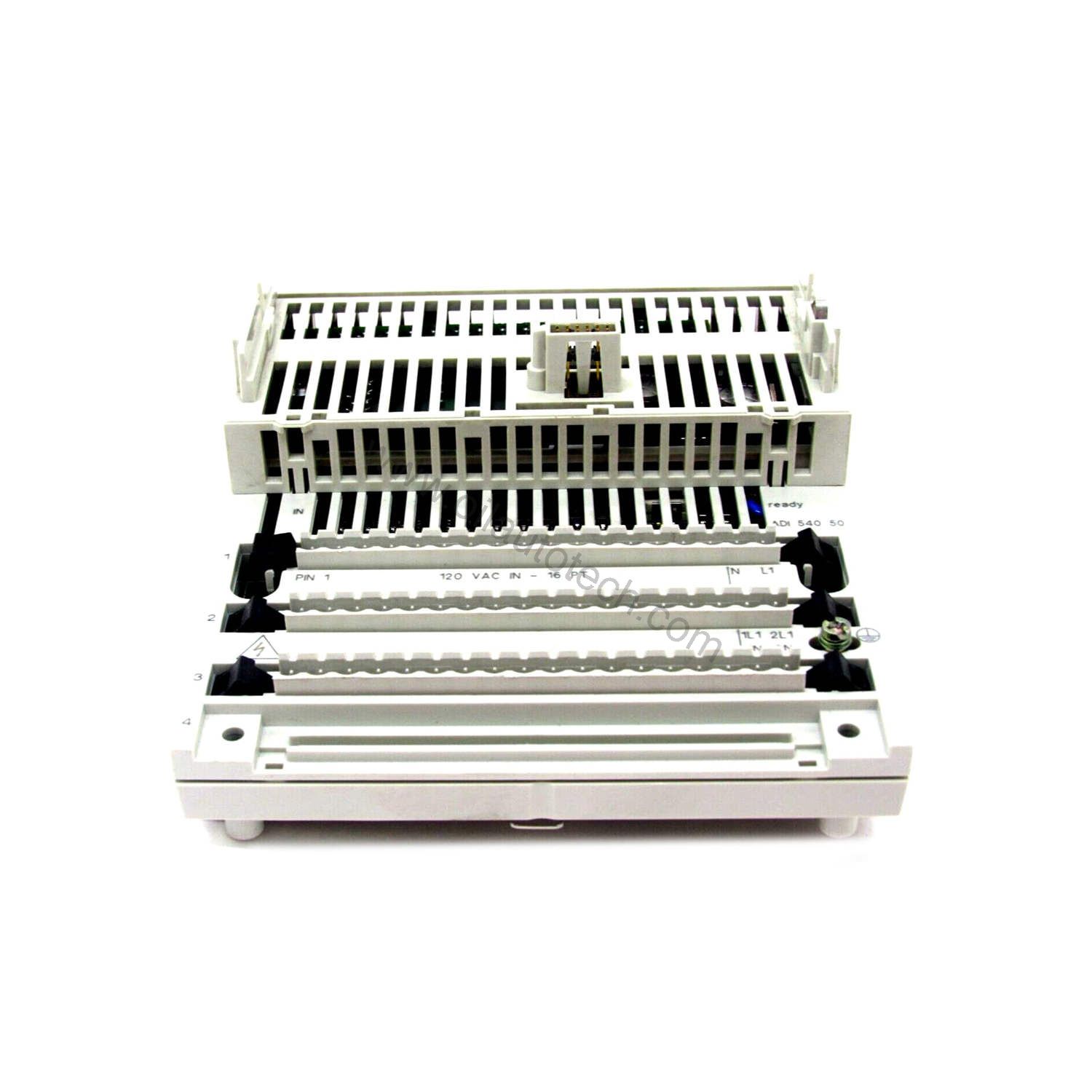

Downtime in a mid-level automation cell often traces back to an input base that cannot handle the plant’s real electrical environment. The Schneider 170ADI54050 solves that problem as a discrete input base in the Modicon Momentum automation platform. It carries 16 channels split into two groups of eight inputs and accepts 120V AC discrete input voltage. The unit also includes TC protective treatment, which helps it survive the humidity and temperature swings common on factory floors.
Technical Specifications
Channel Architecture and Input Logic
The 170ADI54050 organizes its 16 channels into two groups of eight inputs. This split layout lets you separate field devices by machine section or by function. The positive input logic suits control setups that expect a positive signal reference. Each channel has a dedicated LED, so technicians can confirm status without a meter.
Voltage and Frequency Behavior
The discrete input voltage is 120V AC, with input voltage limits from 85 to 132V AC. Network frequency ranges from 47 to 63 Hz, and the overall voltage range spans 0 to 132V. These tolerances matter when supply voltage sags during heavy load cycles.
Isolation and Environmental Ratings
Isolation between groups and between channels and the bus is 1780V AC. The operating temperature range is 0°C to 60°C, and storage temperature spans -40°C to 85°C. Maximum relative humidity is 95% without condensation. The unit measures 5.6 in (141.5 mm) high, 4.9 in (125 mm) wide, and 1.9 in (47.5 mm) deep, with a net weight of 0.626 lb (0.284 kg).
Applications
Conveyor and Material Handling Retrofit
A plant replacing aging input modules can drop the 170ADI54050 into a Modicon Momentum rack and reconnect 120V AC photoeyes and limit switches. The two-group layout keeps left and right conveyor zones electrically separate, which simplifies troubleshooting.
Packaging Line Upgrade
When a packaging cell adds sensors, the 16 channels absorb the extra points without a full panel redesign. The 85 to 132V AC window tolerates the voltage dips that occur when sealing bars and motors cycle on the same feeder.
Washdown-Adjacent Control Rooms
In rooms with high humidity but no direct spray, the TC protective treatment and 95% relative humidity rating support dependable operation. The 0°C to 60°C range fits most climate-controlled electrical rooms.
Installation and Setup
Mount the base in the Modicon Momentum platform according to Schneider Electric documentation. Terminals are labeled for power and each input, including (N)PW, (L1)PW, TB, and IN_DIS#1 through IN_DIS#16. Verify the supply stays within 85 to 132V AC and the network frequency stays between 47 and 63 Hz before energizing. Confirm positive input logic matches your field device wiring scheme. Use the 16 LEDs to validate each channel after power-up.
Compatibility and Integration
The 170ADI54050 belongs to the Modicon Momentum automation platform and functions as a discrete inputs base AC. It integrates with Momentum I/O assemblies that accept this base type. The 1780V AC isolation between channels and the bus protects the backplane from field transients. Because the part is returnable, buyers can order with confidence when confirming a replacement.
Selection Guide
Before ordering, verify your existing base is a discrete input base with 120V AC input voltage and 16 channels. Check that your Momentum rack accepts this form factor and that your field devices use positive input logic. Confirm the operating temperature of your enclosure stays within 0°C to 60°C. SpareTechPLC stocks this part and can help you confirm the correct configuration for your application.
Maintenance and Reliability
Inspect terminal connections periodically for looseness or corrosion. Keep the enclosure within the rated 0°C to 60°C range and below 95% relative humidity without condensation. Use the 16 channel LEDs during routine rounds to spot failed inputs early. Follow Schneider Electric’s safety manual for all service work. Do not disassemble the unit or clean internal components.
FAQs
What is the input voltage for the 170ADI54050?
It is a 120V AC discrete input base with input voltage limits of 85 to 132V AC.
How many channels does this base provide?
It provides 16 channels arranged in two groups of eight inputs.
What is the isolation rating?
Isolation is 1780V AC between groups and between channels and the bus.
What environmental conditions does it tolerate?
It operates from 0°C to 60°C and handles up to 95% relative humidity without condensation.
Does it include protective treatment?
Yes, it carries TC protective treatment.
