Upgrade Path: Moving Legacy Quantum and Premium Systems to the BMEH586040S

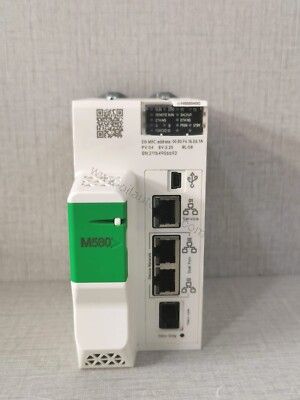

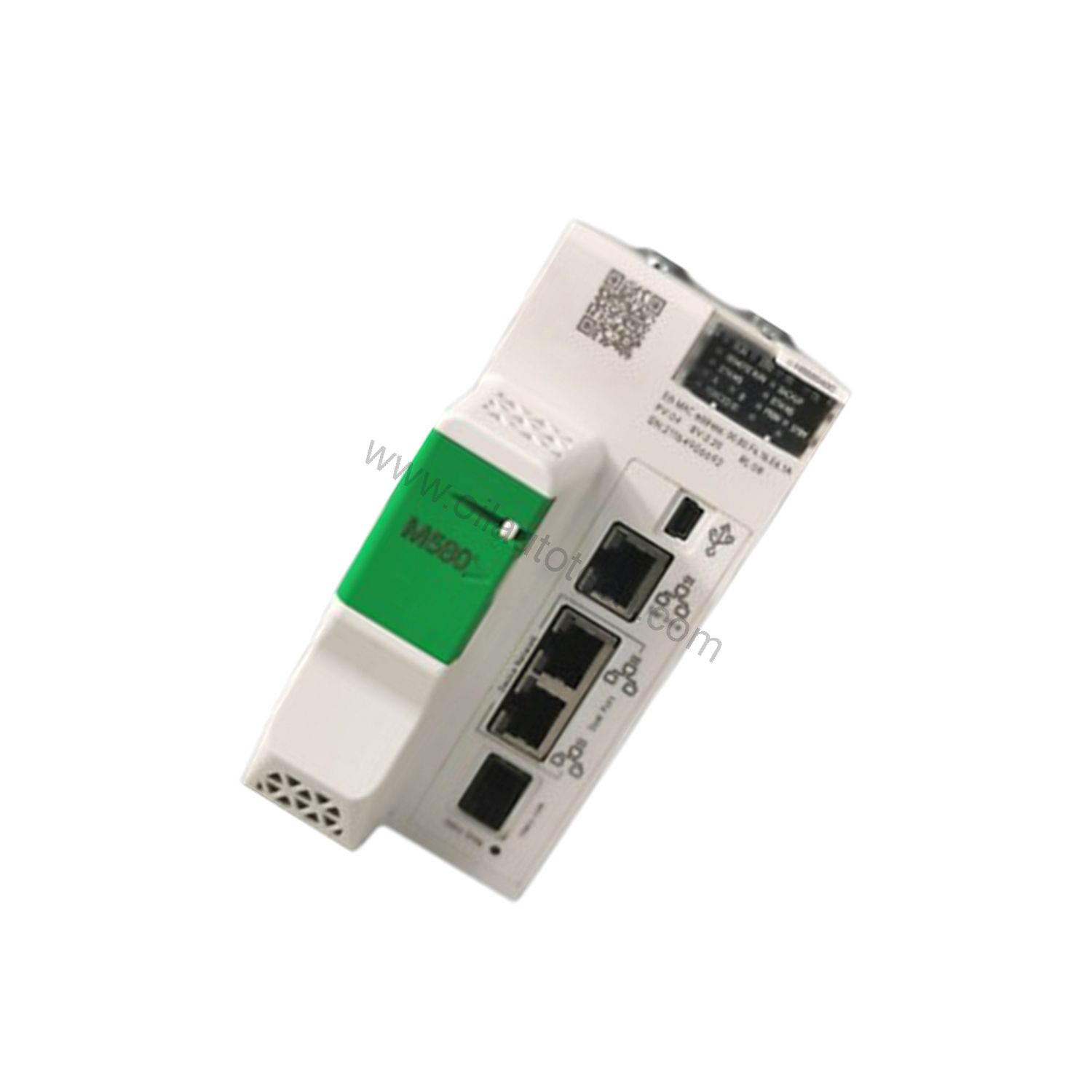

Plants still running Quantum or Premium controllers face rising maintenance costs and shrinking spare-part pools. The BMEH586040S from Schneider Electric gives those sites a direct migration route. It is a Modicon M580 redundant Hot Standby safety CPU rated Level 6 with SIL3 integrity. Schneider introduced this ePAC platform in 2014, and it replaces the older Quantum and Premium families. The module occupies 2 slots on an X80 Ethernet backplane.
What the Key Ratings Deliver on the Plant Floor
The processor runs an ARM dual-core design in a redundant Hot Standby architecture. One core controls the process while the partner stays synchronized, so a fault triggers a bumpless switchover. The 600 MHz clock speed and 64 MB integrated RAM handle large safety and control programs without splitting them across controllers. A separate 1 MB data memory region keeps runtime data organized.
Safety integrity reaches SIL3 under IEC 61508. That rating suits emergency shutdown, burner management, and other high-demand safety functions. Engineers program the CPU with EcoStruxure Machine Expert, formerly Unity Pro XL, so existing application code transfers with far less rework than a full platform change.
Scalable I/O and Network Coverage
The controller manages 31 remote I/O racks across X80 and Quantum I/O. It also supports 61 distributed devices and up to 128 PROFIsafe devices over PROFINET. X80 Ethernet backplanes accept 4, 6, 8, and 12 slot racks, which lets you size each cabinet to the process area.

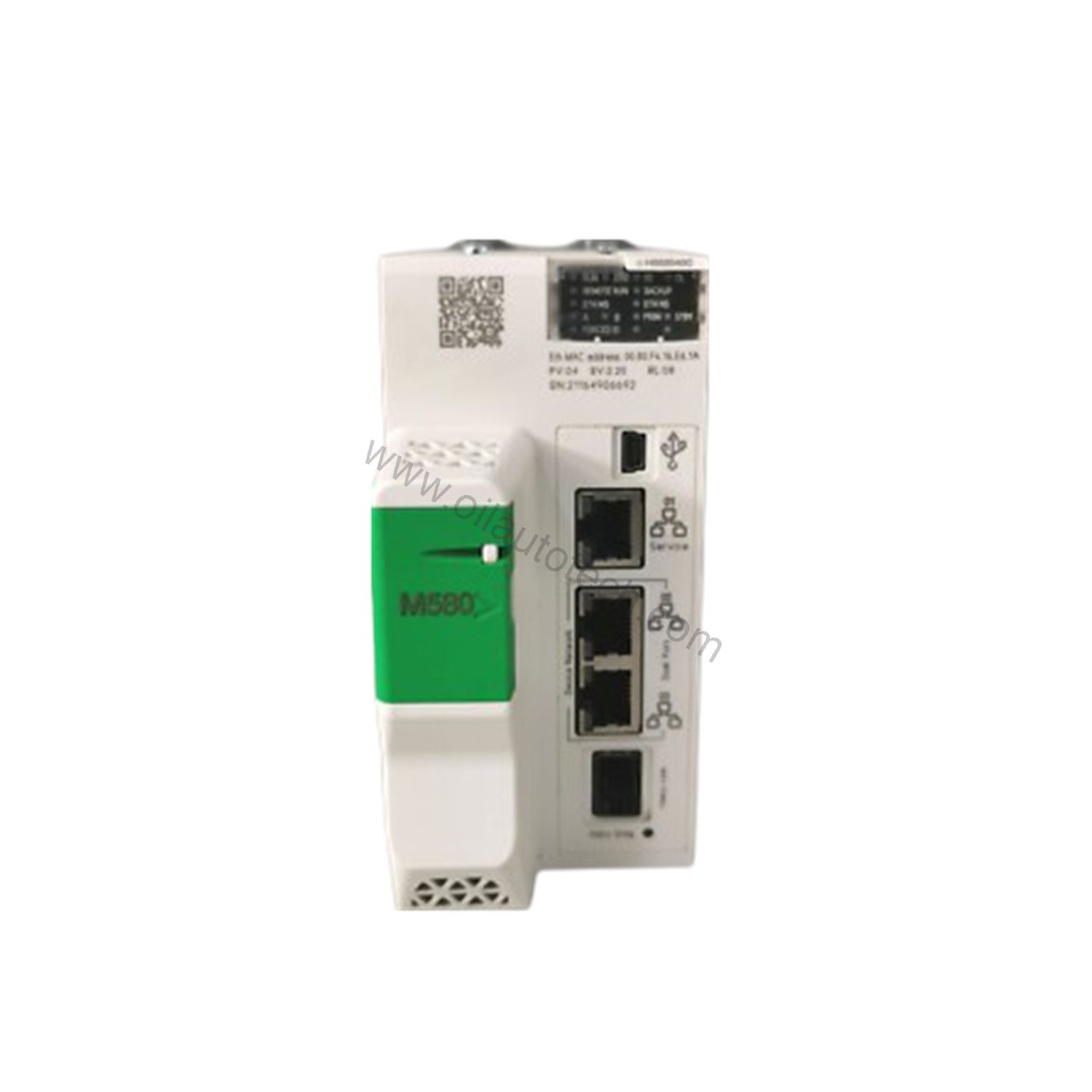

Built-in ports cover most topologies without extra hardware: one Ethernet service port, two Ethernet RIO/DIO ports, and a USB Mini-B port. Supported protocols include Modbus TCP/IP, EtherNet/IP, and PROFIsafe over PROFINET. When a site needs more connectivity, X80 backplane modules add EtherNet/IP, serial, RIO, or universal automation links.
BMEH586040S vs. Legacy and Non-Redundant Controllers
| Feature | BMEH586040S | Legacy Quantum/Premium | Standard non-redundant CPU |
|---|---|---|---|
| Architecture | Redundant Hot Standby | Varies by model | Single |
| Safety integrity | SIL3 / IEC 61508 | Not stated for this class | Typically not safety-rated |
| Processor | ARM dual-core, 600 MHz | Older generation | Single-core |
| Program memory | 64 MB RAM | Smaller | Varies |
| Remote I/O racks | 31 | Limited | Limited |
| PROFIsafe devices | 128 | Not supported | Not supported |
| Native Ethernet | Yes | Optional modules | Varies |
This comparison shows why migration pays off. A redundant SIL3 CPU removes the need for separate safety relays and a second controller pair. One BMEH586040S covers both duties, which cuts panel space, wiring, and spare-part inventory.
Electrical and Environmental Fit
The module draws power from a 24 V DC supply through the backplane, accepting 19.2 to 31.2 V DC. Power consumption is 8.6 W, and bus current is 360 mA at 24 V DC. That load suits standard control cabinets without dedicated power upgrades.
Operating temperature spans 0°C to +60°C, and storage temperature spans -25°C to +70°C. Relative humidity of 5% to 95% non-condensing covers most plant environments. The IP20 rating and conformal coating protect the board in dusty or humid control rooms. Physical dimensions are 100 × 56 × 93 mm, and the module weighs 0.849 kg. An optional 4 GB SD card, part BMXRMS004GPF, stores programs and data.
Installation and Commissioning Notes
Mount the CPU in an X80 Ethernet backplane and confirm the 2-slot footprint before wiring. Keep the 24 V DC feed within the stated range and separate it from high-voltage cabling. Follow the Schneider Electric safety manual for all configuration steps. After power-up, verify Hot Standby synchronization and test the switchover before releasing the line. Confirm that remote racks and PROFIsafe devices match the counts in your project.
Maintenance and Long-Term Reliability
Inspect the module periodically for loose connections, dust buildup, and cabinet temperature drift. The conformal coating resists moisture and contaminants, but the IP20 rating still requires a clean enclosure. Because the platform remains active, spare units stay available, which protects uptime and resale value. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Buyer Checklist Before You Commit
Confirm your rack type, slot budget, and safety rating needs. Check that your programming license covers EcoStruxure Machine Expert. Decide whether the optional SD card fits your backup strategy. Then contact SpareTechPLC to confirm stock, lead time, and replacement options for any legacy hardware you plan to retire.
