Why the BMEH584040S Belongs in Your Control Cabinet
Downtime in a safety-critical process costs far more than any controller. The Schneider BMEH584040S directly addresses that risk. It is a Modicon M580 redundant Hot Standby safety CPU with SIL3 integrity, built for plants that cannot afford a single point of failure.
This module runs an ARM dual-core processor at 600 MHz. One core handles active control while the other stays synchronized and ready. If the primary CPU faults, the standby takes over without losing the process. That architecture turns a catastrophic shutdown into a transparent switchover.
What the Core Specifications Deliver
Redundant Hot Standby architecture. Two CPUs operate in lockstep. The standby continuously mirrors program and data states, so failover is immediate. For continuous processes such as chemical dosing or pipeline pressure control, this design protects product quality and personnel.
SIL3 / IEC 61508 safety integrity. The BMEH584040S meets Level 4 performance. You can deploy it in emergency shutdown, burner management, and other safety instrumented functions without adding a separate safety controller.
16 MB program memory and 768 KB data memory. Large sequential and batch programs fit comfortably. You avoid memory-driven code compromises that force awkward program segmentation.
24 V DC supply at 8.0 W. The module draws 330 mA at 24 V DC. It accepts 19.2 to 31.2 V DC through the backplane, tolerating normal industrial voltage sag.
Scalable I/O for Plant-Wide Coverage
The CPU supports up to 16 remote I/O racks using X80 and Quantum I/O. It also manages 61 distributed devices over Ethernet. Compatible racks include 4, 6, 8, and 12-slot X80 Ethernet backplanes. The module occupies 2 slots.
This capacity suits mid-size to large process units. You can place I/O near field devices and keep home-run cabling short.
Communication That Fits Your Network

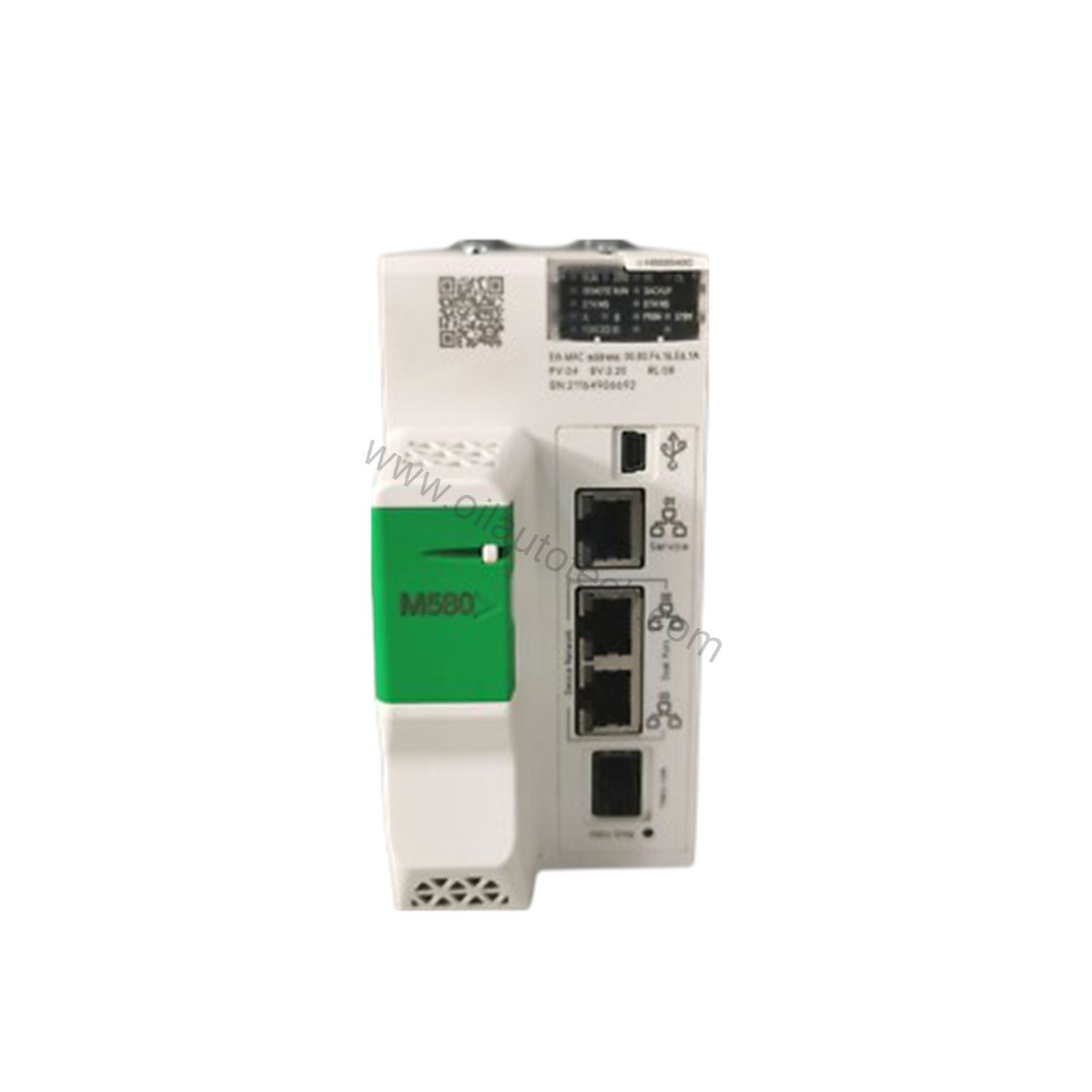

Built-in ports include one Ethernet service port, two Ethernet RIO/DIO ports, and one USB Mini-B. Supported protocols are Modbus TCP/IP, EtherNet/IP, and PROFIsafe over PROFINET. You can add X80 backplane communication modules for extra Ethernet/IP, serial, RIO, or universal automation links.
Environmental and Physical Profile
The BMEH584040S operates from 0°C to +60°C and stores from -25°C to +70°C. It handles 5% to 95% relative humidity, non-condensing. The IP20 rating suits clean control rooms and conformal coating adds protection against airborne contaminants. Dimensions are 100 × 56 × 93 mm and weight is 0.849 kg.
Programming and Lifecycle
You program the CPU with EcoStruxure Machine Expert, also known as Unity Pro XL. The platform is active and replaces older Quantum and Premium controllers. A 4 GB SD card (BMXRMS004GPF) is optional for data storage.
Upgrade Path and Buyer Checklist
If you run a legacy Quantum or Premium system, the BMEH584040S offers a modern migration target. Before ordering, confirm your rack type, I/O count, and network protocol needs. Verify that your power supply delivers 24 V DC within the 19.2 to 31.2 V DC range. Check that you have 2 free slots and the correct X80 backplane.
SpareTechPLC supplies this CPU and can help you confirm compatibility. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Maintenance for Long-Term Reliability
Inspect the module periodically for dust buildup and secure connections. Follow the manufacturer’s safety manual for all service activities. Because the CPU supports hot standby, schedule firmware checks during planned windows. Keep spare SD cards and communication modules on hand to reduce mean time to repair.
