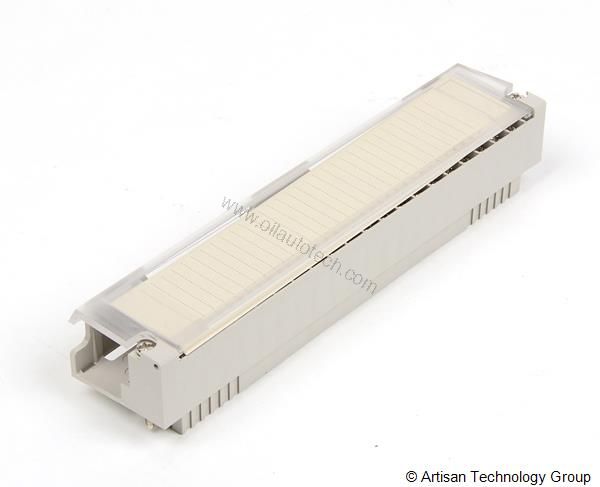

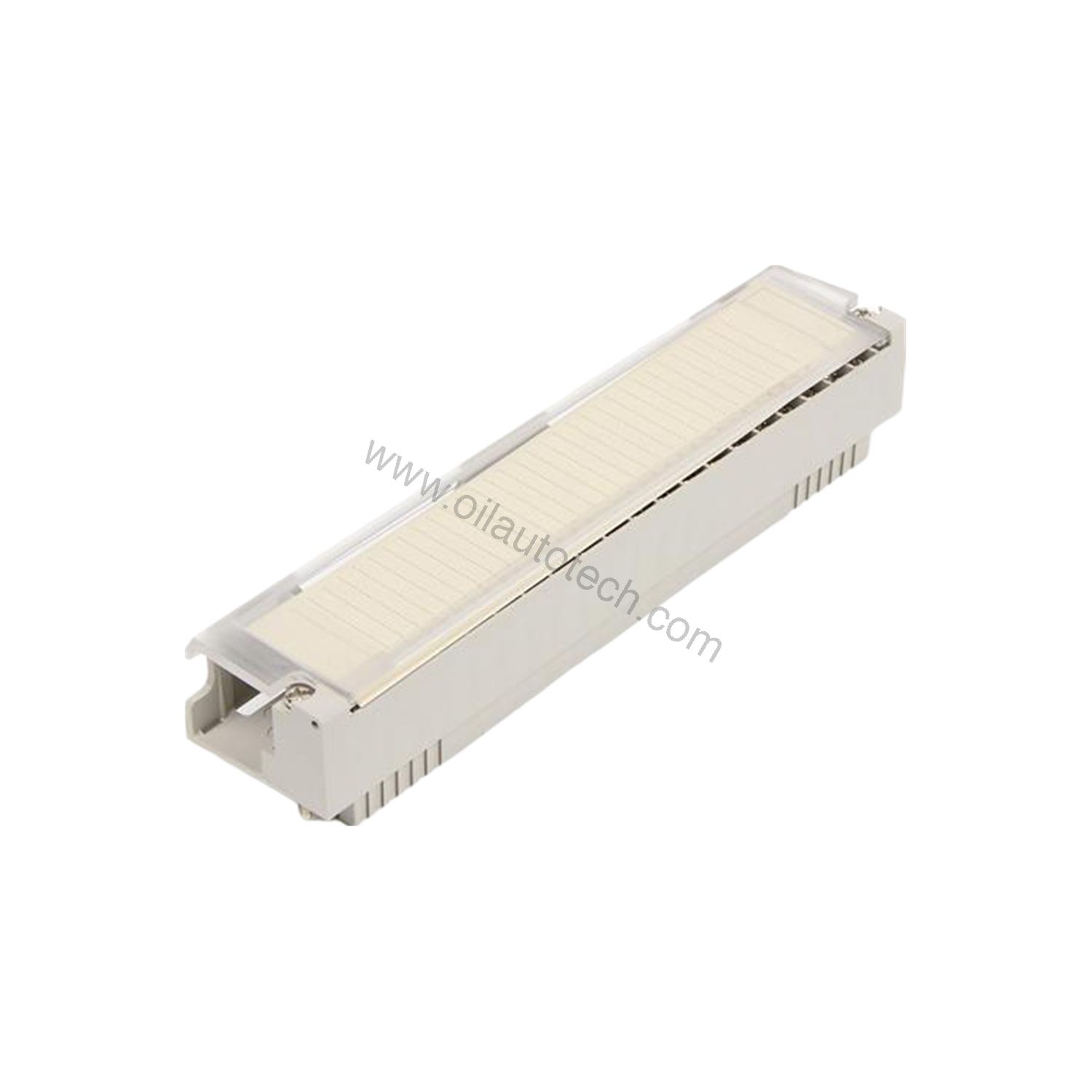

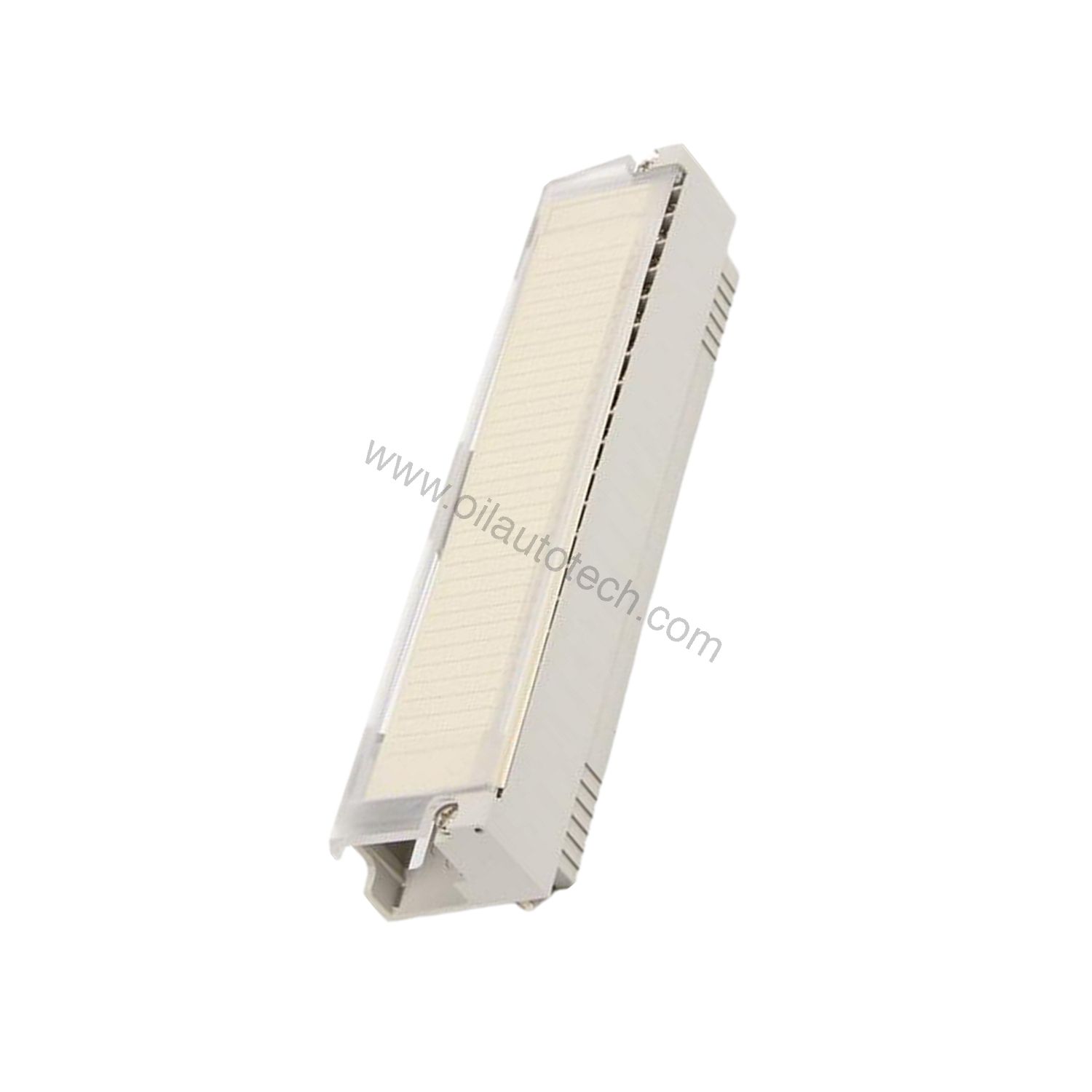

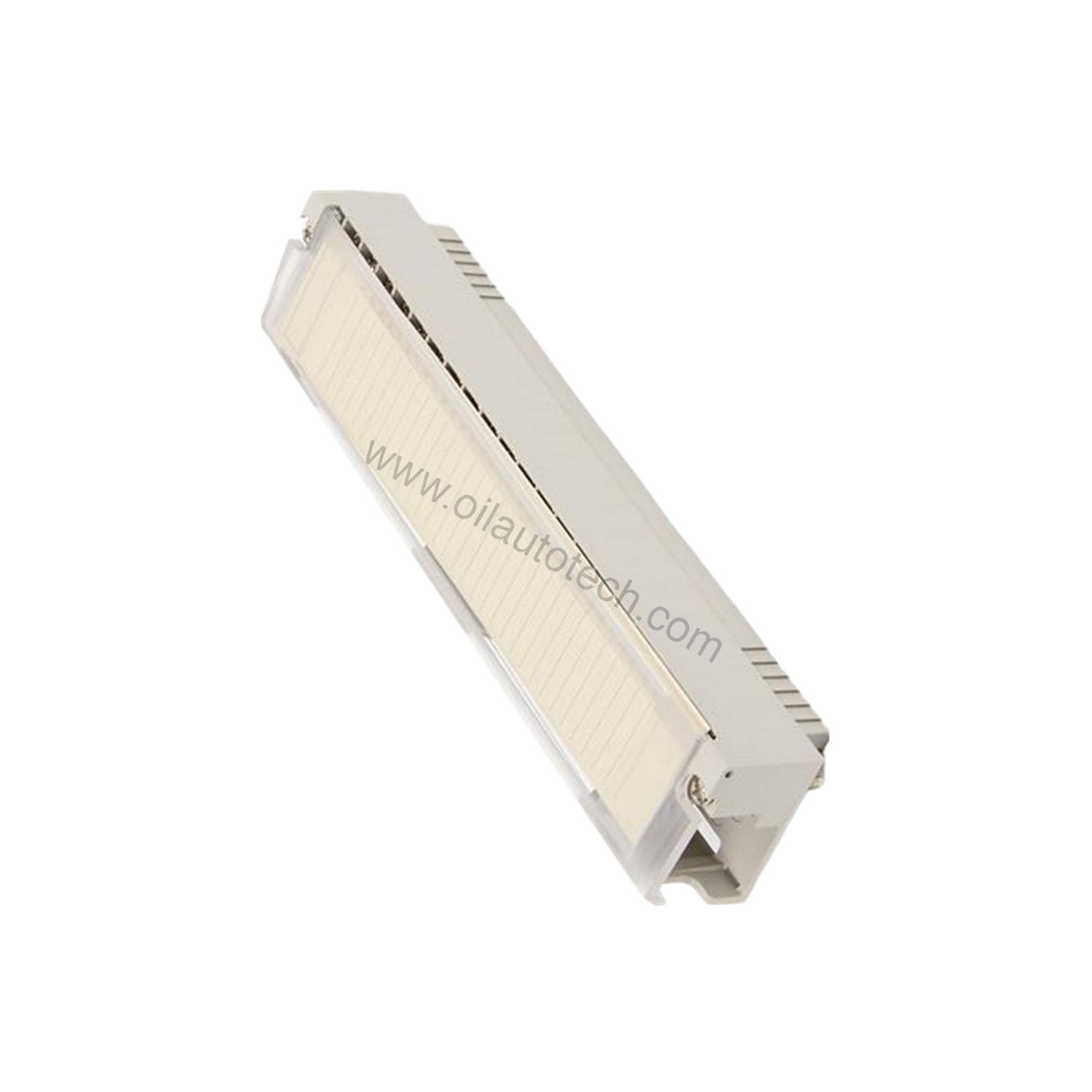

Why Engineers Still Specify the 140XTS00200
When a Modicon Quantum rack needs field wiring terminated, the 140XTS00200 does one job with zero drama. This genuine Schneider Electric screw terminal block carries 40 pins and mates with every 140 series I/O module. If your plant runs Quantum hardware, this is the interface between your field devices and the control system.
Schneider has moved this part to End of Sale, last verified 2026-09. That changes the buying conversation. You are no longer comparing catalogs; you are securing remaining stock for maintenance and legacy support. SpareTechPLC specializes in exactly this situation.
What the 140XTS00200 Actually Delivers
40-Pin Density in a Single Block
Forty termination points on one block means fewer discrete components to track, stock, and replace. For a Quantum rack with multiple I/O modules, that density simplifies both the bill of materials and the wiring schedule. One part number covers the connection needs of the full 140 series I/O range.
Screw Termination for Field Serviceability
Screw terminals remain the standard in heavy industry for a reason. Technicians can inspect, tighten, and re-terminate connections with basic tools. In plants where uptime depends on fast fault isolation, that serviceability matters more than exotic connector designs.
IP20 Protection
The IP20 rating suits cabinet-mounted installations where the terminal block sits behind an enclosure door. It keeps fingers out of live contacts while allowing normal airflow and access. This is an industrial control panel component, not a washdown device.
0.15 kg — Light Enough to Ship, Solid Enough to Last
At 0.15 kg, the block adds negligible load to a rack and ships economically. The weight also reflects a compact molded body that installs without strain on the mounting rail.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 140XTS00200 |
| Brand | Schneider Electric |
| Series | Modicon Quantum |
| Type | Screw terminal block |
| Pins | 40-pin |
| Compatibility | All 140 series I/O modules |
| Weight | 0.15 kg |
| Protection rating | IP20 |
| Lifecycle | Discontinued (End of Sale), last verified 2026-09 |
Where This Block Earns Its Place
Legacy Quantum Rack Maintenance
A water treatment plant runs a Quantum control system commissioned years ago. An I/O module needs replacement, and the existing terminal block shows heat cycling damage. Sourcing the 140XTS00200 keeps the rack in service without a full migration project. That is the core value here: extending the life of proven infrastructure.
Spare Parts Inventory for Critical Processes
A power generation site keeps shelf spares for every I/O point in its Quantum racks. Because this block fits all 140 series modules, one spare part number covers multiple module types. That reduces inventory complexity and speeds up emergency repairs.
Phased Migration Planning
An OEM building a replacement control panel for an older line needs to match the existing Quantum wiring scheme during the transition. The 140XTS00200 lets the team replicate the original interface while planning a future platform upgrade. It buys time without forcing an immediate capital project.
Installation and Setup Guidance
Mount the terminal block according to the Quantum rack documentation. Terminate field wiring with the correct screw torque specified by Schneider Electric for the mating module. Keep the block inside an enclosure that maintains the IP20 environment. Verify pin assignments against the I/O module wiring diagram before energizing. Because this is a discontinued item, confirm you have the correct revision for your rack before installation.
Maintenance and Reliability
Inspect screw terminals during scheduled shutdowns. Look for loose connections, discoloration, or corrosion that indicates heat or moisture ingress. Re-tighten to specification if needed. Keep spare blocks on the shelf; a failed terminal block can take an I/O channel offline until replacement arrives. Given the End of Sale status, proactive stocking is the reliability strategy.
Compatibility and Integration
The 140XTS00200 works with all 140 series I/O modules in the Modicon Quantum family. It does not introduce a new protocol or network layer; it is the physical wiring interface. If your system uses Quantum I/O, this block is the correct mating component. Confirm your module part number against the compatibility list before ordering.
Selection Checklist Before You Buy
- Confirm your I/O module belongs to the 140 series.
- Verify you need a 40-pin screw termination, not a different block style.
- Check your rack documentation for the correct terminal block reference.
- Ask SpareTechPLC about current stock levels, since the part is discontinued.
- Consider buying more than one unit for spares while supply lasts.
Frequently Asked Questions
Is the 140XTS00200 still available?
Schneider Electric lists it as Discontinued (End of Sale), last verified 2026-09. Availability now depends on distributor and surplus stock. Contact SpareTechPLC to confirm current inventory.
Which modules does this terminal block fit?
It is compatible with all 140 series I/O modules in the Modicon Quantum platform.
Can I use this block in a washdown environment?
No. The IP20 rating is intended for protected cabinet installations, not wet or dusty washdown areas.
What should I check before installing a replacement?
Verify the pin count, the module compatibility, and the wiring diagram for your specific Quantum rack. Follow Schneider Electric’s installation documentation.
Why buy a discontinued part instead of upgrading?
A migration project carries engineering cost, downtime, and validation effort. Keeping a proven Quantum rack running with the correct terminal block is often the faster and cheaper path, especially when the rest of the system remains serviceable.
