Why Engineers Choose the BMXDDM3202K for Mixed I/O Retrofits
When a control cabinet runs out of slot space, adding separate input and output cards forces expensive panel redesigns. The BMXDDM3202K from Schneider Electric solves that problem by combining 16 digital inputs and 16 digital outputs in a single Modicon X80 module. This high-density design saves rack space and simplifies wiring for M340 and M580 architectures.
As a replacement and upgrade option, this module fits directly into existing Modicon X80 racks. You keep your current terminal blocks and backplane, so commissioning time stays short. The module carries an active lifecycle status, which means Schneider Electric still supports it as a shared I/O platform for both M340 and M580 controllers.

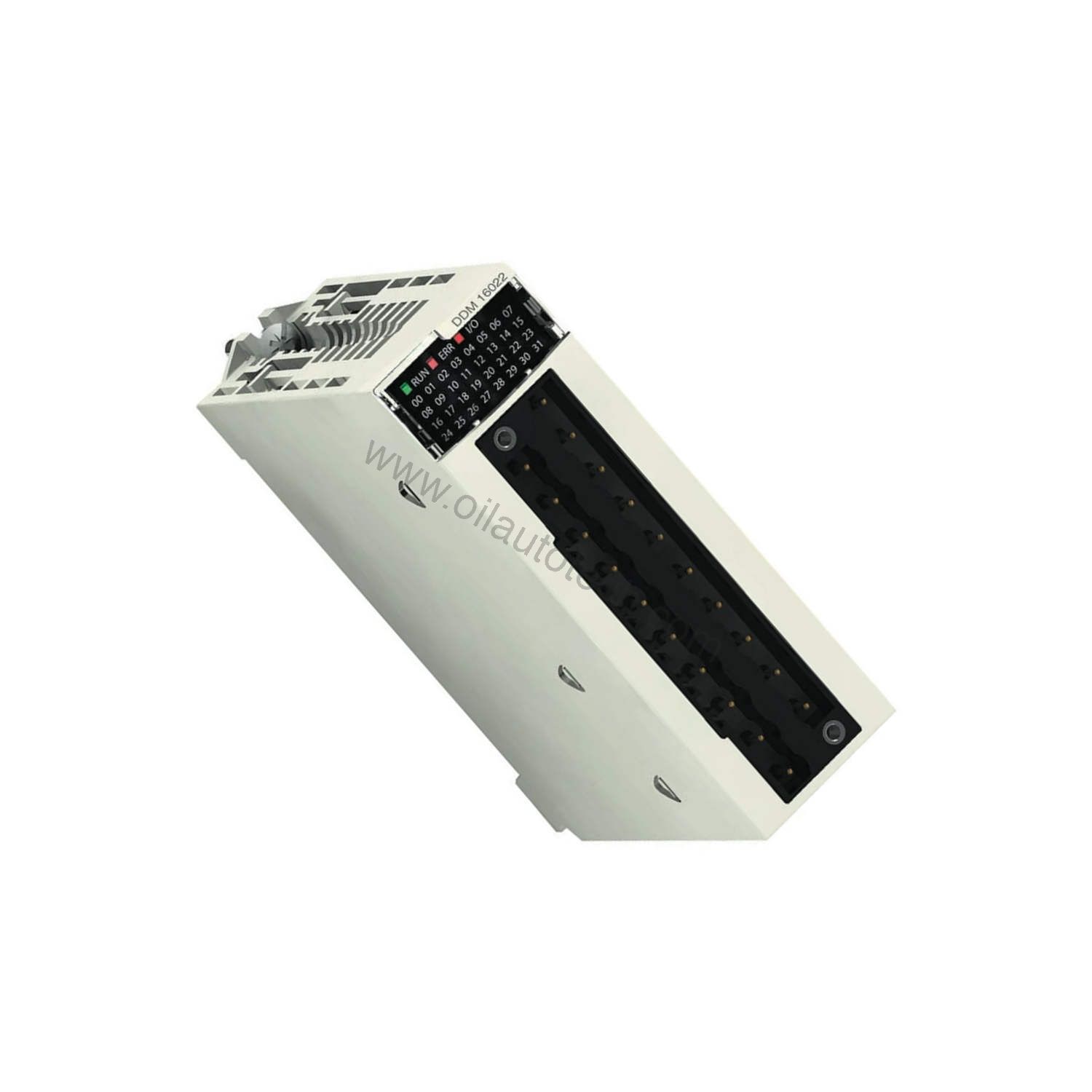

Inside the 32-Channel Mixed I/O Design
Digital Inputs and Transistor Outputs
The 16 DI channels accept 24 V DC signals, matching standard sensor and switch outputs in industrial panels. The 16 DO channels use transistor outputs rated for 24 V DC, giving fast switching without mechanical wear. Because both sections share one 40-pin terminal block, field wiring stays compact and organized.
Electrical Load and Power Budget
The module draws 4.3 W and requires 180 mA at 24 V DC from the bus. That low bus current matters when you calculate power supply headroom for a full rack. Group-to-group isolation separates input and output groups, which reduces cross-talk between field devices and protects the controller side from wiring faults.
Physical Footprint and Environmental Limits

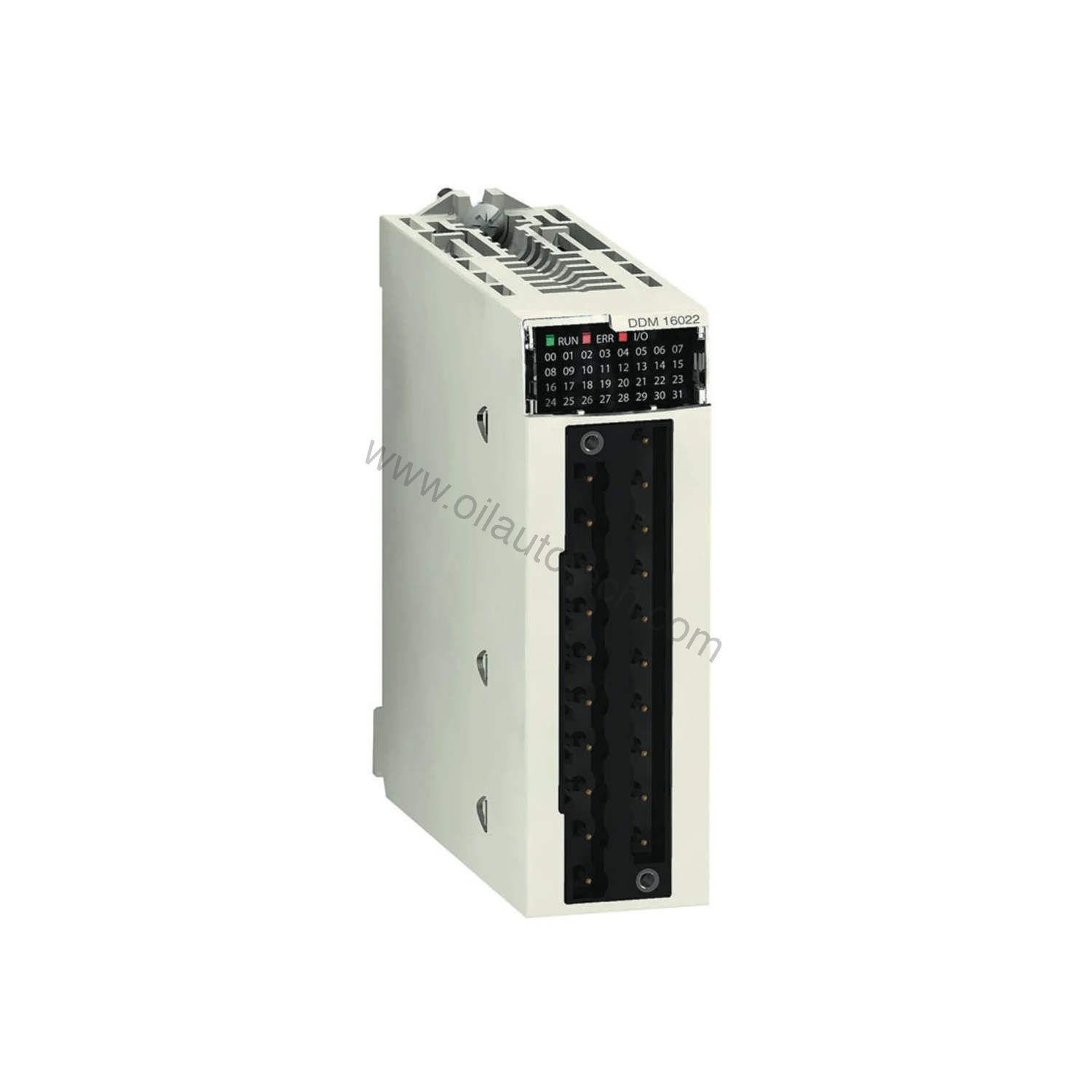

At 100 × 28 × 93 mm and 0.18 kg, the module occupies a narrow slice of DIN rail space. The IP20 rating suits clean control cabinets, and the operating range of 0 °C to +60 °C covers most factory floors. Storage from -25 °C to +70 °C and 5% to 95% non-condensing humidity keep the unit stable during shipping and shutdown periods.
Where This Module Fits Best
Packaging and Material Handling
A packaging line often needs photo-eye inputs and solenoid outputs in the same cabinet. The BMXDDM3202K handles both on one card, which reduces spare-part inventory. Maintenance teams stock one module instead of two separate I/O cards.
Water Treatment and Pump Control
Level switches and valve commands run on 24 V DC in many water plants. Group-to-group isolation helps protect sensitive input circuits when output wiring picks up noise from pump starters. The module status LED gives technicians a fast visual check during troubleshooting.
Upgrade Path from Older I/O
Plants moving from legacy platforms to M340 or M580 can standardize on Modicon X80 I/O. Because this module is active and shared across both controllers, you can reuse it if you later migrate the CPU. That protects your I/O investment and shortens future upgrade projects.
Installation and Setup Notes
Mount the module in a Modicon X80 rack and secure the 40-pin terminal block firmly. Keep input and output wiring separated where possible, and respect the 24 V DC supply and 180 mA bus current limits. Verify that cabinet temperature stays within 0 °C to +60 °C and that humidity remains non-condensing. Follow Schneider Electric’s installation manual for grounding and torque values.
Maintenance and Long-Term Reliability
Transistor outputs have no moving contacts, so wear points are minimal. Inspect terminal connections periodically for looseness and check the module status LED during routine rounds. Keep the cabinet free of conductive dust because the IP20 rating does not protect against water or fine particles. Store spare units between -25 °C and +70 °C to preserve internal components.
Compatibility and Integration

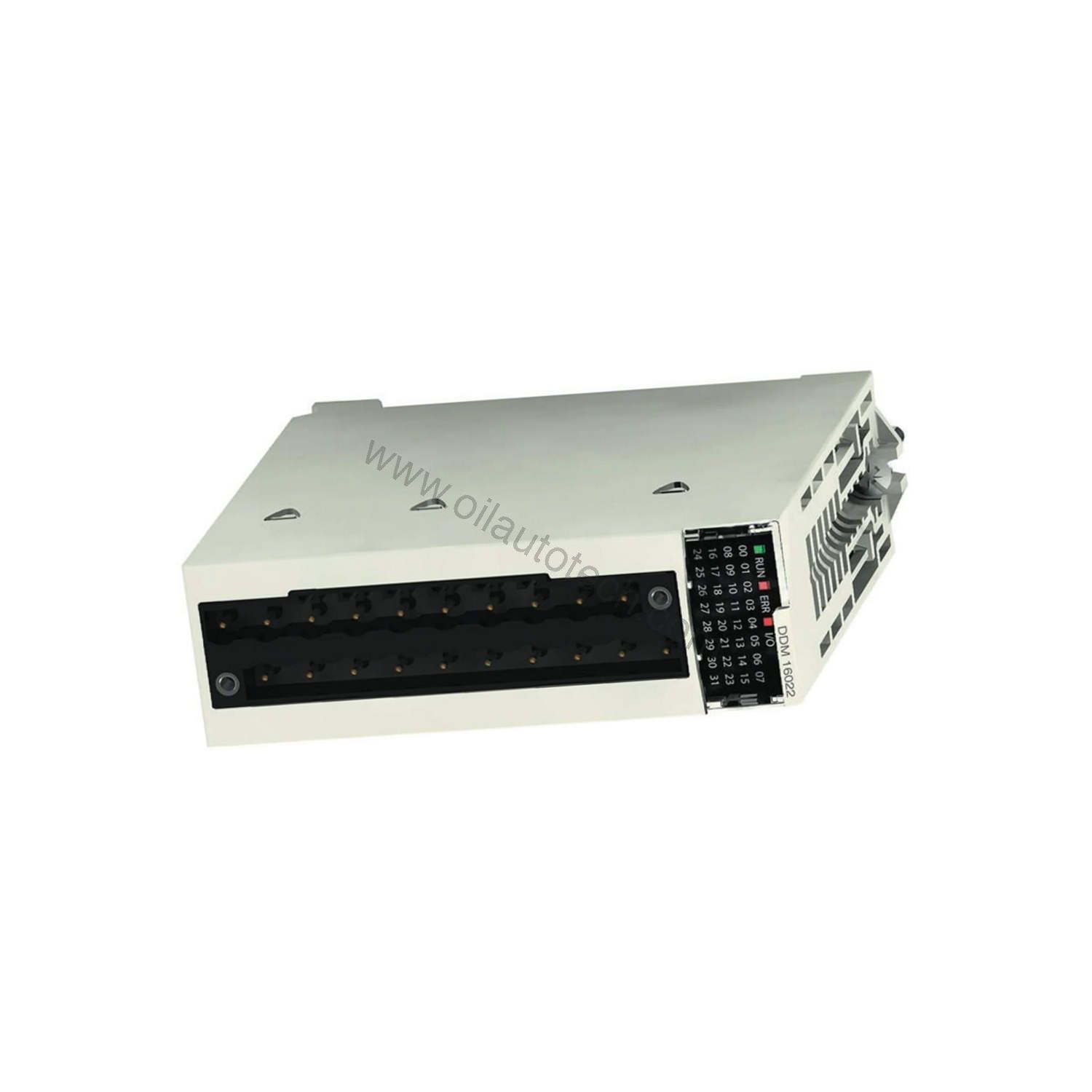

The module works with Modicon M340 and M580 controllers through the X80 backplane. It uses a 40-pin terminal block for field connections and reports status through a front LED. Group-to-group isolation supports mixed signal environments. Confirm your rack model and power budget before ordering, and contact SpareTechPLC for help matching the module to your existing I/O configuration.
What to Verify Before You Buy
Check that your application needs 16 DI and 16 DO channels at 24 V DC. Confirm your rack accepts Modicon X80 modules and that the 4.3 W load fits your power budget. Verify cabinet conditions meet IP20, 0 °C to +60 °C, and 5% to 95% non-condensing humidity. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Can the BMXDDM3202K replace two separate I/O cards?
Yes. It provides 16 digital inputs and 16 transistor outputs in one module, so it can replace a dedicated input card and a dedicated output card in a Modicon X80 rack.
What supply voltage does this module need?
It operates on 24 V DC and draws 180 mA from the bus with 4.3 W power consumption.
Does it work with both M340 and M580 controllers?
Yes. Schneider Electric lists it as an active shared I/O platform for M340 and M580 systems.
How many wires can the 40-pin terminal block handle?
The 40-pin terminal block supports the 32 I/O channels plus common connections in a high-density layout.
What environmental conditions does it tolerate?
It operates from 0 °C to +60 °C, stores from -25 °C to +70 °C, and handles 5% to 95% relative humidity without condensation.
