Is Your Advantys STB Island Still Running on a Discontinued Network Interface?

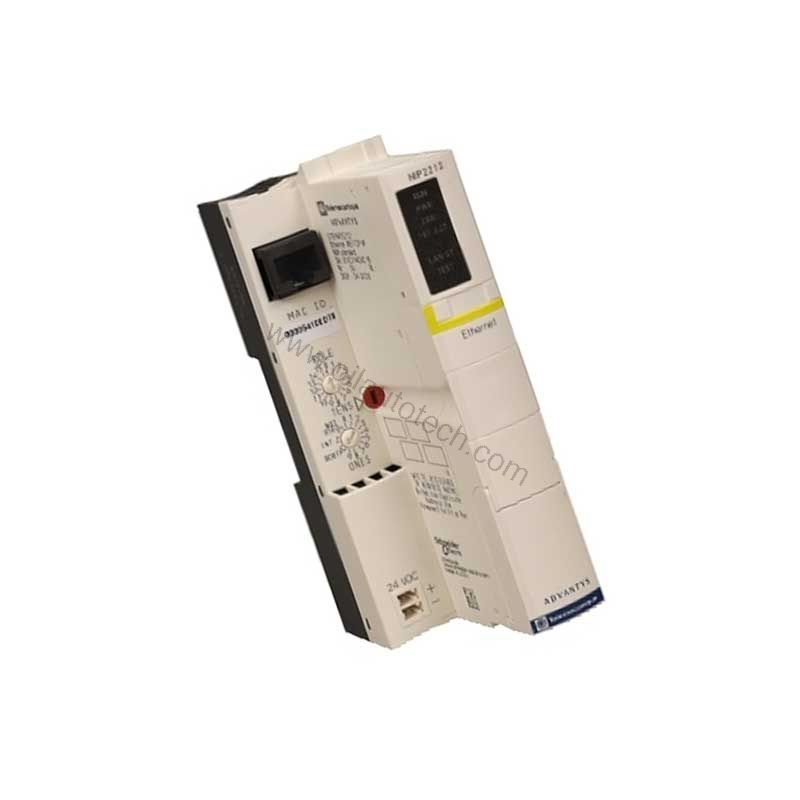

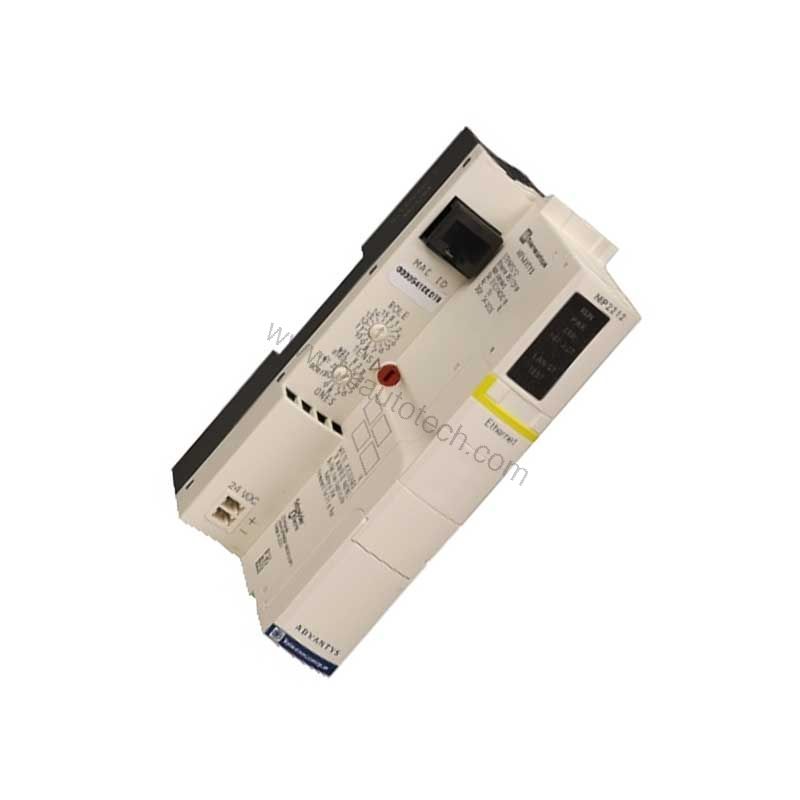

When a network interface module fails, an entire I/O island can go dark. That is the reality many maintenance teams face with the Schneider STBNIC2212, a standard network interface module (NIM) from the Advantys STB series. This module links an STB island to an EtherNet/IP control network and supports up to 32 addressable I/O modules. Because the product is discontinued and superseded by the Modicon X80 range, sourcing a tested spare is often the fastest way to keep production running.
What the STBNIC2212 Does on Your Network
The STBNIC2212 acts as the communication gateway for an Advantys STB island. It carries one RJ45 port plus an RS232 port (HE-13 / 8-way female) for local connection. The module speaks EtherNet/IP and IEEE 802.3, with a transmission rate of 10/100 Mbit/s. In practice, that means the island can join a standard Ethernet control architecture without a separate gateway. The NIM also feeds the island logic bus with 5.25V DC at 1.2 A, powering the connected I/O modules.
Key Specifications at a Glance
| Parameter | Value |
|---|---|
| Built-in ports | 1 x RJ45 + RS232 (HE-13 / 8-way female) |
| Protocols | EtherNet/IP, IEEE 802.3 |
| Transmission rate | 10/100 Mbit/s |
| Supply voltage | 24V DC (SELV) |
| Logic bus output | 5.25V DC, 1.2 A |
| Addressable I/O modules | Max 32 per island |
| Protection rating | IP20 |
| Dimensions (H×W×D) | 128.3 × 70 × 40 mm |
| Weight | 0.145 kg |
Replacement and Upgrade Paths
Because the STBNIC2212 is discontinued and superseded by the Modicon X80 range, buyers usually face two choices: locate a compatible spare or plan a migration. Keeping a spare on the shelf reduces downtime risk while a migration is scheduled. The compact 128.3 × 70 × 40 mm housing and 0.145 kg weight make storage and shipping straightforward. For teams comparing options, the ROI case is simple: one verified spare can prevent hours of unplanned stoppage.
Where This Module Fits
Packaging and Material Handling
On a packaging line, an STB island may collect sensor and actuator signals near the conveyor. The STBNIC2212 passes that data to an EtherNet/IP controller at 10/100 Mbit/s. If the NIM fails, the line stops.
Automotive Assembly Cells
In assembly cells, distributed I/O reduces wiring runs. The NIM supports up to 32 I/O modules, so one island can serve a dense cluster of devices.
Water and Wastewater Panels
With a 24V DC (SELV) supply and IP20 rating, the module suits cabinet-mounted installations where a clean, protected environment is available.
Installation and Setup Notes
Mount the module inside a suitable enclosure that maintains the IP20 protection level. Connect the RJ45 port to the EtherNet/IP network and use the RS232 port for local access as needed. Apply a 24V DC (SELV) supply and confirm the logic bus output reaches the connected I/O modules. Follow Schneider Electric’s published installation documentation for wiring and configuration details.
Maintenance and Reliability
Check the module and its connections during routine panel inspections. Verify that cabinet ventilation keeps the environment within the enclosure’s design limits. Because operating and storage temperature values are not available in the source data, confirm environmental suitability with SpareTechPLC before deployment. Keep spare units in anti-static packaging to protect the electronics.
Compatibility and Integration
The STBNIC2212 integrates with EtherNet/IP networks and IEEE 802.3 infrastructure. It manages up to 32 addressable I/O modules per island, making it a fit for distributed architectures built around the Advantys STB series. Verify controller compatibility and network design before ordering.
What to Verify Before You Buy
Confirm your existing part number, the island configuration, and the required port arrangement. Since the STBNIC2212 is discontinued, availability changes quickly. Contact SpareTechPLC to confirm current stock, condition, and replacement options. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Is the STBNIC2212 still in production?
No. The data shows it is discontinued and superseded by the Modicon X80 range. Contact SpareTechPLC for availability.
How many I/O modules can it support?
It addresses a maximum of 32 I/O modules per island.
What protocols does it use?
It supports EtherNet/IP and IEEE 802.3 at 10/100 Mbit/s.
What power supply does it need?
It requires a 24V DC (SELV) supply and provides a 5.25V DC, 1.2 A logic bus output.
Can I use it as a direct replacement?
It fits Advantys STB islands, but confirm your exact configuration with SpareTechPLC before ordering.
