Is Your Distributed I/O Architecture Holding You Back?

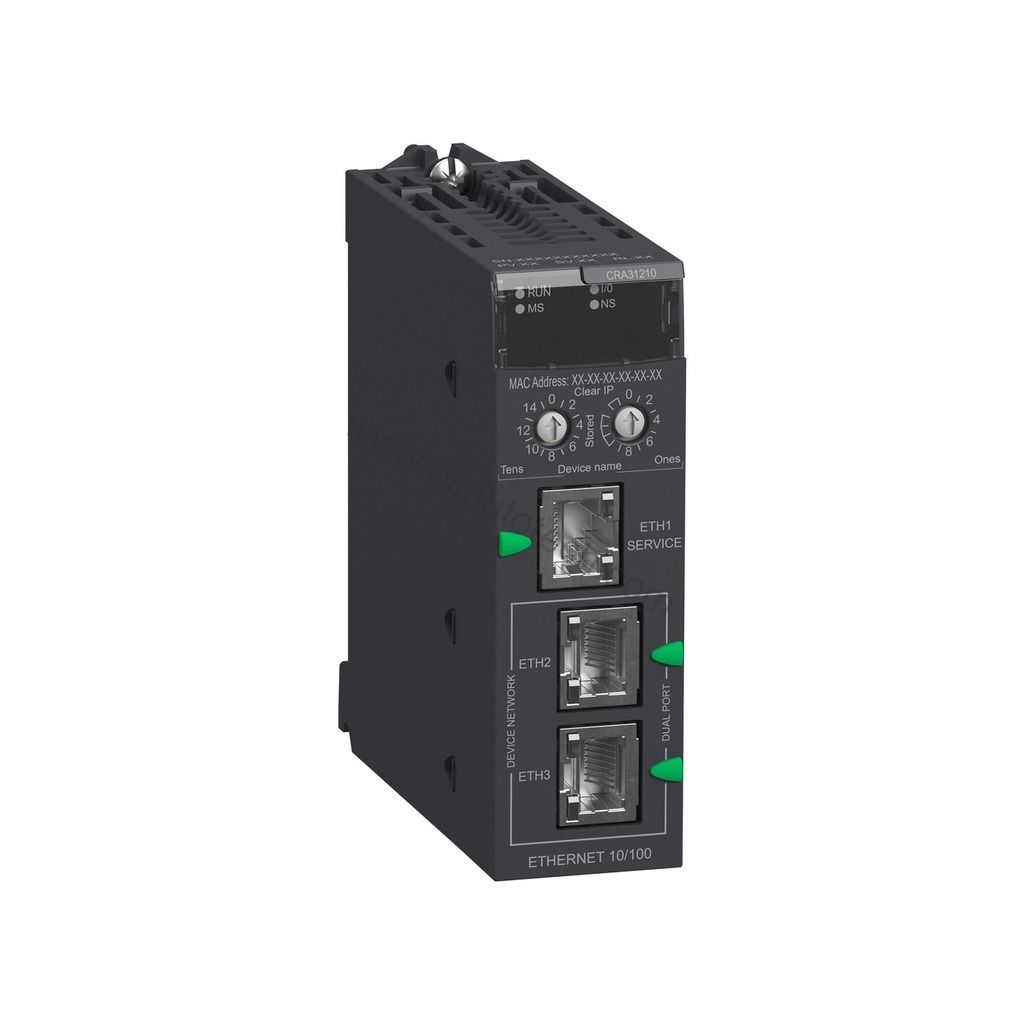

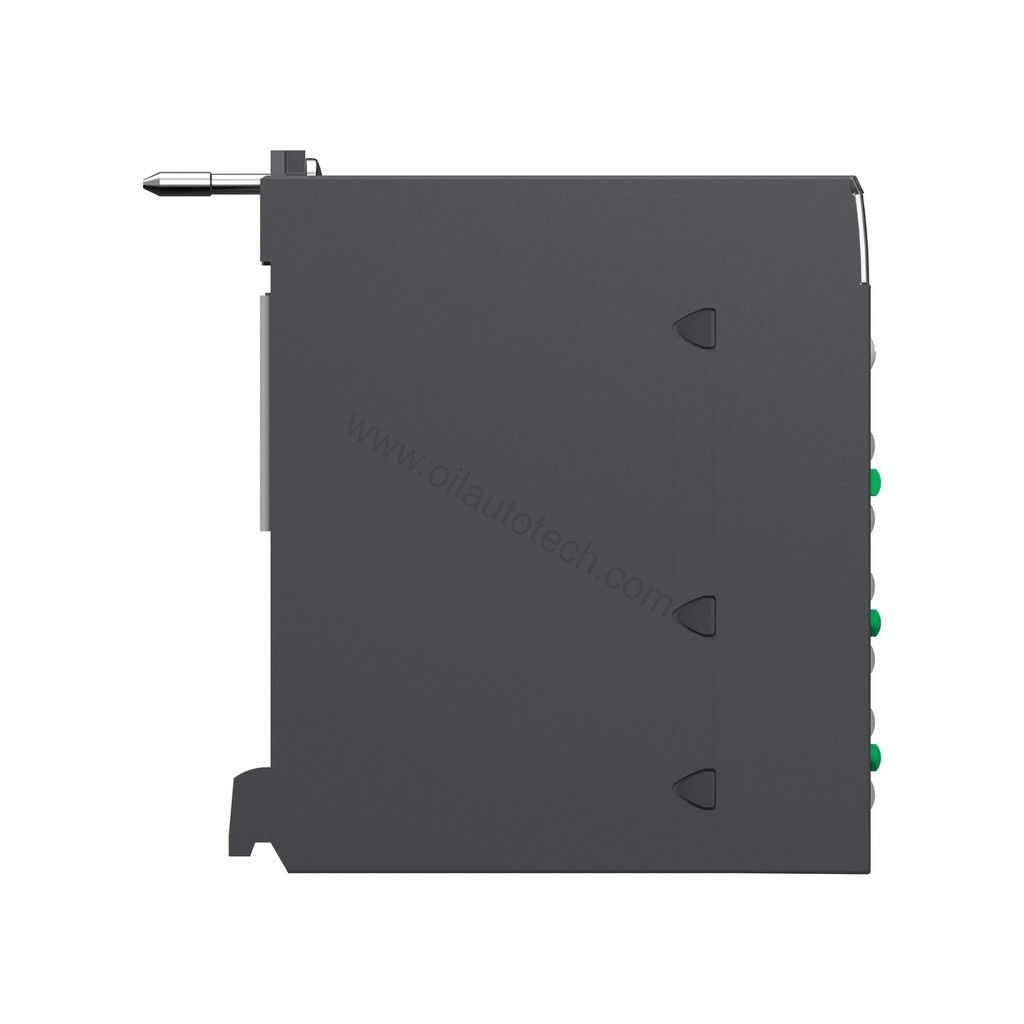

Legacy remote I/O drops often force engineers into costly rewiring or full rack replacements. The BMXCRA31210 from Schneider Electric solves that problem directly. As a Modicon X80 Ethernet RIO drop adapter, it connects an X80 remote rack to an M340 or M580 CPU over an Ethernet RIO network. This single-slot module turns a local I/O rack into a fully networked drop, so you keep existing modules while gaining modern Ethernet connectivity.
What Makes This Adapter a Smart Replacement Choice
When an older drop adapter fails, the entire remote rack goes offline. That downtime hits production hard. The BMXCRA31210 restores communication without forcing a full platform migration. It occupies one slot on the X-bus or BMEXBP Ethernet backplane and draws power directly from the backplane at 24 V DC. With 4.8 W power consumption and 200 mA bus current, it adds minimal load to your existing power budget.
Technical Specifications That Matter

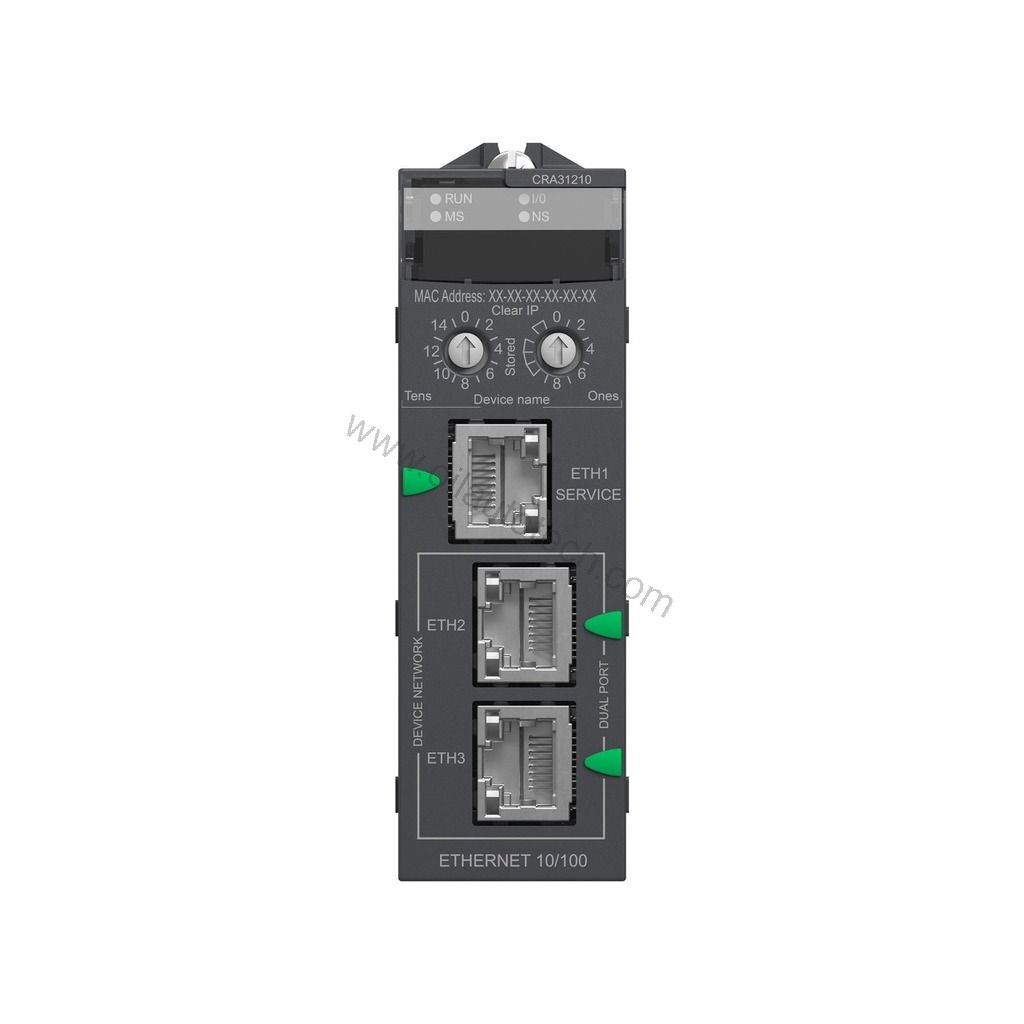

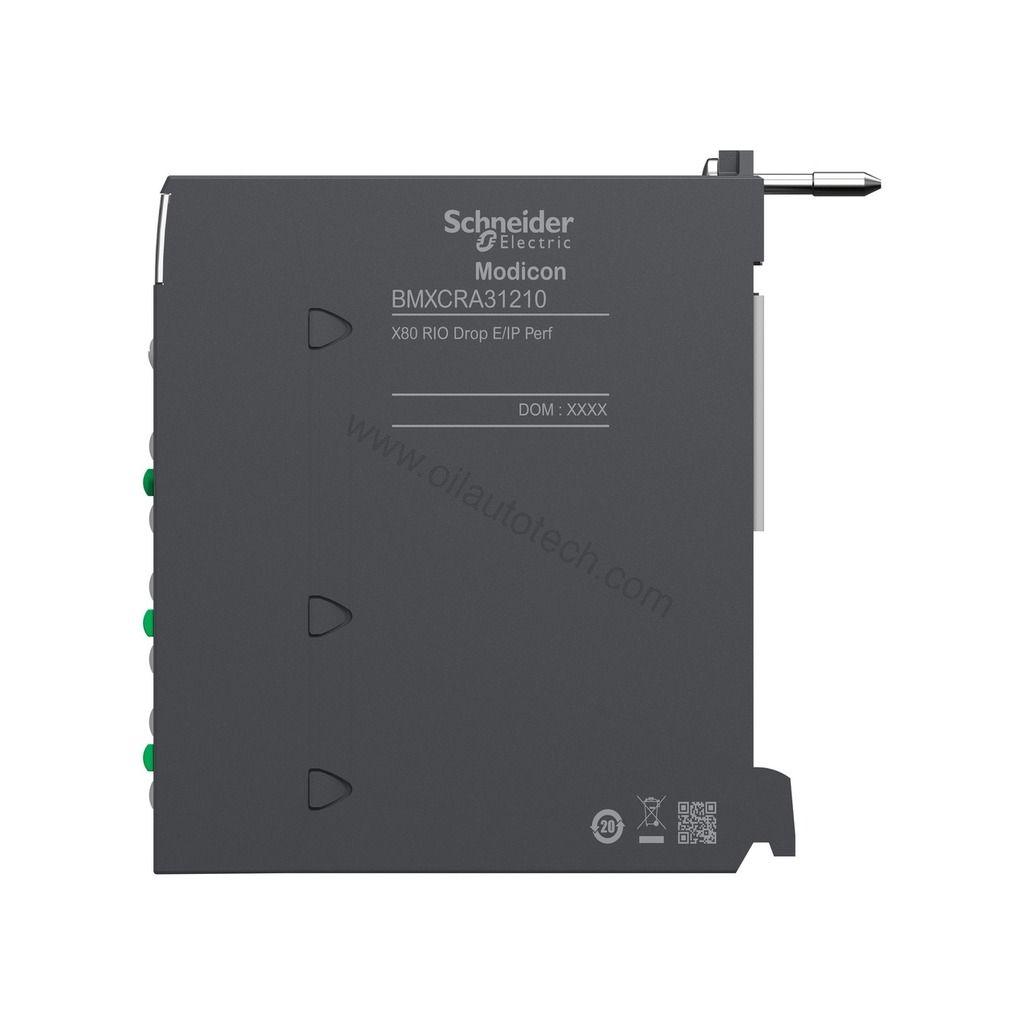

Two integrated Ethernet RJ45 ports support 10/100 Mbps and act as a built-in switch. This design enables line or daisy-chain topology and RSTP ring configurations. Diagnostic LEDs give technicians fast visual status checks during commissioning and troubleshooting. The adapter speaks both EtherNet/IP and Modbus TCP/IP, so it fits mixed-protocol environments without extra gateways.
| Specification | Value |
|---|---|
| Model | BMXCRA31210 |
| Brand | Schneider Electric |
| Series | Modicon X80 |
| Type | Ethernet Remote I/O drop adapter |
| Ethernet Ports | 2x RJ45, 10/100 Mbps, integrated switch |
| Protocols | EtherNet/IP, Modbus TCP/IP |
| Supply Voltage | 24 V DC via backplane |
| Power Consumption | 4.8 W |
| Bus Current | 200 mA @ 24 V DC |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| Dimensions (HxWxD) | 100 x 28 x 93 mm |
| Weight | 0.15 kg |
Where This Adapter Fits Best
Automotive assembly lines rely on M580 controllers with distributed X80 drops along the conveyor. The BMXCRA31210 keeps those drops online through RSTP ring redundancy. If one Ethernet segment breaks, the ring heals and production continues.
Water treatment plants often run M340 CPUs across wide physical areas. This adapter lets operators place X80 I/O racks near pumps and valves, then connect back over a single Ethernet cable. Modbus TCP/IP support means existing SCADA systems can poll data without protocol conversion.
Food and beverage packaging lines need fast changeovers. The dual-port switch simplifies daisy-chaining multiple drops, reducing cable runs and installation time.
Installation and Setup Guidance
Mount the adapter in the first slot of an X80 rack on a BMEXBP Ethernet backplane. Confirm the backplane supplies 24 V DC and that total bus current stays within the power supply rating. Connect Ethernet cables to either RJ45 port. For ring topology, enable RSTP on both the adapter and the controller. Check the diagnostic LEDs after power-up to verify link and activity status. Keep the cabinet within the 0°C to +60°C operating range and maintain 5% to 95% non-condensing humidity.
Maintenance and Long-Term Reliability
The BMXCRA31210 has no moving parts, so wear is minimal. Inspect diagnostic LEDs monthly for fault indications. Verify Ethernet cable seating during scheduled shutdowns. Keep the IP20 enclosure free of conductive dust and moisture. Because the module is active and shared across M340 and M580 platforms, spare-parts planning stays simple. One part number covers both controller families.
Compatibility and Integration
This adapter works with Modicon M340 and M580 CPUs over the Ethernet RIO network. It supports EtherNet/IP and Modbus TCP/IP, so it integrates with common SCADA, HMI, and engineering tools. The X-bus and BMEXBP backplane compatibility means it fits standard X80 racks. No additional communication module is required for basic drop connectivity.
What to Verify Before You Buy
Confirm your controller supports Ethernet RIO drops. Check that your backplane provides 24 V DC and enough current headroom for 200 mA per adapter. Verify your network topology plan, whether line, daisy-chain, or RSTP ring. For current pricing, availability, and replacement options, contact SpareTechPLC. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: Can I use the BMXCRA31210 with both M340 and M580 controllers?
A: Yes. Schneider Electric designed this adapter as a shared I/O platform for M340 and M580 CPUs over the Ethernet RIO network.
Q: Does this adapter support ring redundancy?
A: Yes. The dual Ethernet ports support RSTP ring topology, which helps maintain communication if one network segment fails.
Q: What protocols does the BMXCRA31210 support?
A: It supports EtherNet/IP and Modbus TCP/IP through its two integrated RJ45 ports.
Q: How much power does it draw from the backplane?
A: It consumes 4.8 W and draws 200 mA at 24 V DC from the backplane.
Q: Is this module still available?
A: The lifecycle status is active as of the last verification. Contact SpareTechPLC to confirm current availability.
