Why the TM5SAO2L Belongs on Your Upgrade Shortlist
When a Modicon M241 or M251 machine needs smooth, precise analog control, the TM5SAO2L analog output module gives you two software-configurable channels in a slim 12.5 mm slice. This Schneider Electric module belongs to the Modicon TM5 distributed I/O family, so it clips into the same rack as your existing digital and analog slices. Buyers who plan a replacement or capacity upgrade should understand exactly what this slice delivers before ordering.
What Is the TM5SAO2L?

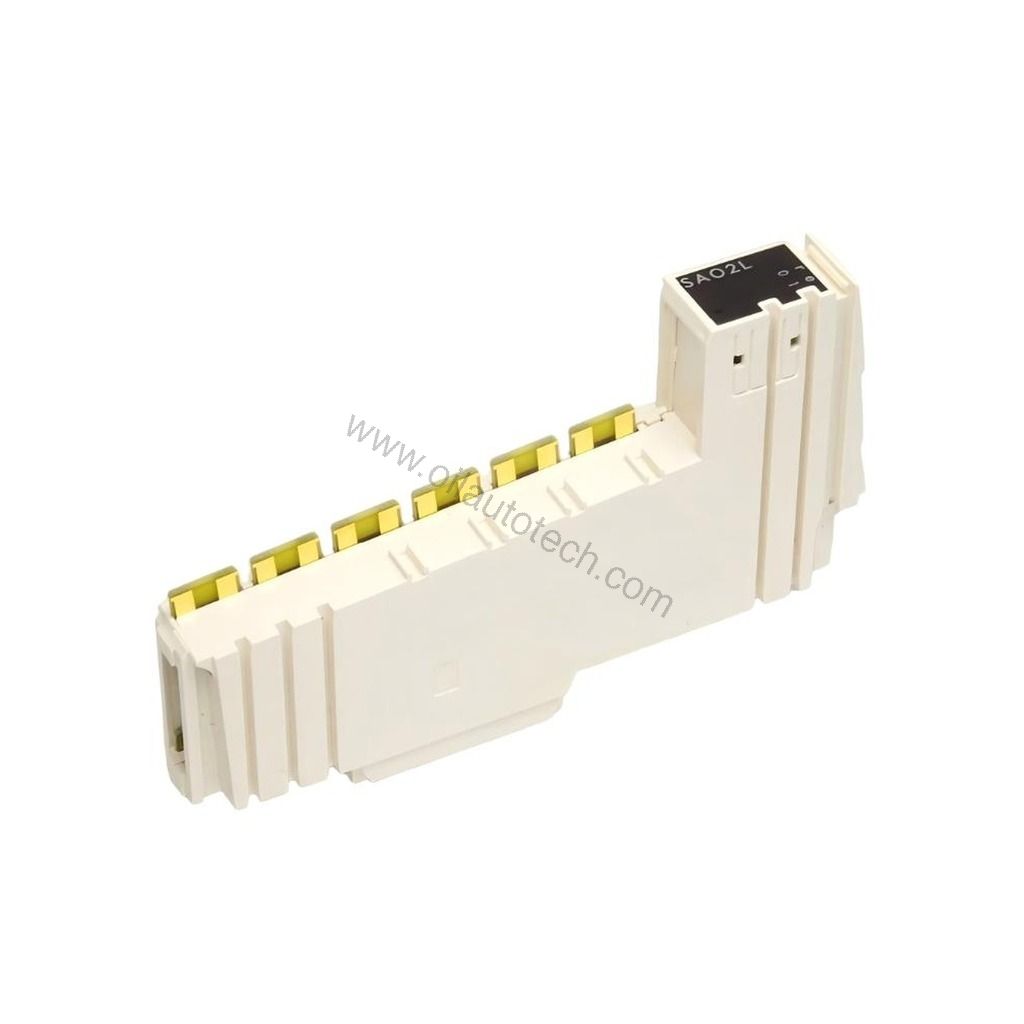

The TM5SAO2L is a 2-channel analog output module from Schneider Electric, part of the Modicon TM5 series. Each channel outputs either ±10 Vdc or 0-20 mA, and you select the mode in software per channel. A 12-bit resolution and ±0.3% full-scale accuracy at 25 °C make it suitable for proportional valve control, variable-speed drive references, and analog setpoints. The module draws 24 Vdc through the TM5 bus and consumes 1.11 W.
Key Parameters That Drive Selection
Channel Configuration and Signal Range
Two output channels, each software configurable for ±10 V or 0-20 mA, cover the most common actuator and drive interfaces. Because the channels share a common reference, you cannot isolate one channel from the other. The module does provide 500 Vrms AC isolation between the channels and the bus, which protects the controller side.
Resolution and Accuracy
At 12 bits, the module resolves the full output span into 4096 steps. Accuracy holds to ±0.3% of full scale at 25 °C and ±0.5% of full scale across the operating temperature range. For slow process loops, this accuracy is more than adequate; for fast motion references, check the response time.
Response Time and Sampling
The output changes within 1 ms maximum, and the module samples at 200 µs. That combination supports control loops that update every few milliseconds without visible lag. If your application demands microsecond-level updates, this module is not the right fit.
Diagnostics and Bus Current
Three LEDs report ModuleOK, DcOk, and NetworkOk status, which speeds up fault finding during commissioning. The module pulls 2 mA at 5 V DC from the TM5 bus and 46 mA at 24 V DC, so power budgeting stays simple.
Where This Module Fits in Real Machines
A packaging line running a Modicon M241 controller often needs two analog references: one for a film tension brake and one for a print registration drive. The TM5SAO2L covers both channels in a single slice, saving rack width. In water treatment, the same module can drive a chemical dosing pump and a flow control valve, using the 0-20 mA mode for long cable runs. Food and beverage OEMs also use it for proportional valve positioning on fillers, where the IP20 rating suits a clean cabinet environment.
Compatibility and Integration Notes
Schneider Electric lists the TM5SAO2L as compatible with the Modicon M241, M251, M258, and LMC058 platforms. The module communicates over the TM5 bus, so it appears automatically in the EcoStruxure Machine Expert hardware catalog. No separate field wiring protocol is required. When you replace an older slice, verify the bus connector orientation and the firmware revision of the controller before power-up.
Installation and Setup Guidance
Mount the slice on a standard TM5 rail inside an IP20-rated enclosure. Keep the module away from heat sources because the operating temperature range is 0 to +55 °C. Use shielded cable for analog runs and bond the shield at the cabinet entry. Configure each channel’s output mode in the programming software before enabling the outputs. Confirm the 24 Vdc supply is stable, since the module draws its power from the TM5 bus. Storage temperature ranges from -25 to +70 °C, so warehouse conditions are not a concern.
Maintenance and Lifecycle Considerations
This module has an active lifecycle status, which means Schneider Electric still supports it. Inspect terminal connections periodically for looseness and check the three status LEDs during routine rounds. Because the module has no moving parts, wear is minimal. The main risk is environmental: dust and moisture ingress beyond IP20. Keep cabinet filters clean and verify that the 24 Vdc supply stays within tolerance. For long-term spare planning, keep one slice on the shelf to avoid unplanned downtime.
Buyer’s Checklist Before You Order
Confirm your controller platform is one of the compatible Modicon models. Verify that two analog outputs are enough for your machine, and that the shared reference between channels is acceptable. Check that your cabinet maintains 0 to +55 °C. Decide whether you need voltage or current mode on each channel. Finally, confirm the lifecycle status and stock availability with SpareTechPLC before placing the order, since lead times on active automation parts can shift.
Frequently Asked Questions
Can I mix voltage and current modes on the two channels?
Yes. Each channel is software configurable, so one channel can output ±10 V while the other outputs 0-20 mA.
Does the TM5SAO2L provide channel-to-channel isolation?
No. The two channels share a common reference. The module does provide 500 Vrms AC isolation between the channels and the TM5 bus.
Which controllers work with this module?
Schneider Electric lists compatibility with the Modicon M241, M251, M258, and LMC058 platforms.
What is the output accuracy over temperature?
Accuracy is ±0.3% of full scale at 25 °C and ±0.5% of full scale across the full operating temperature range.
How fast does the output respond?
The output changes within 1 ms maximum, and the module samples at 200 µs.
