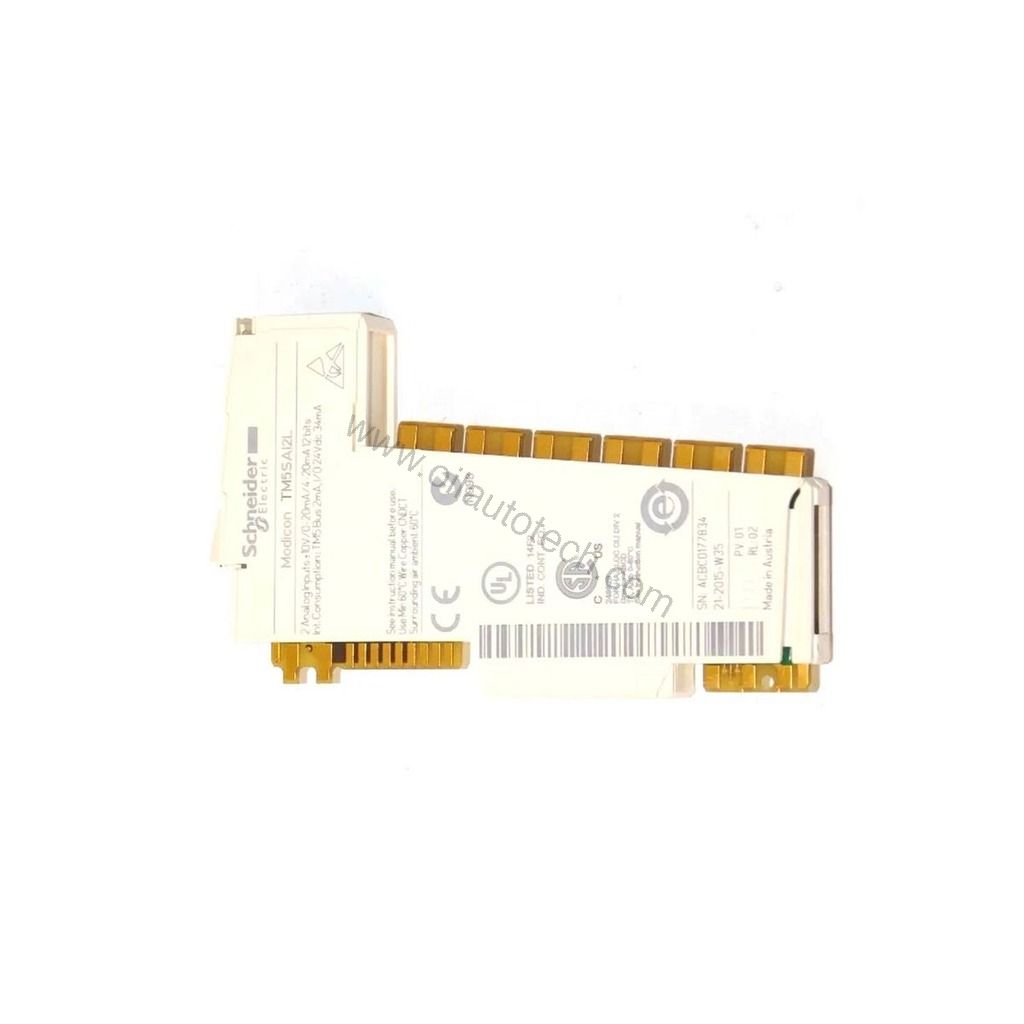

Introduction to the Schneider TM5SAI4L Analog Input Module
Maintenance engineers know that reliable analog signal acquisition is the backbone of any control system. The Schneider TM5SAI4L, part of the Modicon TM5 series, delivers four configurable analog input channels in a compact, DIN-rail mountable package. This module supports ±10 Vdc, 0-20 mA, and 4-20 mA signals, making it a versatile choice for upgrading legacy systems or building new installations. With a 12-bit resolution and robust diagnostics, it ensures precise data capture for critical processes.
Key Technical Specifications
The TM5SAI4L offers 4 analog input channels, each software configurable for voltage or current. It provides ±10 V, 0-20 mA, and 4-20 mA ranges with 12-bit signed resolution. Accuracy is ±0.3% of full scale at 25 °C, and ±0.5% over the operating temperature range of 0 to +55 °C. The module includes 500 Vrms AC isolation between channels and the bus, though no isolation exists between channels. Diagnostics cover channel status, wire break detection for 4-20 mA, and module health indicators. Power consumption is just 1.2 W, drawing 3 mA at 5 V DC and 10 mA at 24 V DC from the TM5 bus. Its IP20 rating and compact dimensions (99 × 12.5 × 75 mm) suit space-constrained cabinets.
Upgrade Path for Modicon M241 and M251 Systems
If you are maintaining older Modicon M241 or M251 controllers, the TM5SAI4L offers a straightforward upgrade path. Its compatibility with these platforms, along with M258 and LMC058, means you can enhance analog input capabilities without replacing your entire control system. The module’s hot-swap capability (when used with appropriate TM5 bus modules) minimizes downtime during replacement. For engineers facing obsolete analog cards, the TM5SAI4L provides a modern, active-lifecycle solution that extends the life of your existing infrastructure.
Installation and Setup Best Practices
Mount the TM5SAI4L on a standard DIN rail within a TM5 distributed I/O node. Ensure the bus connector is properly seated and the power distribution module supplies 24 Vdc. Configure each channel via software to match your sensor type—voltage or current. Use shielded twisted-pair cables for analog signals to reduce noise, especially in electrically noisy environments. Verify wiring against the module’s terminal assignments and check the diagnostics LEDs after power-up. No specific wiring diagrams are provided here; always consult the manufacturer’s manual for detailed instructions.
Maintenance and Reliability for Long-Term Operation
Regular inspection of terminal connections and environmental conditions is key to reliable operation. The TM5SAI4L operates in 0 to +55 °C and should be kept free of dust and moisture (IP20). Periodically check for error indications via the ModuleOK, DcOk, and NetworkOk LEDs. If a channel reports a wire break or out-of-range signal, inspect the sensor and wiring. Because the module has no internal serviceable parts, follow general maintenance guidelines: power down before reseating, and avoid disassembly. Its low power consumption and solid-state design contribute to a long service life, reducing total cost of ownership.
Compatibility and Integration with Modicon Platforms
The TM5SAI4L integrates seamlessly with Modicon M241, M251, M258, and LMC058 controllers. It communicates via the TM5 bus, requiring a compatible bus interface module. This module does not support standalone operation; it must be part of a TM5 distributed I/O system. For engineers upgrading from older analog modules, verify that your controller firmware supports the TM5SAI4L and that your power distribution module can supply the necessary 24 Vdc and bus current. The module’s diagnostics can be monitored through the controller’s programming software, aiding predictive maintenance.
Selection Guide: What to Verify Before Purchase
Before ordering the TM5SAI4L, confirm your system’s compatibility with the Modicon TM5 platform. Check that your controller (M241, M251, M258, or LMC058) supports this module and that you have the required bus interface and power distribution components. Consider your signal types and channel count needs—four channels may be sufficient for many applications, but verify if expansion is possible. SpareTechPLC offers this module with verified availability and can assist with compatibility questions. Always cross-reference your existing part numbers and system documentation.
Frequently Asked Questions
What signal types does the TM5SAI4L support?
The module supports ±10 Vdc, 0-20 mA, and 4-20 mA signals, configurable per channel via software.
Can I use the TM5SAI4L with a Modicon M241 controller?
Yes, it is compatible with Modicon M241, M251, M258, and LMC058 platforms when used within a TM5 distributed I/O system.
What is the resolution and accuracy of this module?
It offers 12-bit signed resolution and accuracy of ±0.3% of full scale at 25 °C, with ±0.5% over temperature.
Does the TM5SAI4L provide channel-to-channel isolation?
No, there is no isolation between channels, but there is 500 Vrms AC isolation between channels and the bus.
How do I diagnose a faulty channel?
Use the built-in diagnostics: channel status LEDs and software indicators for below/above limit and wire break (for 4-20 mA). Check wiring and sensor first.
