Product Overview

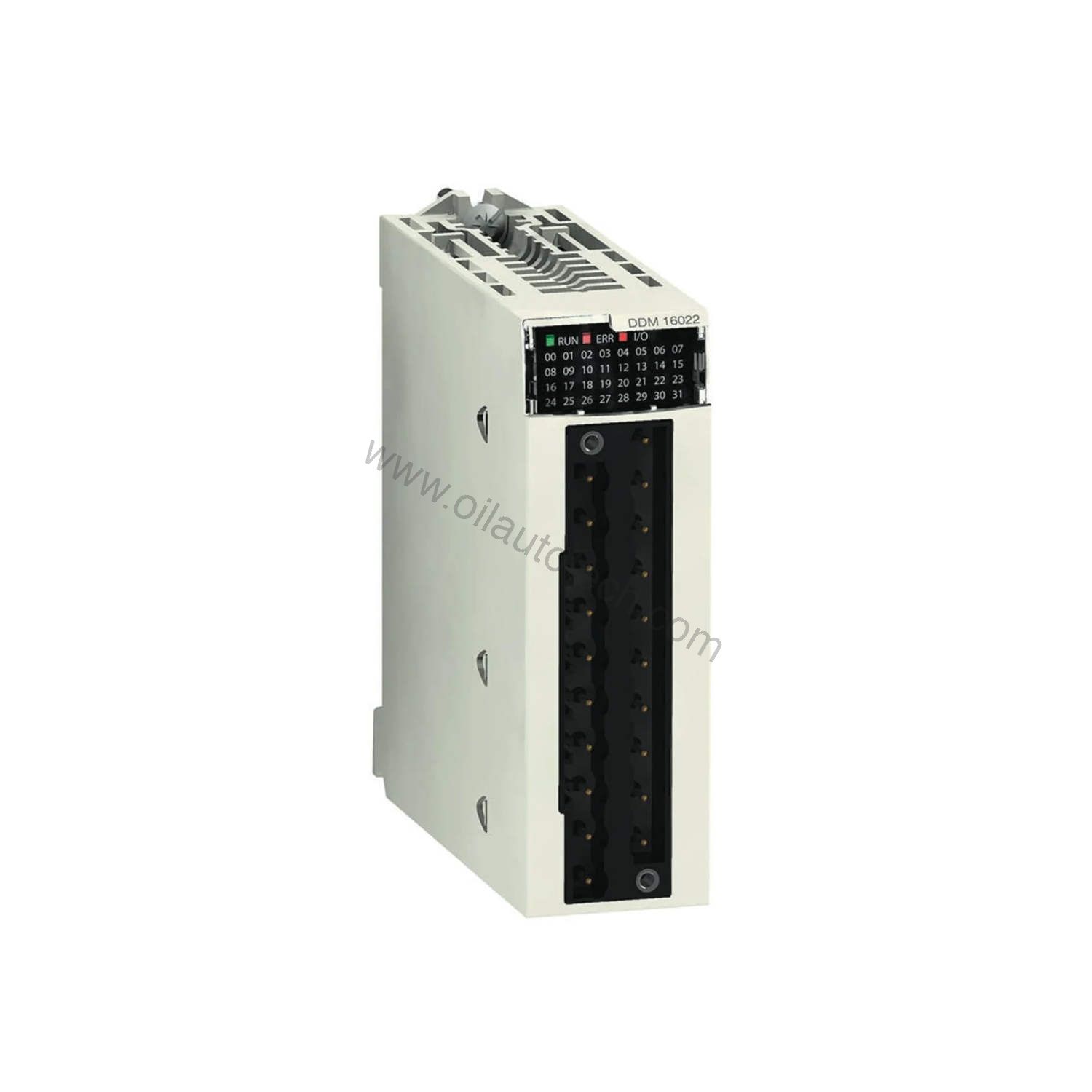

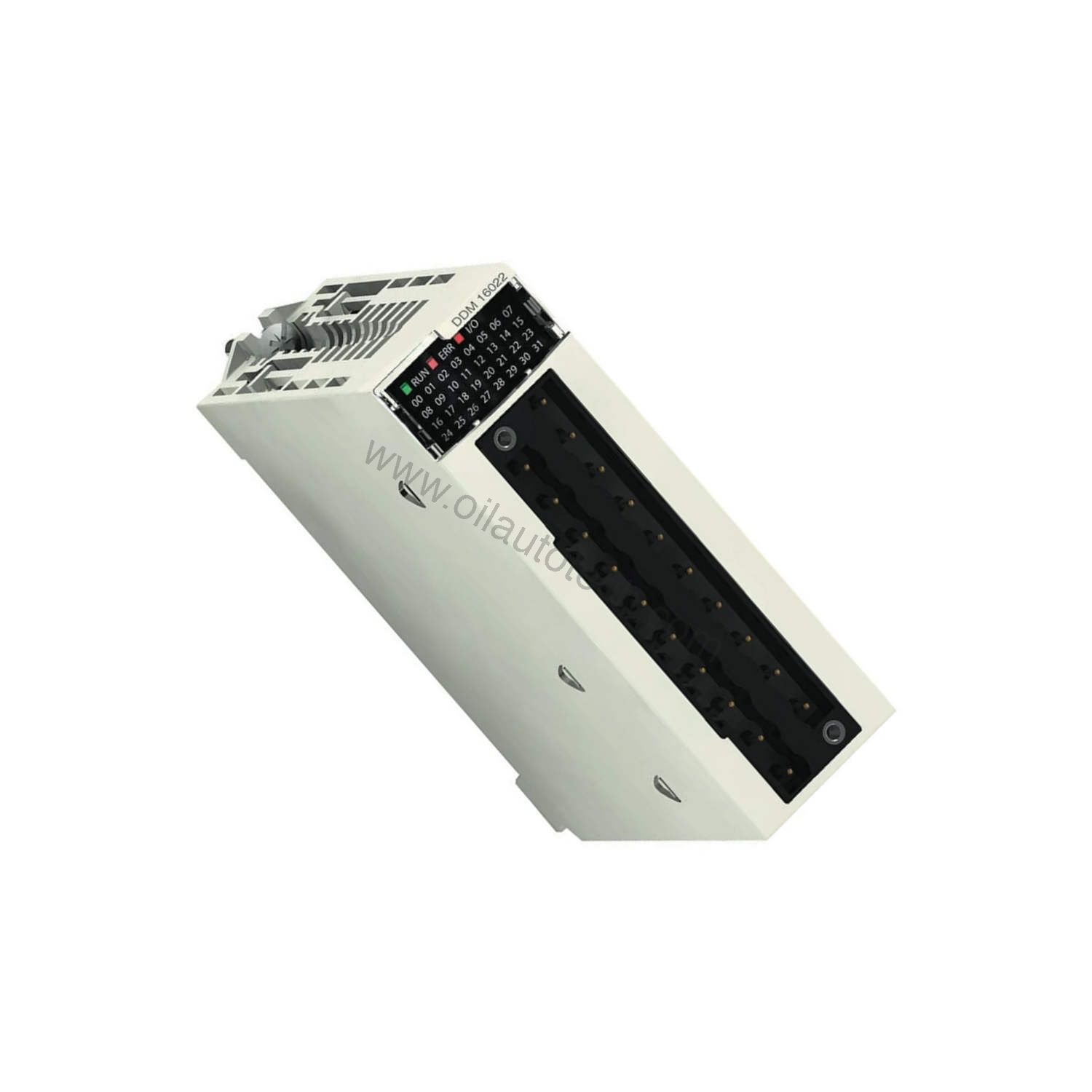

Maintenance engineers know the pain: a single failed output point can stall an entire production line. The BMXDDO1612 from Schneider Electric eliminates that risk with 16 discrete transistor outputs on one compact Modicon X80 module. Each channel delivers 24 V DC at 0.625 A, with a 10 A maximum across the module. The source-type transistor design switches field devices cleanly and repeatedly, while output-to-logic isolation protects the backplane from field faults.
This module belongs to the Modicon X80 shared I/O platform, which serves both M340 and M580 controllers. That shared architecture matters for spare parts strategy. One module covers two controller families, reducing the number of unique spares a plant must stock. The BMXDDO1612 is currently active, so it remains a viable choice for both new builds and like-for-like replacements.
Technical Specifications
Output Channels and Current
Sixteen source-type transistor outputs handle 24 V DC field loads. Each channel carries 0.625 A, and the module supports up to 10 A total. This suits solenoid valves, indicator lamps, and small contactors. Parallel operation of up to 2 channels allows higher-current loads when needed.
Switching Speed
A 1.2 ms response time keeps high-speed sorting, packaging, and indexing applications accurate. Fast switching also shortens cycle times in sequential control logic.
Diagnostics and Isolation
A module status LED plus per-channel LEDs make fault finding straightforward. Output-to-logic isolation prevents field transients from damaging controller electronics. The 20-pin terminal block simplifies field wiring and module swaps.
Electrical and Environmental Ratings
The module draws 1.8 W and 75 mA at 24 V DC on the bus. Operating temperature spans 0°C to +60°C, storage spans -25°C to +70°C, and humidity tolerance reaches 95% non-condensing. The IP20 rating suits clean control cabinets.
Replacement and Upgrade Fit

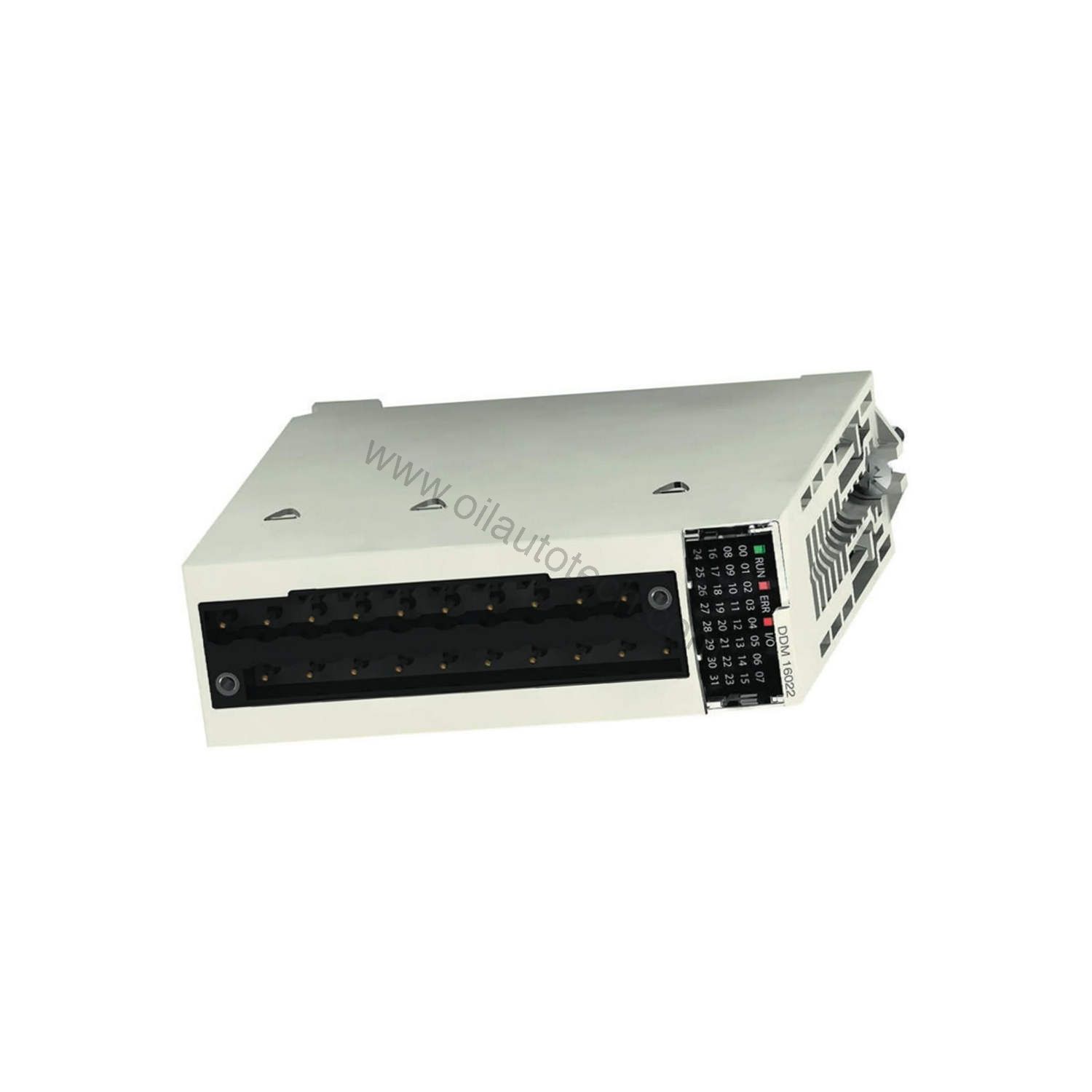

Angle D applies directly here. When an existing output module fails, engineers need a drop-in replacement without rewiring or reprogramming. The BMXDDO1612 fits standard Modicon X80 racks and works with both M340 and M580 CPUs. Its 100 × 28 × 93 mm footprint and 0.15 kg weight match the platform’s mechanical envelope. Because the platform is shared, a spare BMXDDO1612 can serve multiple controller installations across a site.
Installation and Setup
Mount the module in a Modicon X80 rack and secure the 20-pin terminal block. Verify 24 V DC field supply polarity before energizing. Confirm output-to-logic isolation is maintained by keeping field wiring separated from logic-level cabling. Check the module status LED and each channel LED during commissioning. Follow the manufacturer’s installation manual for torque and wiring details.
Maintenance and Reliability
Inspect terminal connections periodically for loosening caused by thermal cycling. Keep cabinet filters clean to maintain airflow within the 0°C to +60°C operating range. Monitor per-channel LEDs during routine rounds to catch failing outputs early. Replace modules only after following lockout procedures and the manufacturer’s safety manual. A stocked spare shortens mean time to repair and protects uptime.
Compatibility and Integration
The module integrates with Modicon M340 and M580 controllers through the shared X80 backplane. It communicates over the controller’s native I/O bus, so no additional protocol configuration is required. The 20-pin terminal block accepts standard field wiring practices used across the platform.
Selection Guide
Before ordering, confirm your controller family, rack type, and required channel count. Verify that 0.625 A per channel and 10 A module maximum match your load profile. Check whether source-type outputs suit your field devices. SpareTechPLC supplies this module and can confirm current lifecycle status and availability before you commit.
Frequently Asked Questions
What makes the BMXDDO1612 suitable for replacement projects?
It fits the shared Modicon X80 platform used by both M340 and M580 controllers, so one spare covers multiple installations.
How much current can each output handle?
Each of the 16 channels handles 0.625 A at 24 V DC, with a 10 A maximum for the whole module.
Can I parallel outputs for higher current?
Yes, up to 2 channels can operate in parallel when a load requires more than a single channel provides.
What diagnostics does the module offer?
It provides a module status LED and per-channel LEDs, which speed up fault isolation during maintenance.
Is the module still in active production?
Yes, the platform is active. Confirm current availability with SpareTechPLC before ordering.
