When Downtime Isn’t an Option: The 1756-OB16I Story
Industrial automation has evolved from simple relay panels to complex distributed control systems. As plants scaled up, engineers needed output modules that could drive diverse loads without cross-channel interference. The Allen-Bradley 1756-OB16I answered that call. This ControlLogix module delivers sixteen individually isolated outputs in a single slot, letting you mix voltage sources per channel safely. Whether you are replacing a failed unit or upgrading an aging panel, this module keeps your process running.

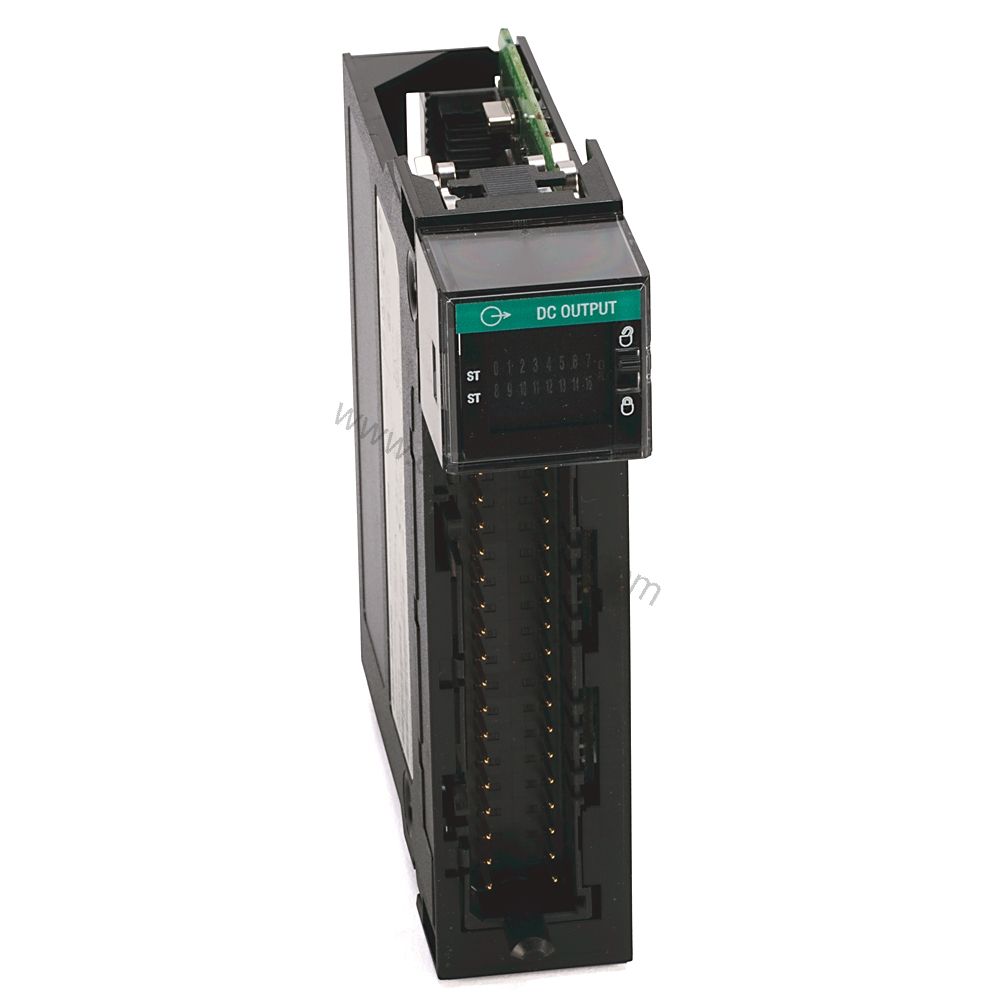

What Makes This Module Different
The 1756-OB16I is not just another DC output card. Each of its sixteen points is individually isolated, meaning you can wire different voltage sources to each channel as long as the external supply stays within 10-30V DC. This flexibility reduces wiring complexity and eliminates the need for separate modules when driving mixed loads. The module operates in both sinking and sourcing configurations, so it adapts to your existing panel design without rewiring.
Technical Specifications That Matter
Three specs stand out for buyers evaluating this module. First, the current derating curve: each point handles 2 A at 30 °C but only 1 A at 60 °C. Plan your cabinet thermal management accordingly. Second, the module supports 8 A total at 30 °C, dropping to 4 A at 60 °C. Third, output delay times are fast: 1 ms maximum OFF to ON and 2 ms maximum ON to OFF. These speeds suit applications requiring quick response, such as solenoid or relay actuation.
Backplane current draw is modest: 350 mA at 5 V and 3 mA at 24 V. Power dissipation maxes out at 3.6 W at 60 °C, so heat buildup is manageable. The module also provides configurable safe states per point. When the controller switches to Program or Fault mode, you can set each output to Hold Last State, On, or Off. This prevents unexpected actuation during maintenance or fault conditions.
Where the 1756-OB16I Fits
This module excels in three scenarios. In automotive assembly lines, it drives pilot lamps and solenoids across multiple voltage zones without isolation transformers. In food processing, it controls relays and buzzers in wash-down areas where cabinet space is tight. In material handling, it energizes motor starters and indicators while maintaining channel independence. The isolated design means a fault on one channel will not cascade to others, protecting your entire process.
Installation and Wiring Guidance
The 1756-OB16I installs directly into any 1756 local or remote chassis. It requires a removable terminal block, either 1756-TBCH or 1756-TBS6H, both 36-pin. For inductive loads, install external surge protection to handle inrush current. The module does not include internal fusing; use a 5x20mm 4 A quick-acting fuse (SOC p/n MQ2-4A) for output protection. Follow your panel wiring diagram and verify safe-state settings before commissioning.
Maintenance and Long-Term Reliability
Inspect terminal connections periodically for tightness and signs of overheating. Check the sixteen LED indicators during operation; a dark LED on an active channel suggests a wiring or fuse issue. Keep cabinet temperature below 60 °C to avoid derating. The module’s isolation voltage of 50 V continuous and outputs-to-backplane rating of 250 V provide solid protection in industrial environments. Routine testing at 1350 V AC for 2 s confirms dielectric strength.
Compatibility and Integration
The 1756-OB16I integrates seamlessly with ControlLogix processors and 1756 chassis. It supports multiple communication formats including output data, listen-only output data, rack optimization, and scheduled output data. This makes it compatible with existing ControlLogix architectures without firmware changes. The module also works with remote terminal blocks for flexible panel layouts.
Before You Buy
Verify your load voltage stays within 10-30V DC and that total current does not exceed 8 A at 30 °C. Confirm you have the correct terminal block (1756-TBCH or 1756-TBS6H). Check whether your application requires external fusing or surge protection. Please verify current lifecycle status and availability with SpareTechPLC before ordering. Their team can confirm stock and help you select the right accessories.
Frequently Asked Questions
Can I mix voltage sources on different channels of the 1756-OB16I?
Yes. Each of the sixteen outputs is individually isolated, so you can connect different voltage sources per channel as long as each stays within 10-30V DC.
What happens to outputs when the controller faults?
The module supports configurable safe states per point. You can set each channel to Hold Last State, On, or Off when the processor enters Program or Fault mode.
Does this module require external fusing?
Yes. The 1756-OB16I does not have internal fuses. Use a 5x20mm 4 A quick-acting fuse (SOC p/n MQ2-4A) for output protection.
What terminal block do I need?
Use either the 1756-TBCH or 1756-TBS6H removable terminal block. Both are 36-pin and provide signal termination points.
How much heat does the 1756-OB16I generate?
Maximum power dissipation is 3.6 W at 60 °C, with thermal dissipation of 12.28 BTU/hr. Ensure adequate cabinet ventilation.
