When a Legacy Machine Loses Its I/O Base

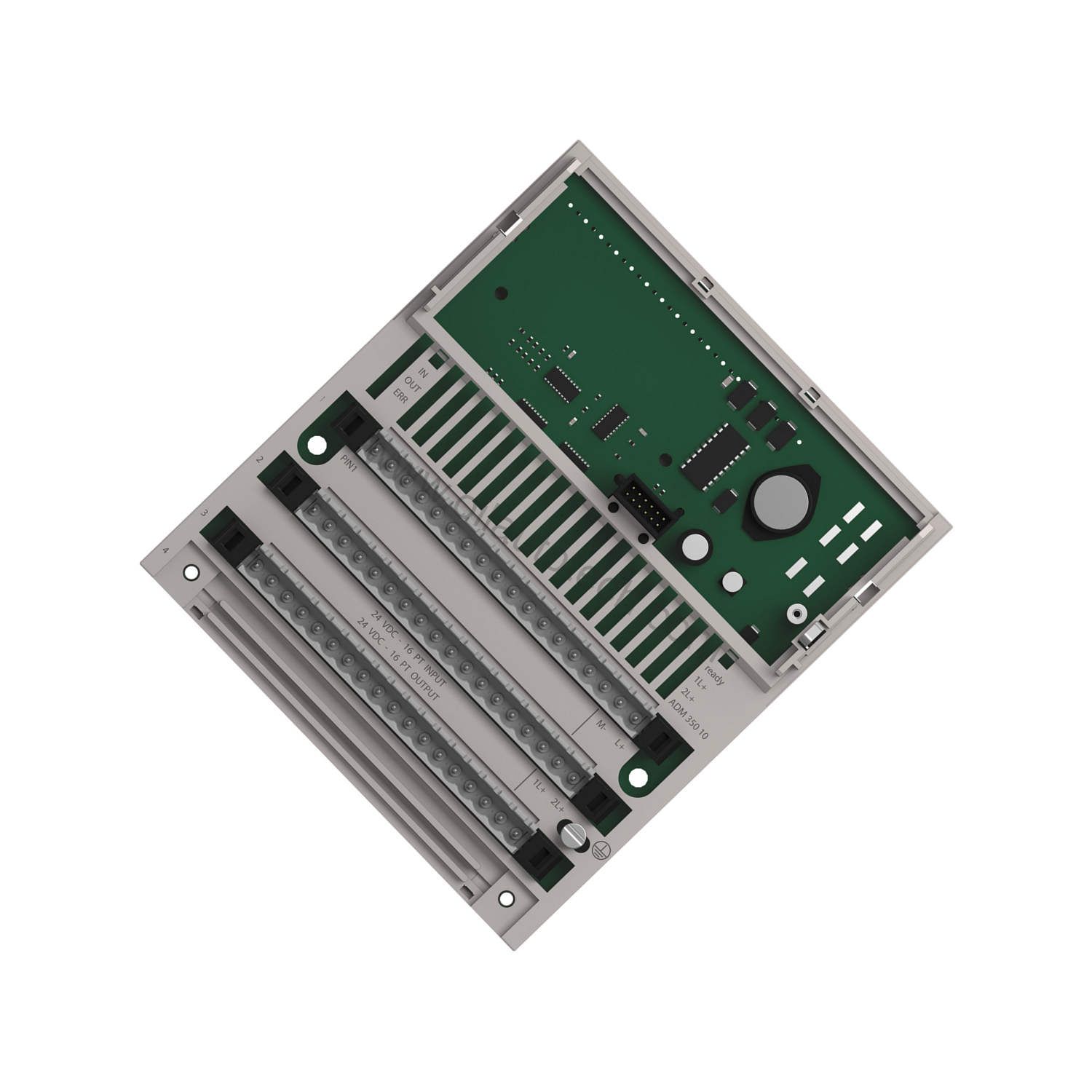

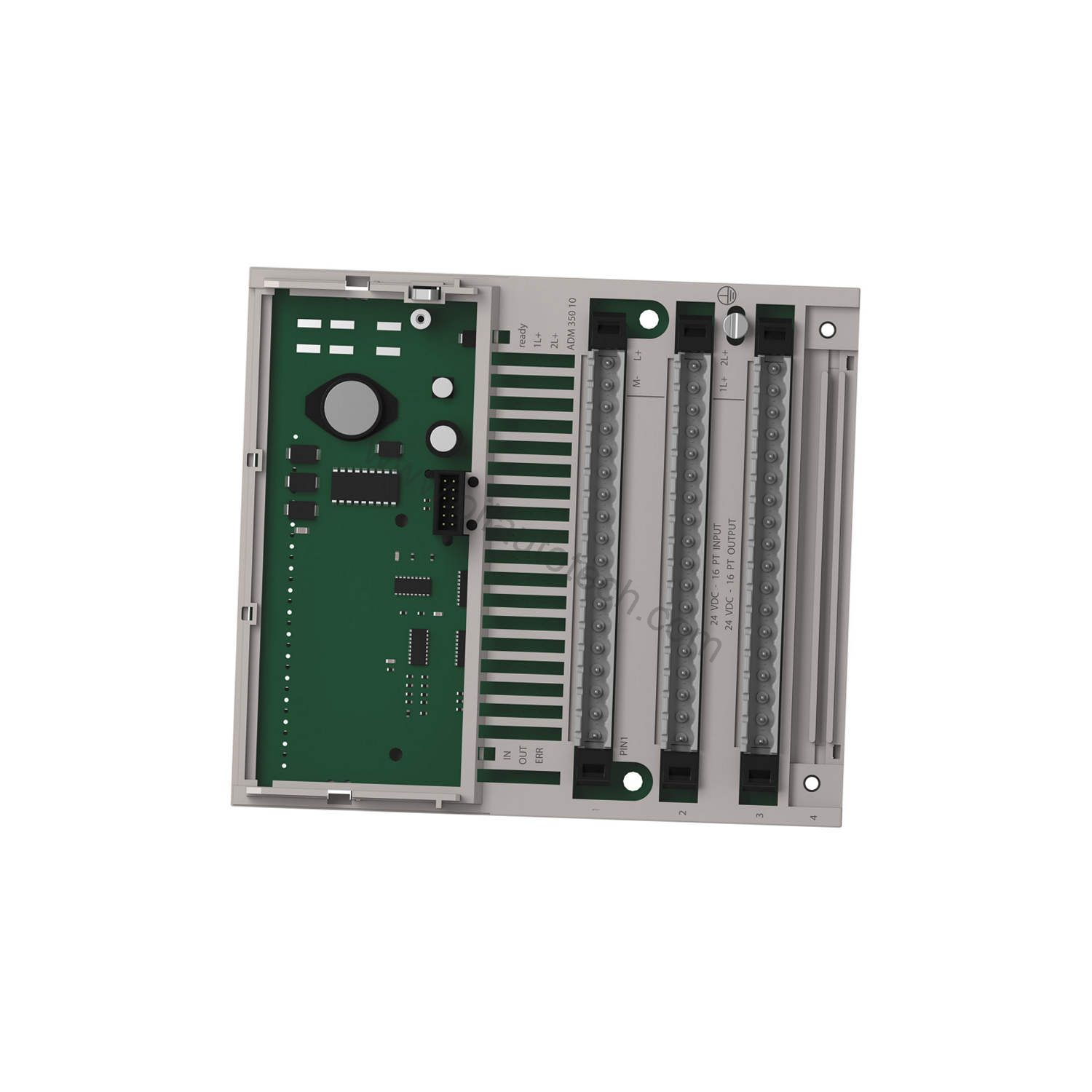

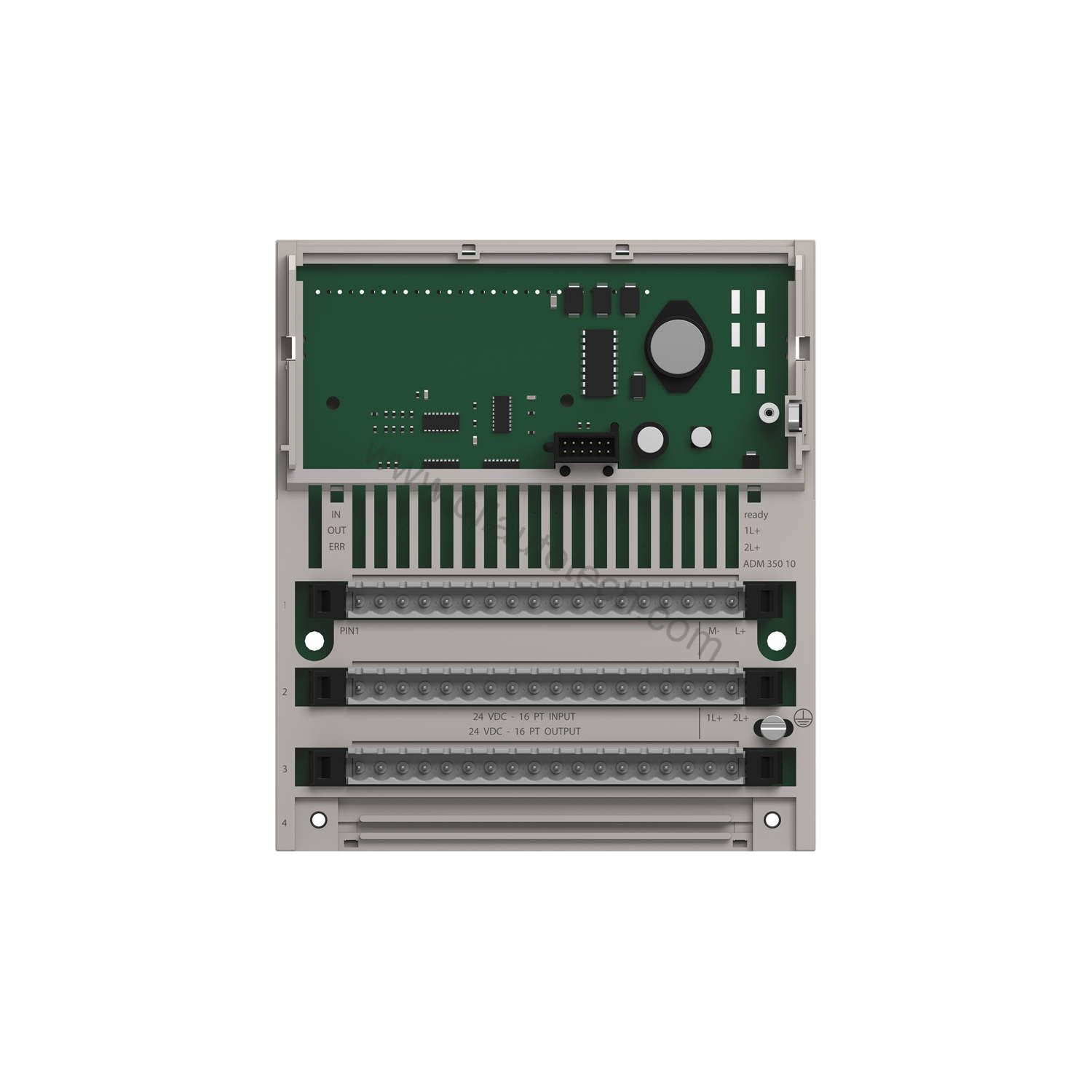

A packaging line stops because one mixed I/O base module fails. The controller is healthy, the wiring is intact, but the machine cannot read inputs or drive outputs. That is the exact pain the Schneider 170ADM37012 was built to solve inside Modicon Momentum systems. This base module combines digital and analog I/O on one platform, so a single unit handles sensing, switching, and analog regulation tasks.
Because the product is discontinued (last verified 2026-09), replacement planning matters more than ever. This guide explains what the module does, how to specify it correctly, and how to keep a legacy line running while you plan an upgrade.
What the 170ADM37012 Actually Provides
Mixed I/O in One Base
The module carries 16 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog outputs. Digital channels operate at 24V DC, while analog channels are configurable. Instead of stacking separate digital and analog cards, engineers get one base module that fits the same Momentum footprint.
Output and Switching Behavior
Digital outputs use solid-state switching. This means no mechanical contacts to wear out, which suits frequent switching duty on packaging, sorting, and material handling equipment. Response times are fast: 2.2 ms for input off-to-on, 3.3 ms for input on-to-off, and under 0.1 ms for digital output.
Isolation and Diagnostics
Analog I/O is isolated at 500 V AC for one minute to operating voltage and to ground. Each output has a red LED that flags overload or short-circuit conditions, and the module reports I/O errors to the bus adapter. Maintenance teams can locate faults without tracing every wire by hand.
Power and Physical Profile
The module runs on 24V DC supply and draws a maximum of 8 W. It measures 125 × 141.5 × 47.5 mm and weighs 0.4 kg. The IP20 rating suits clean control cabinets rather than washdown or outdoor enclosures.
Solving Real Engineering Pain Points
Pain Point: Mixed Signals on a Single Machine
A filling station needs limit switches, valve outputs, and analog pressure feedback. The 170ADM37012 covers all three signal types in one base, reducing cabinet space and wiring time compared with separate modules.
Pain Point: Downtime from Undetected Faults
An output short can stop a line before anyone knows which channel failed. The per-output red LED and bus adapter error reporting shorten diagnosis. Teams restore production faster because the fault is visible at the module.
Pain Point: Obsolete Hardware Blocks a Retrofit
When a discontinued module fails, the whole upgrade schedule can slip. Buyers should confirm stock before committing to a like-for-like replacement, or plan a migration path with their controls integrator.
Installation and Commissioning Notes
Mount the base module inside a suitable enclosure that respects the IP20 rating. Keep the 24V DC supply within the stated range and verify polarity before energizing. Because analog channels are configurable, confirm the required signal mode during commissioning rather than assuming a factory setting. Follow the manufacturer’s documentation for wiring and configuration; do not improvise connections on a live system.
Maintenance and Long-Term Reliability
Solid-state outputs remove contact wear, so the main risks are environmental. Keep the cabinet clean, dry, and within reasonable temperature limits. Periodically inspect terminal connections and confirm that diagnostic LEDs behave normally during test cycles. For safety-related functions, follow the machine builder’s safety manual and inspect at scheduled intervals only.
Compatibility and Integration
The module belongs to the Modicon Momentum family and communicates I/O status to a bus adapter. It works within Momentum-based architectures rather than as a standalone controller. Before purchase, confirm the existing bus adapter, backplane, and terminal configuration match this base module. If the surrounding hardware is also aging, evaluate whether a partial or full migration makes better financial sense.
Selection Checklist Before You Buy
Verify the exact part number, channel mix, and voltage requirements against your existing installation. Confirm whether your application needs the analog channels or only digital I/O, since over-specifying wastes budget. Check connector and terminal compatibility with your current wiring. For discontinued items, ask about tested condition, warranty terms, and replacement options. SpareTechPLC supplies industrial automation parts and can help confirm availability for legacy Schneider modules.
Frequently Asked Questions
Is the 170ADM37012 still in production?
No. The data lists it as discontinued, last verified 2026-09. Contact SpareTechPLC to confirm current availability and replacement options.
How many channels does this module offer?
It provides 16 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog outputs on one base module.
What supply voltage does it require?
The module operates on 24V DC and draws a maximum of 8 W.
Can I use it outdoors or in a washdown area?
No. The IP20 protection rating suits clean, dry control cabinets only.
How do I know which output has failed?
Each output has a red LED that indicates overload or short-circuit conditions, and the module reports I/O errors to the bus adapter.
