Why the BMXMSP0200 Belongs in Your Cost-Reduction Plan

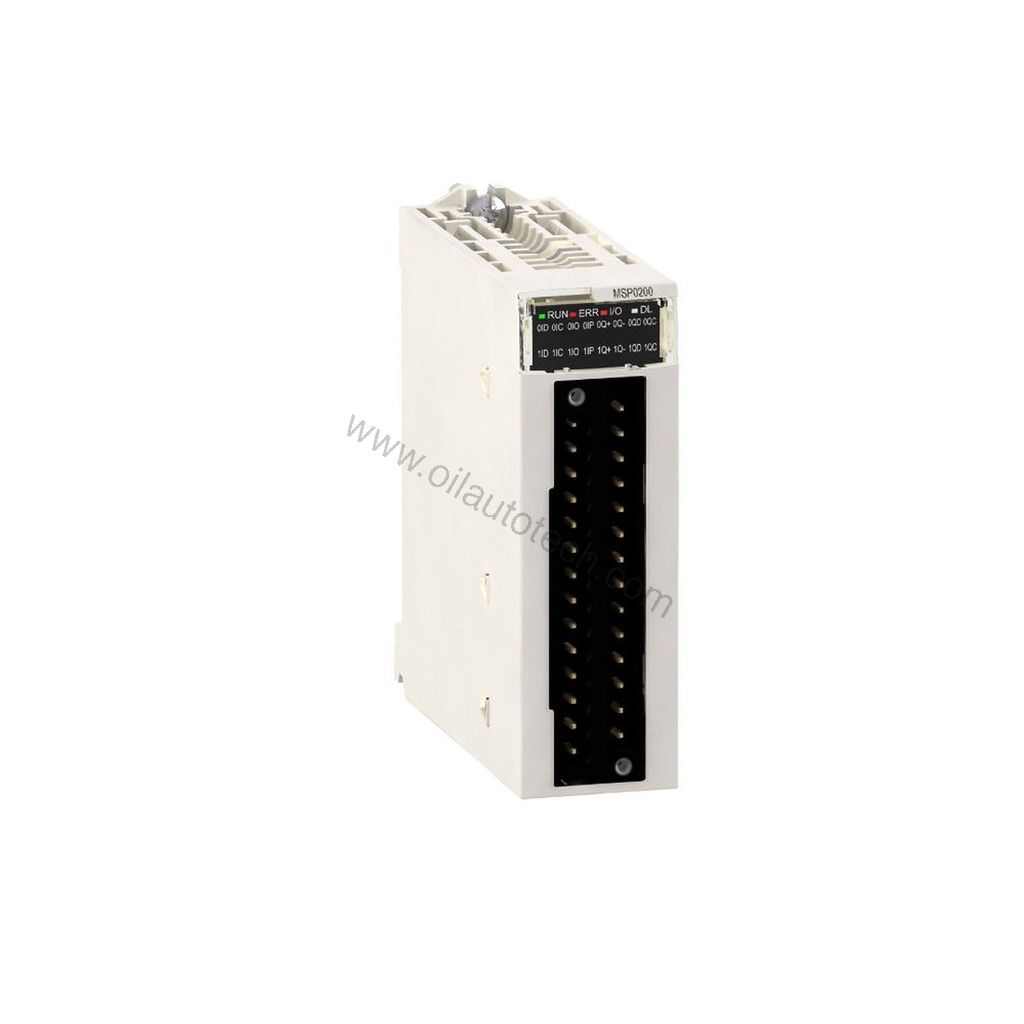

Machine builders lose money in two quiet ways: oversized controllers that cost too much to buy and run, and stalled axes that cost even more in downtime. The Schneider Electric BMXMSP0200, a Modicon X80 2-axis motion control module, attacks both problems. It delivers Pulse Train Output (PTO) control for two independent axes at a maximum pulse frequency of 200 kHz, while drawing just 3.1 W and 130 mA at 24 V DC from the backplane. For buyers comparing replacement options, that combination of density and low power draw translates directly into lower energy bills and fewer rack slots consumed.
What Two Axes in One Slot Really Saves You
Pulse Train Output at 200 kHz
The BMXMSP0200 generates pulse trains for stepper and servo drives, so you can command position and speed without adding analog output cards or external motion controllers. A 200 kHz ceiling supports fine resolution and smooth acceleration profiles on demanding move profiles. In cost terms, one module replaces two single-axis cards, which cuts both hardware spend and cabinet footprint.
Electrical Efficiency by Design
Because the module takes 24 V DC through the backplane and consumes only 3.1 W, it adds almost nothing to your power budget. The 130 mA bus current is modest, so existing power supplies rarely need upgrading during a retrofit. That avoids an unplanned PSU purchase, a hidden cost that often surprises maintenance teams mid-project.
Built for Real Plant Floors
An operating range of 0 °C to +60 °C and 5% to 95% relative humidity (non-condensing) covers most industrial environments. The IP20 rating suits clean cabinet installation. Storage from -25 °C to +70 °C keeps spare units healthy in unheated warehouses, protecting the value of your spares stock.
Compact, Light, and Easy to Stock
At 100 × 28 × 93 mm and 0.18 kg, the module occupies a single slot. Light weight lowers shipping and handling costs, and the small form factor means you can keep a spare on the shelf without tying up capital in bulky inventory.
Technical Specifications
| Specification | Value |
|---|---|
| Series | Modicon X80 |
| Axes | 2 axes |
| Output type | Pulse Train Output (PTO) |
| Maximum pulse frequency | 200 kHz |
| Drive compatibility | Stepper / servo drives |
| Supply voltage | 24 V DC (via backplane) |
| Power consumption | 3.1 W |
| Bus current | 130 mA @ 24 V DC |
| Operating temperature | 0 °C to +60 °C |
| Storage temperature | -25 °C to +70 °C |
| Relative humidity | 5% to 95% (non-condensing) |
| Protection rating | IP20 |
| Dimensions (H×W×D) | 100 × 28 × 93 mm |
| Weight | 0.18 kg |
| Slot occupation | 1 slot |
Where This Module Earns Its Keep
Packaging and Labeling Lines
Two-axis PTO control fits perfectly on a label applicator or case erector where one axis feeds material and the second positions the tool. The 200 kHz pulse rate keeps motion crisp at production speed, reducing scrap and rework costs.
Retrofit of Legacy Motion Systems
When an older single-axis card fails, replacing it with the BMXMSP0200 can free a slot for other I/O. Fewer cards mean lower spare-parts inventory and simpler maintenance planning.
Small Assembly Cells
A compact cell with two stepper-driven axes can run from one module, cutting panel size and wiring labor. Lower wiring count also reduces long-term fault-finding time.
Integration with M340 and M580 Platforms
The module shares the Modicon X80 I/O platform, so it works across M340 and M580 controllers. That shared platform is a genuine cost advantage: you standardize on one module type, one set of spares, and one training profile across multiple machine generations. Lifecycle status is Active (last verified 2026-09), so long-term availability supports multi-year service contracts.
Installation Notes
The module mounts in a single X80 slot and receives 24 V DC through the backplane, so no separate field supply wiring is required. Keep the cabinet within the 0 °C to +60 °C operating range and maintain non-condensing humidity. Follow Schneider Electric’s installation documentation for slot placement and grounding.
Maintenance and Lifecycle Value
Inspect the module periodically for secure seating, dust buildup, and cabinet temperature drift. Because it has no moving parts and draws only 3.1 W, wear is minimal, which keeps total cost of ownership low. Store spare units within -25 °C to +70 °C to preserve readiness. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
What to Confirm Before You Buy
Check that your controller is an M340 or M580 with a free X80 slot, confirm your drives accept pulse train input, and verify your 24 V DC backplane budget can absorb 130 mA. If you need a matched spare or a replacement for a failed axis card, SpareTechPLC supplies tested units and can confirm compatibility with your existing rack.
Frequently Asked Questions
Does the BMXMSP0200 control stepper and servo drives?
Yes. It provides Pulse Train Output signals and is compatible with stepper and servo drives.
How many axes can one module handle?
It controls two axes and occupies one slot in a Modicon X80 rack.
What is the maximum pulse frequency?
The module outputs pulses up to 200 kHz, which supports fine resolution on fast move profiles.
Which controllers support this module?
It is part of the Modicon X80 shared I/O platform used by M340 and M580 controllers.
How much power does it draw?
It consumes 3.1 W and draws 130 mA at 24 V DC from the backplane.
