What the 170ADI34000 Delivers to Your Control Cabinet

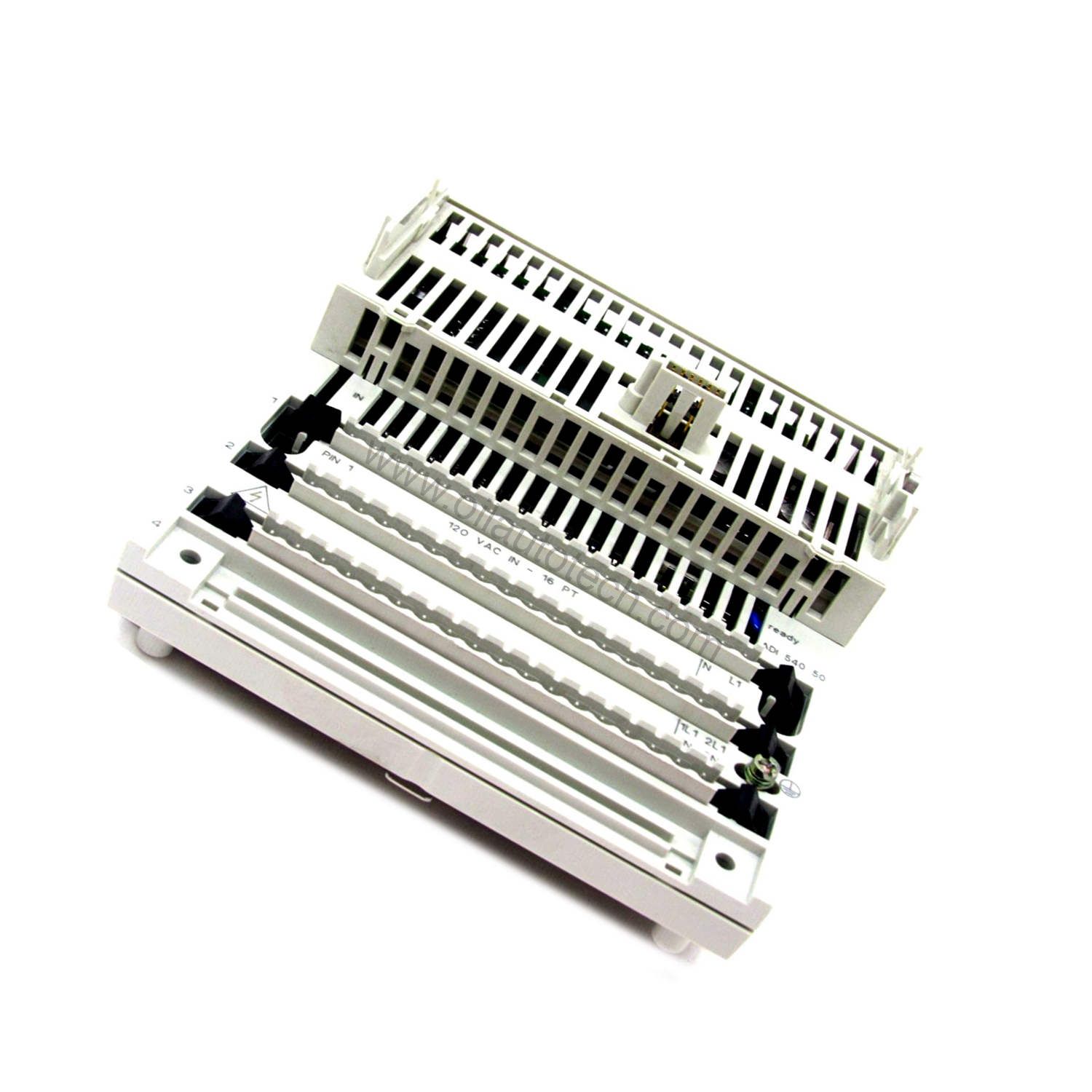

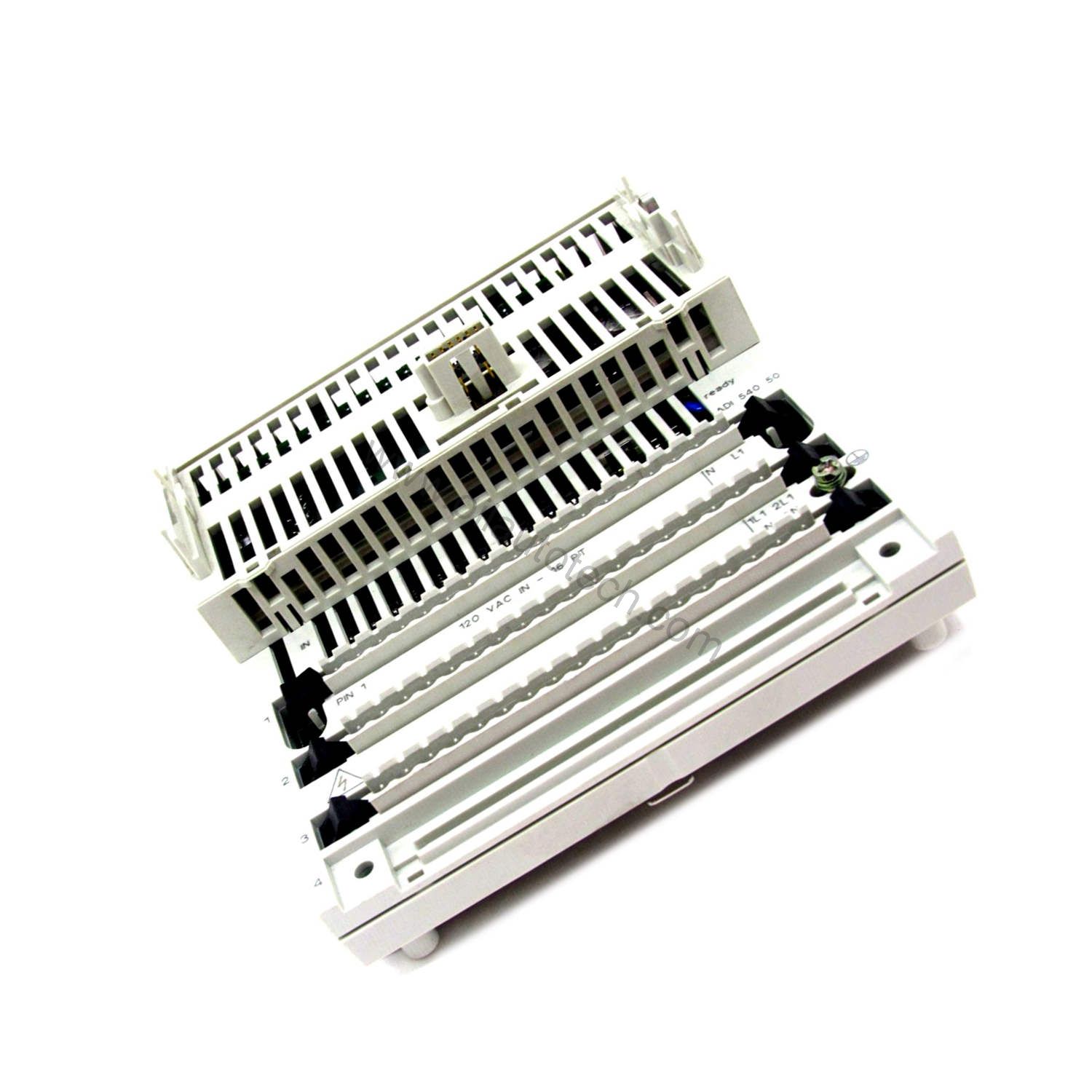

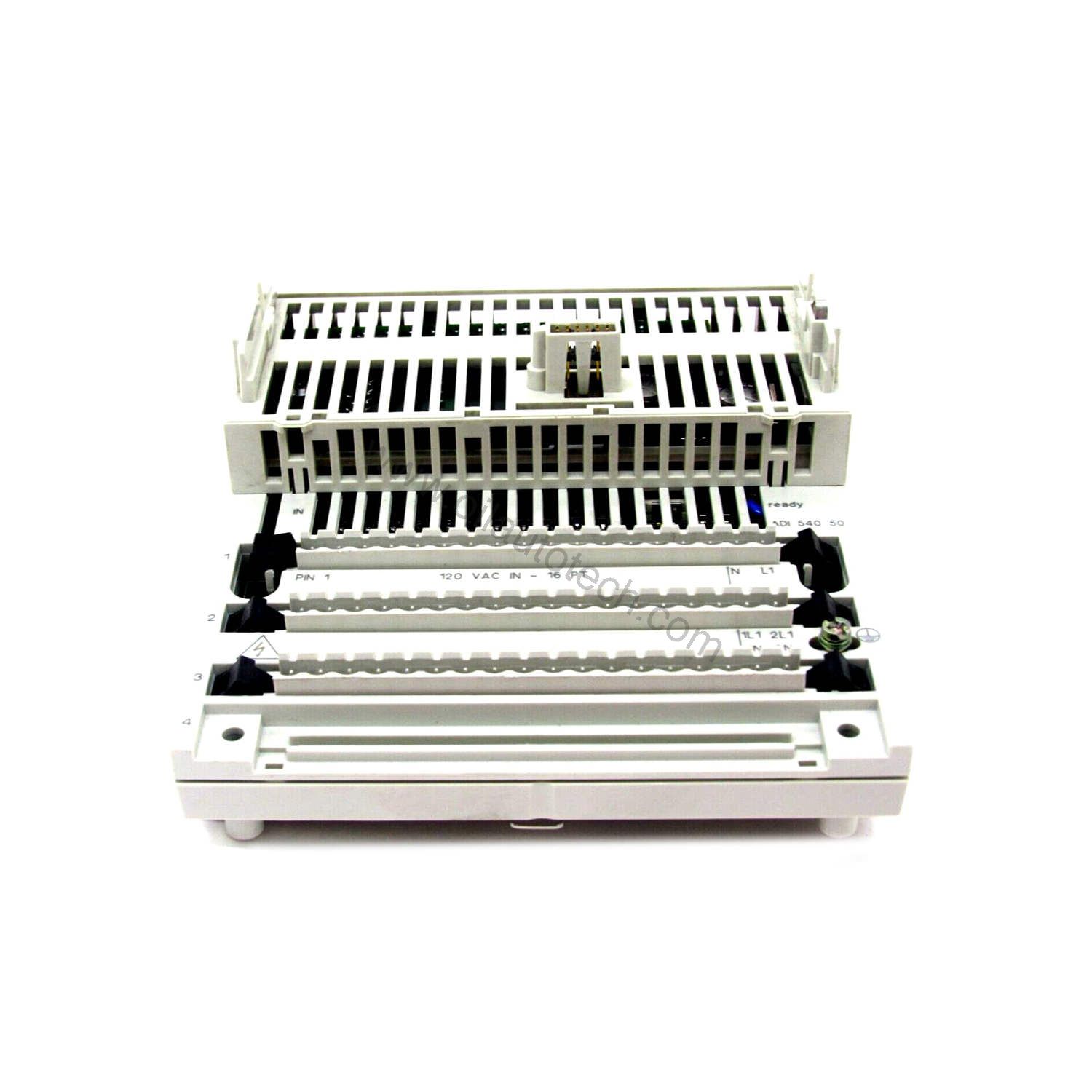

Downtime on a running line costs far more than the module that caused it. The Schneider 170ADI34000 is a Modicon Momentum discrete input base module with 16 channels in a single group. It reads 24V DC field signals and passes them to the Momentum adapter over the backplane bus. For plants still running Momentum I/O, this module is often the cheapest way to keep a machine producing while a full platform migration is planned.
Each channel draws 6 mA at 24V DC and presents a 4 kΩ input resistance. That low burden lets one 24V DC supply feed many input points without forcing an oversized power budget. The 3 W typical power consumption keeps cabinet heat low, which extends the life of every component around it.
Where the Money Goes: Cost and Efficiency Implications
A 16-channel module spreads its purchase price across sixteen points, so the cost per input is low. The 2.2 ms off-to-on and 3.3 ms on-to-off response times suit standard machine sequencing, limit switches, and pushbutton logic. Faster signals belong on a different platform, but for general discrete sensing this speed is enough and avoids paying for performance the machine never uses.
Isolation of 500V AC field-to-bus protects the adapter and controller from field transients. That protection reduces the risk of a single wiring fault destroying a far more expensive processor module. The IP20 rating means the module belongs inside a clean enclosure, so plan panel layout and filtering accordingly.
Technical Specifications at a Glance
The 170ADI34000 accepts 24V DC with an operating range of 19.2 to 30V. It follows IEC 1131-2 Type 1+ characteristics with a true high input. Internal bus current consumption is 250 mA at 24V DC, and maximum power draw is 5 W. The module measures 125 × 141.5 × 47.5 mm and weighs 0.35 kg. It carries no channel-level diagnostics, so fault reporting to the adapter is not available.
Replacement and Upgrade Path
Schneider lists this module as discontinued. That changes the buying decision from routine replenishment to planned replacement. Two routes make sense. First, source tested surplus units to keep existing Momentum racks running. Second, budget a migration to a currently supported I/O family and treat the 170ADI34000 as a bridge purchase.
Either way, confirm availability and current lifecycle status with SpareTechPLC before committing to a production schedule. A verified unit in hand is worth more than a catalog promise when a line is down.
Installation Notes for Momentum Racks
Mount the base module onto the Momentum rail and confirm it seats fully before tightening. Keep field wiring separated from noisy power conductors, and respect the 500V AC isolation boundary. Because diagnostics are absent, commissioning depends on point-to-point verification. Test each channel with a known signal source and record the results. Label every termination clearly so future troubleshooting does not require tracing wires under pressure.
Maintenance and Reliability Planning
Inspect terminals periodically for looseness and corrosion. Verify supply voltage stays within the 19.2 to 30V window, since low voltage can cause intermittent input states that look like field faults. Keep the enclosure sealed to preserve the IP20 environment. Track spare quantities against the number of installed modules, and treat each replacement as a cost decision: a verified spare avoids emergency pricing and unplanned downtime.
Compatibility and Integration
The 170ADI34000 belongs to the Modicon Momentum family and communicates through the Momentum adapter rather than directly on a network. Confirm your adapter model and rack configuration before ordering. Because the module has no channel diagnostics, the adapter and controller program must handle fault detection at the system level.
Buyer Checklist Before You Order
Verify the exact part number, the adapter it will sit behind, and the number of spare channels your process needs. Confirm the unit is tested and comes with a clear condition report. Ask about replacement options if you plan to phase out Momentum. SpareTechPLC supplies industrial automation parts and can help confirm what is currently available.
Frequently Asked Questions
Is the 170ADI34000 still in production?
No. Schneider Electric lists it as discontinued. Contact SpareTechPLC to confirm current availability and replacement options.
How many inputs does this module provide?
It provides 16 discrete inputs in one group, rated for 24V DC signals.
Does it report channel faults to the adapter?
No. The module has no channel-level diagnostics, so fault detection must happen elsewhere in the system.
What supply voltage does it require?
It operates on 24V DC with a range of 19.2 to 30V.
Can I use it as a long-term replacement plan?
It can bridge existing Momentum installations, but a migration to a supported I/O family is the more durable option.
