STBNMP2212 | Schneider Modbus Plus Network Interface Module

Is Your Legacy Modbus Plus Network Holding You Back?

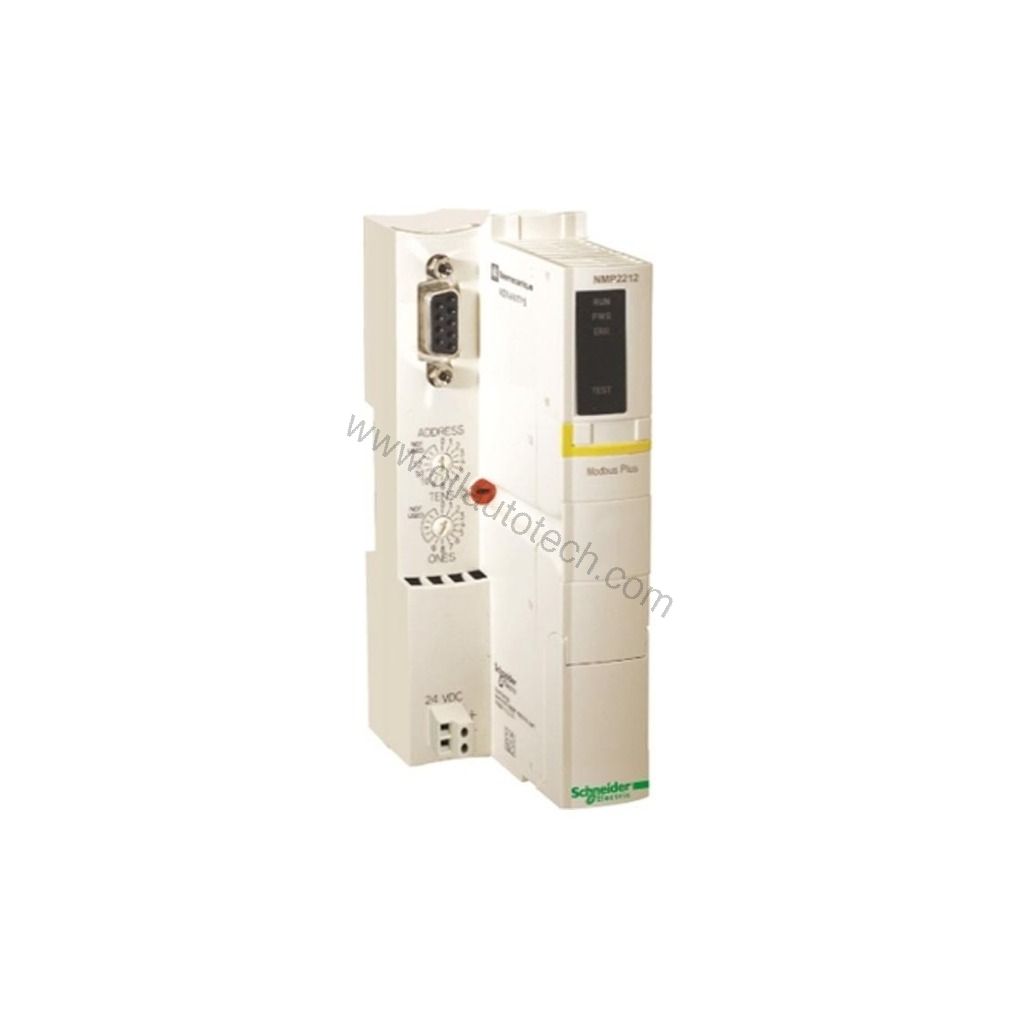

If you run an Advantys STB island on a Modbus Plus backbone, you already know the challenge. The network works, but the interface module that ties it together is getting harder to source. The STBNMP2212 from Schneider Electric is the standard network interface module (NIM) for the Advantys STB series. It connects your I/O island to a Modbus Plus network through a 9-pin SUB-D (DB-9S) port and supports up to 32 addressable I/O modules per island.

Schneider has discontinued this module and points customers toward the Modicon X80 range. That does not mean your existing system is dead. It means you need a clear plan: secure spare units now, or migrate on your own schedule. This guide covers both paths.

What the STBNMP2212 Actually Does

The STBNMP2212 is the head module of an Advantys STB island. It manages communication between the island’s I/O modules and the Modbus Plus network. One NIM can address up to 32 I/O modules, so a single island can cover a wide range of field signals without extra network drops.

The module runs on 24V DC supply voltage. Its IP20 protection rating means it belongs inside a control cabinet, away from dust and moisture. The compact housing measures 128.3 × 70 × 40 mm and weighs only 0.145 kg, so it fits standard DIN-style panel layouts without heavy structural changes.

Key Parameters at a Glance

Why Modbus Plus Still Matters in Some Plants

Modbus Plus is a proven industrial network. Many plants built their control architecture around it and never needed to change. The STBNMP2212 keeps those islands running without a full network overhaul.

Consider a water treatment facility with distributed Advantys STB islands. Each island handles pumps, valves, and level sensors. The STBNMP2212 links each island to the plant’s Modbus Plus backbone. Replacing the whole network would cost far more than maintaining the existing one.

A packaging line offers another example. High-speed conveyors and diverters need fast, deterministic I/O updates. Modbus Plus delivers that performance, and the STBNMP2212 keeps the island connected. As long as spare modules are available, the line stays productive.

Replacement and Upgrade Paths

Since Schneider has discontinued the STBNMP2212, you have two realistic options.

Option 1: Source spare STBNMP2212 modules. This keeps your current architecture intact. No rewiring, no new configuration, no downtime for migration. The trade-off is limited supply. Buyers should verify stock and condition before committing.

Option 2: Migrate to the Modicon X80 range. Schneider positions X80 as the successor. Migration means new hardware, new configuration, and possibly new network design. It also brings longer-term support and modern features. Plan this path carefully to avoid production interruptions.

For many plants, the smart move is a hybrid approach. Keep spare STBNMP2212 units on the shelf for immediate needs, while planning a staged migration to Modicon X80 over the next budget cycle.

Installation and Setup Notes

Mount the STBNMP2212 inside a control cabinet that respects the IP20 rating. Keep the 24V DC supply clean and within specification. Connect the Modbus Plus network to the 9-pin SUB-D (DB-9S) port.

Before powering up, confirm the island’s I/O module count does not exceed 32. Check that the network address is unique on the Modbus Plus segment. Follow Schneider’s original installation documentation for wiring and grounding details.

Maintenance and Reliability

Inspect the module periodically for loose connections, dust buildup, and signs of overheating. The IP20 rating means the cabinet environment matters. Keep filters clean and airflow unobstructed.

Because the module is discontinued, reliability planning should include spare inventory. A single failed NIM can stop an entire island. Keeping one or two spares on hand is cheap insurance compared to emergency sourcing.

Compatibility and Integration

The STBNMP2212 works within the Advantys STB ecosystem. It communicates over Modbus Plus and supports up to 32 addressable I/O modules. It does not support other protocols. If your network uses a different protocol, this module is not the right fit.

For plants already on Modbus Plus, integration is straightforward. The module slots into the island’s head position and connects to the existing network. No protocol conversion is required.

What to Verify Before You Buy

Ask these questions before purchasing a STBNMP2212:

• Is the module new, refurbished, or pulled from service?
• Does it include the original packaging and documentation?
• What is the return policy if the module fails?
• Is the Modbus Plus network still active in your plant?
• Do you have a migration timeline to Modicon X80?

SpareTechPLC specializes in industrial automation parts and can help you verify availability, condition, and upgrade options. Contact them before placing an order to confirm current stock and lifecycle status.

Frequently Asked Questions

Is the STBNMP2212 still available?

Schneider has discontinued this module and superseded it with the Modicon X80 range. Availability depends on secondary market stock. Contact SpareTechPLC to check current inventory.

Can I use the STBNMP2212 with a different protocol?

No. The module supports Modbus Plus only. It has a 9-pin SUB-D (DB-9S) port designed for that network.

How many I/O modules can one STBNMP2212 handle?

It addresses up to 32 I/O modules per island. Exceeding that limit requires additional islands or a different architecture.

What should I do if my STBNMP2212 fails?

Replace it with a spare unit if available. If not, consider migrating to the Modicon X80 range. Plan the migration carefully to avoid production downtime.

Does the STBNMP2212 work outside a control cabinet?

No. Its IP20 rating requires installation inside a protected enclosure. Keep it away from dust, moisture, and extreme temperatures.
