Product Overview

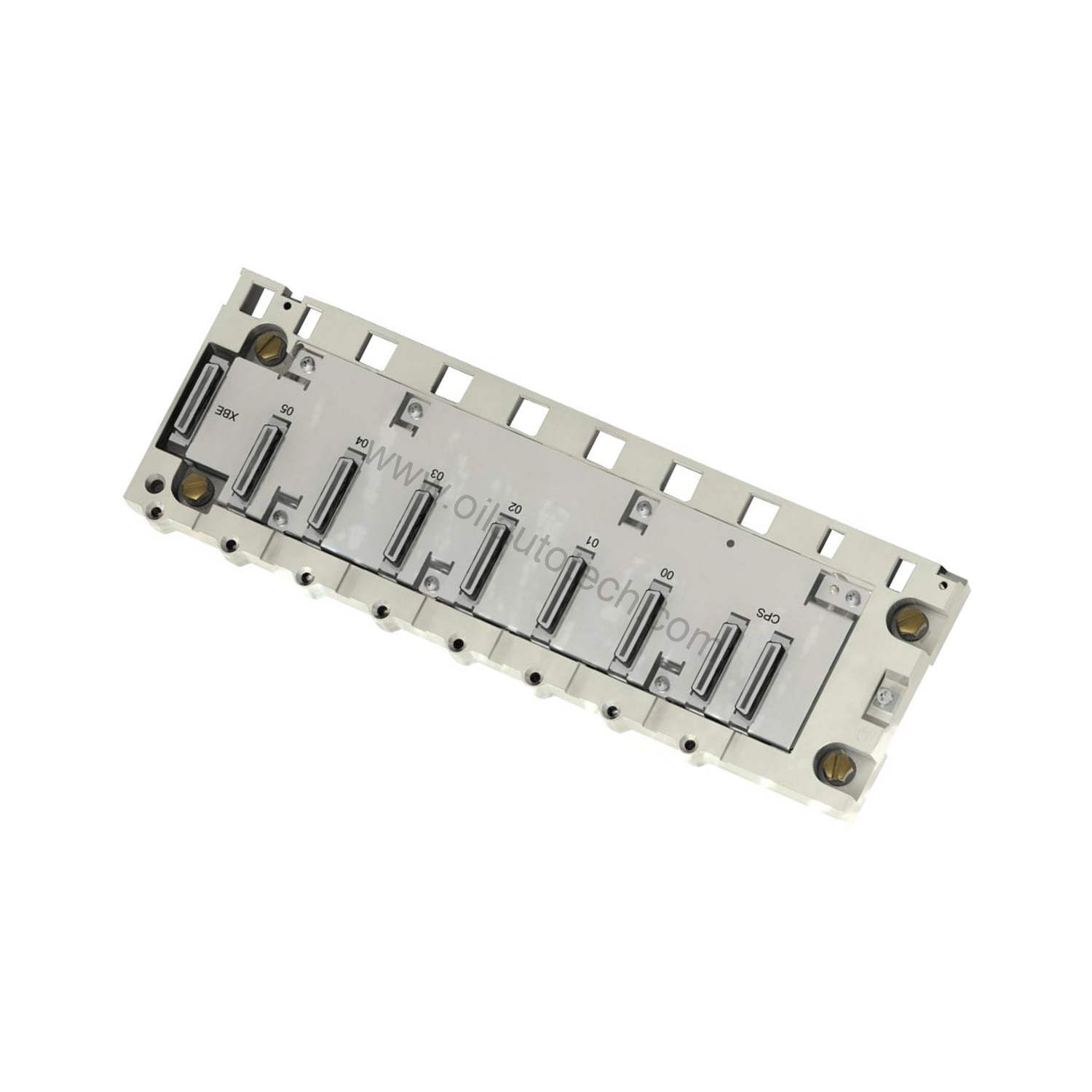

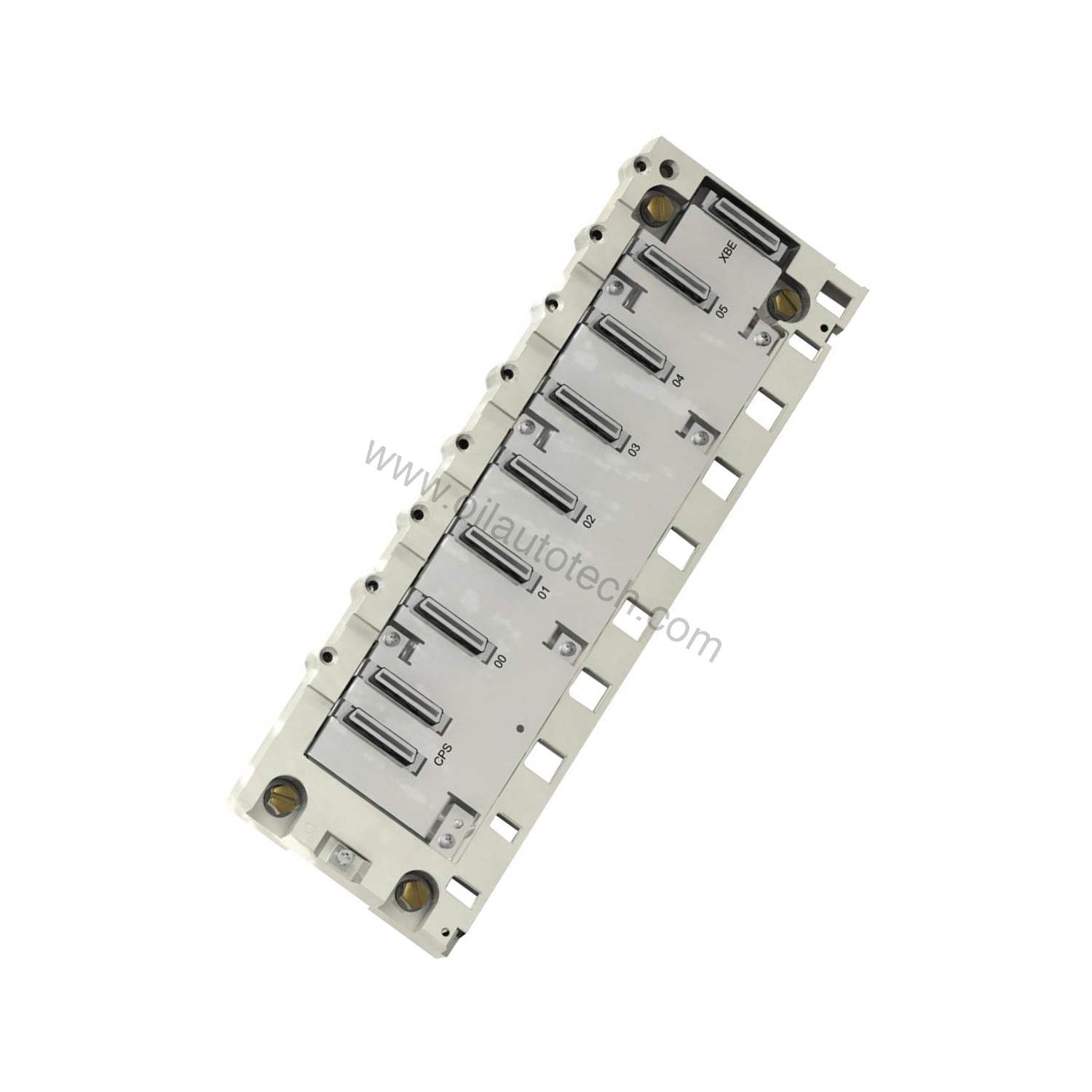

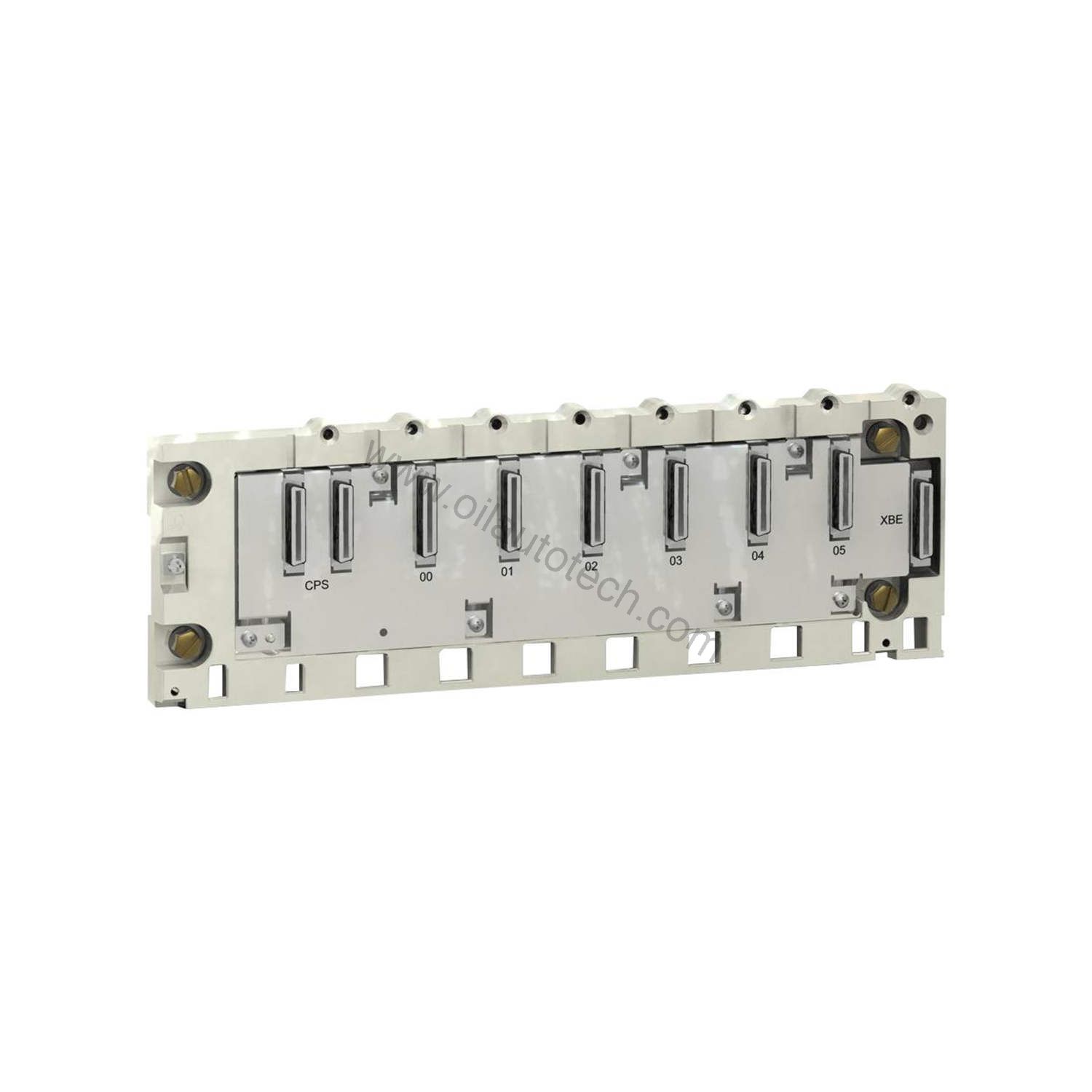

Downtime on a Modicon M340 or M580 platform often traces back to rack connectivity. The Schneider Electric BMXXBE2005 solves that problem. This enhanced X-bus expansion module links multiple racks so your control system scales without compromising data integrity. As part of the Modicon X80 series, it shares a common I/O platform across M340 and M580 controllers. That shared design simplifies spares planning and reduces long-term inventory costs.
Technical Specifications
Understanding the core parameters helps you plan a reliable installation. The BMXXBE2005 occupies a single slot in the right-end XBE position. Its compact footprint of 100 × 28 × 93 mm and weight of 0.12 kg make it easy to fit into dense cabinets. The module operates between 0 °C and +60 °C, so it suits most industrial control rooms. Storage tolerates -25 °C to +70 °C, which supports global shipping and warehousing. A relative humidity range of 5% to 95% (non-condensing) covers humid plant environments. The IP20 protection rating means the module requires a clean, enclosed panel.
Key Parameters at a Glance
| Specification | Value |
|---|---|
| Model | BMXXBE2005 |
| Brand | Schneider Electric |
| Series | Modicon X80 |
| Type | X-bus expansion module (enhanced) |
| Function | X-bus connection between multiple racks (enhanced capability) |
| Installation | Right-end XBE slot |
| Operating temperature | 0 °C to +60 °C |
| Storage temperature | -25 °C to +70 °C |
| Relative humidity | 5% to 95% (non-condensing) |
| Protection rating | IP20 |
| Dimensions (H×W×D) | 100 × 28 × 93 mm |
| Weight | 0.12 kg |
| Slot occupation | 1 (XBE slot) |
| Lifecycle | Active (shared I/O platform for M340 and M580) |
Replacement and Upgrade Guide
If you run an older Modicon rack system, the BMXXBE2005 offers a clean upgrade path. The enhanced X-bus capability improves communication between racks compared with earlier expansion methods. Because the module is active and shared across M340 and M580 platforms, you can standardize on one part number. That reduces the risk of mismatched spares during emergency repairs. When replacing a failed expansion module, always verify the right-end XBE slot is free and undamaged. Check that the new module seats fully before powering the rack. This simple step prevents intermittent faults that can waste hours of troubleshooting.
Compatibility and Integration
The BMXXBE2005 integrates directly with Modicon M340 and M580 controllers. It uses the X-bus to connect multiple racks, extending your I/O capacity without adding separate communication cards. This design keeps cabinet wiring simple and reduces component count. If your system already uses Modicon X80 I/O, the module fits naturally into the existing architecture. Always confirm your rack configuration supports the right-end XBE slot before ordering. For mixed installations, document which racks connect through the BMXXBE2005 to speed future maintenance.
Installation and Setup
Mounting the module is straightforward. Slide it into the right-end XBE slot until it clicks into place. The single-slot occupation keeps cabinet space efficient. Because the module relies on the X-bus, no external cabling is required between racks beyond the standard X-bus connection. Maintain the specified 0 °C to +60 °C operating range. Avoid condensing humidity above 95%. The IP20 rating means the panel must protect against dust and water ingress. After installation, verify rack communication through your controller’s diagnostic tools. Follow Schneider Electric’s official installation manual for all wiring and configuration steps.
Maintenance and Reliability
The BMXXBE2005 has no moving parts, so wear is minimal. Inspect the module periodically for loose seating or dust buildup. Keep the cabinet within the rated temperature and humidity range to maximize service life. Because the module is active, spare parts remain available. That protects your investment and reduces the risk of forced upgrades. For safety-related systems, follow your plant’s lockout procedures and the manufacturer’s safety manual. Do not disassemble or modify the module. General cleaning with a dry, soft cloth is acceptable only when power is removed and plant rules allow.
Selection Guide
Before buying, confirm your rack uses the Modicon X80 platform and has a free right-end XBE slot. Verify the operating temperature range matches your environment. Check that your controller is an M340 or M580 series. If you need multiple racks, order one BMXXBE2005 per expansion connection. SpareTechPLC supplies this module and can help you confirm compatibility. Contact SpareTechPLC for current availability and lead times. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
What does the BMXXBE2005 do?
It connects multiple Modicon X80 racks through the enhanced X-bus, extending I/O capacity.
Which controllers work with this module?
It supports Modicon M340 and M580 controllers that use the X80 platform.
Where does the module install?
It fits into the right-end XBE slot and occupies one slot position.
What is the operating temperature range?
The module operates from 0 °C to +60 °C and stores from -25 °C to +70 °C.
Is the BMXXBE2005 still active?
Yes, the lifecycle status is active, with a shared I/O platform for M340 and M580.
