When One Axis Stalls, the Whole Line Waits

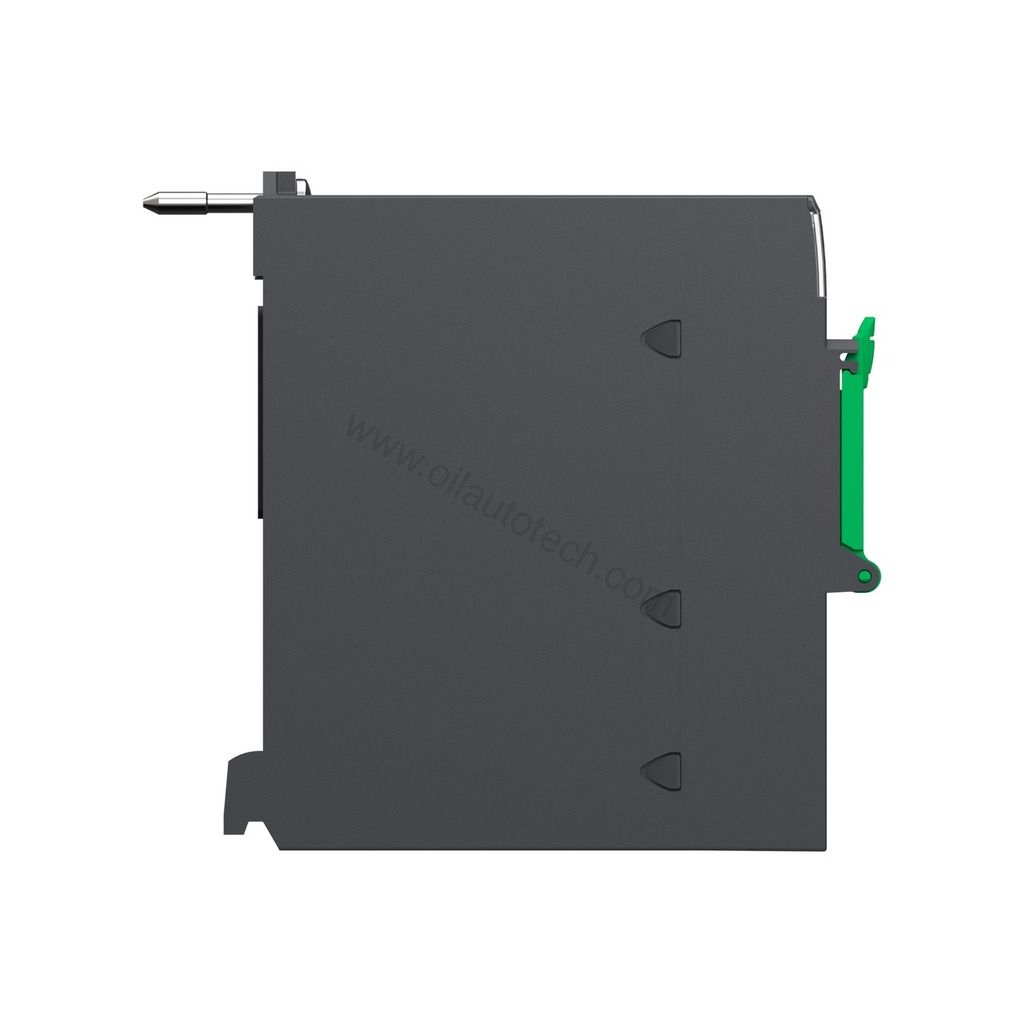

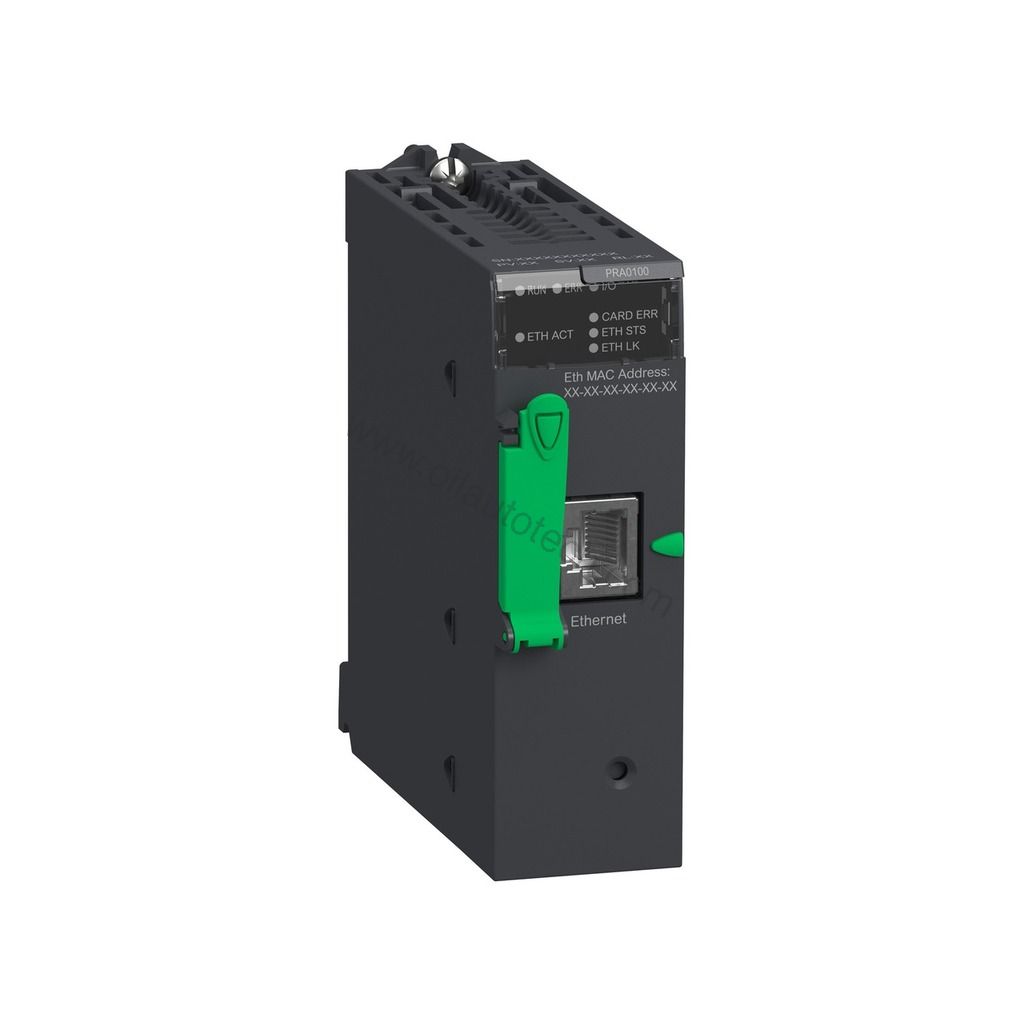

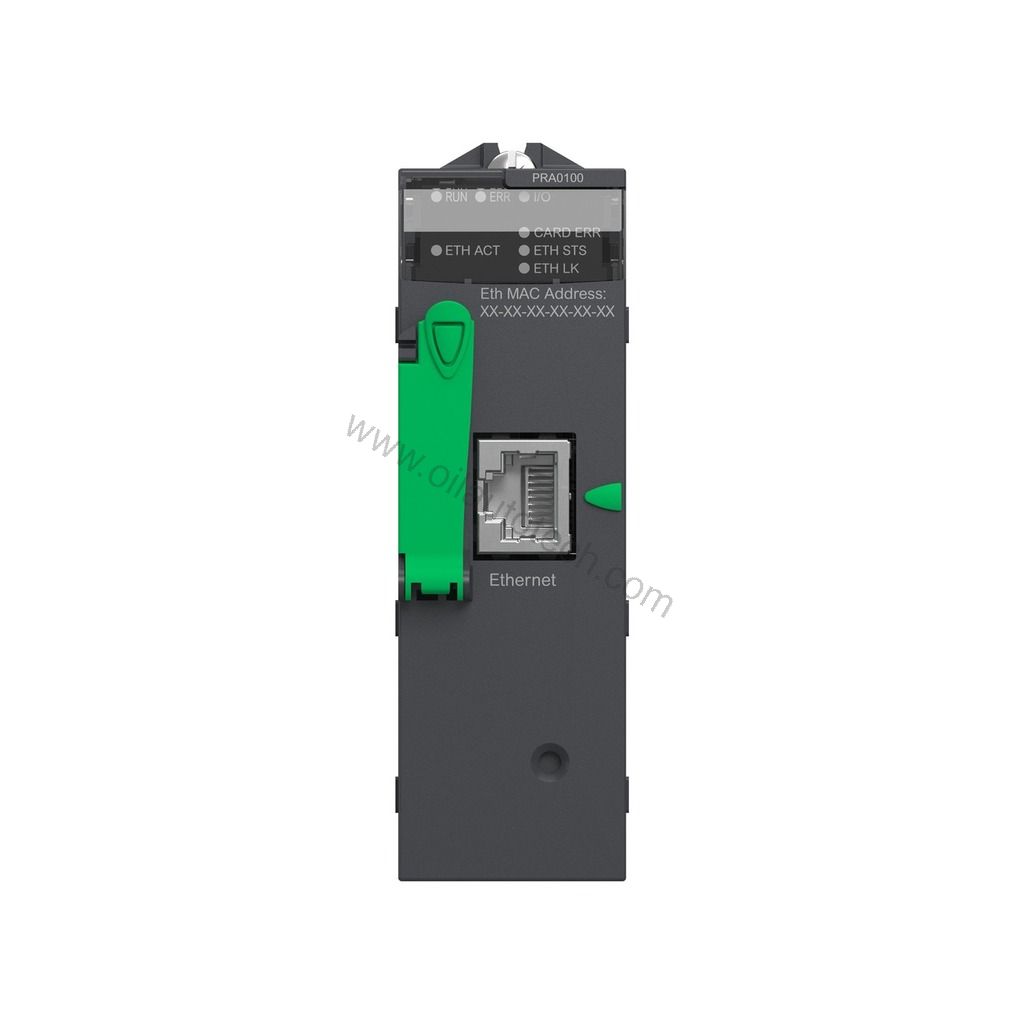

A single mispositioned axis can halt an entire packaging or assembly line. Engineers often overspend on multi-axis controllers when one precise channel solves the problem. The BMXPRA0100 from Schneider Electric fills that gap as a dedicated 1-axis positioning control module in the Modicon X80 series.
It outputs pulse and direction signals at up to 200 kHz, giving drives the resolution needed for accurate motion without the cost of a larger controller.
Key Parameters That Drive Real Performance
200 kHz Pulse Output
At 200 kHz maximum pulse frequency, this module commands stepper and servo drives with fine step resolution. Faster pulse trains mean smoother acceleration profiles and shorter positioning cycles on high-throughput machinery.
Efficient 24 V DC Backplane Power
Drawing 2.9 W and 120 mA at 24 V DC through the backplane, the module adds minimal load to the rack supply. That headroom matters when a cabinet already runs close to its power budget.
Compact Single-Slot Footprint
Measuring 100 × 28 × 93 mm and weighing 0.18 kg, it occupies just one slot. Retrofits and dense racks gain space for additional I/O without cabinet redesign.
IP20 Environmental Envelope
An IP20 rating and 0 °C to +60 °C operating range suit clean control cabinets. Storage from -25 °C to +70 °C and 5% to 95% non-condensing humidity cover typical warehouse and plant conditions.
Where This Module Earns Its Place
Packaging and Labeling Lines
A single indexing axis on a label applicator needs repeatable stop positions. The pulse/direction output drives the axis directly, and the 200 kHz ceiling keeps cycle times short.
Replacement and Upgrade Projects
Plants modernizing legacy motion control often need one reliable axis, not a full platform change. Because the BMXPRA0100 is active and shares the M340 and M580 I/O platform, it slots into existing architectures with minimal re-engineering.
Test and Inspection Fixtures
Positioning a probe or camera on one axis calls for precise, repeatable moves. This module delivers that control while keeping the bill of materials lean.
Fitting It Into Your Control Architecture
The module mounts in a Modicon X80 rack and communicates through the backplane, so no separate field wiring for power is required. It pairs naturally with M340 and M580 controllers, which share the same I/O platform. Before installation, confirm rack slot assignment, verify the 24 V DC backplane supply has adequate margin for the 120 mA bus current, and follow Schneider Electric’s published installation guidance for the X80 platform. Keep cabinets sealed to preserve the IP20 protection level.
Reliability and Long-Term Value
Motion modules rarely fail suddenly; they degrade through heat, contamination, and loose connections. Schedule periodic cabinet inspections, check ventilation, and verify terminal torque during planned outages. The low 2.9 W dissipation reduces internal cabinet heating, which extends the life of nearby components. With an active lifecycle verified in September 2026, this module protects your investment through long-term availability rather than forcing premature platform migration.
What to Verify Before You Buy
Confirm your drive accepts pulse and direction commands and that one axis meets your motion needs. Check that your rack has a free slot and that the backplane supply can absorb the additional 120 mA. Buyers sourcing discontinued or hard-to-find automation parts should confirm current stock, lead time, and lifecycle status with SpareTechPLC before ordering. Pair the module with the correct X80 rack and terminal accessories specified for your controller platform.
Common Questions From Integrators
Engineers often ask whether one axis is enough. For single-indexing, labeling, or probe-positioning tasks, yes. They also ask about controller compatibility. The shared M340 and M580 I/O platform keeps integration straightforward. Finally, verify pulse frequency requirements against your drive’s maximum input rate; the 200 kHz output covers most industrial stepper and servo drives.
